Key Features:

• Input voltage range: 120-277V AC 50Hz
• Constant current LED driver inbuilt
• Housing & Faceplate: powder coated Aluminium

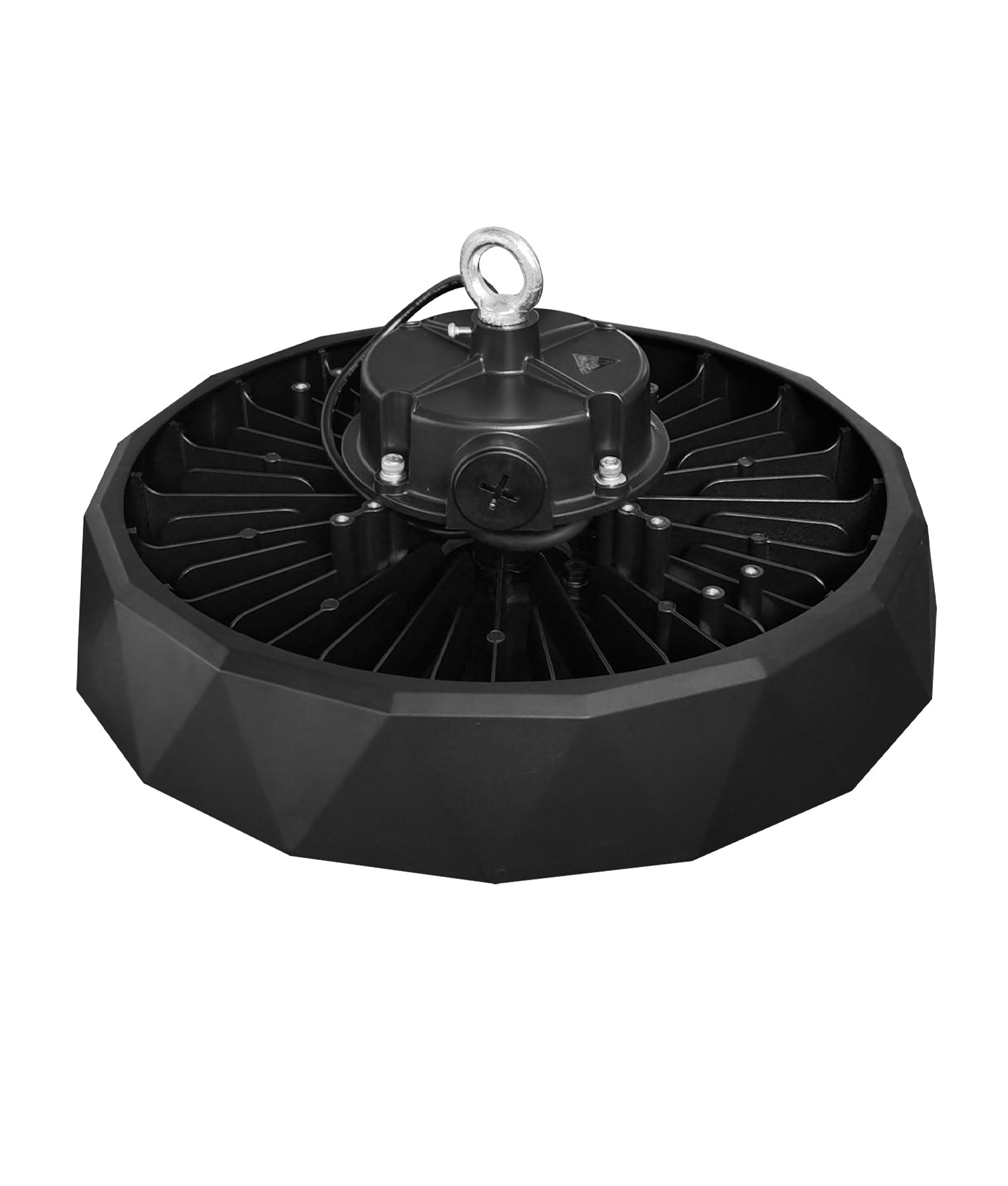

• Heatsink: Aluminium
• Diffuser: Clear PC
• LED chips: 2835 LED
• Tri-CCT (3000K/ 4000K / 5700K) in one fitting
• Power factor: 0.95
• Flex & plug: 1.2m
• Ambient temperature: -20 to 50°C
• Not suitable for dimming
• Suitable for 2-way switching
• Suitable for use with motion & microwave sensors

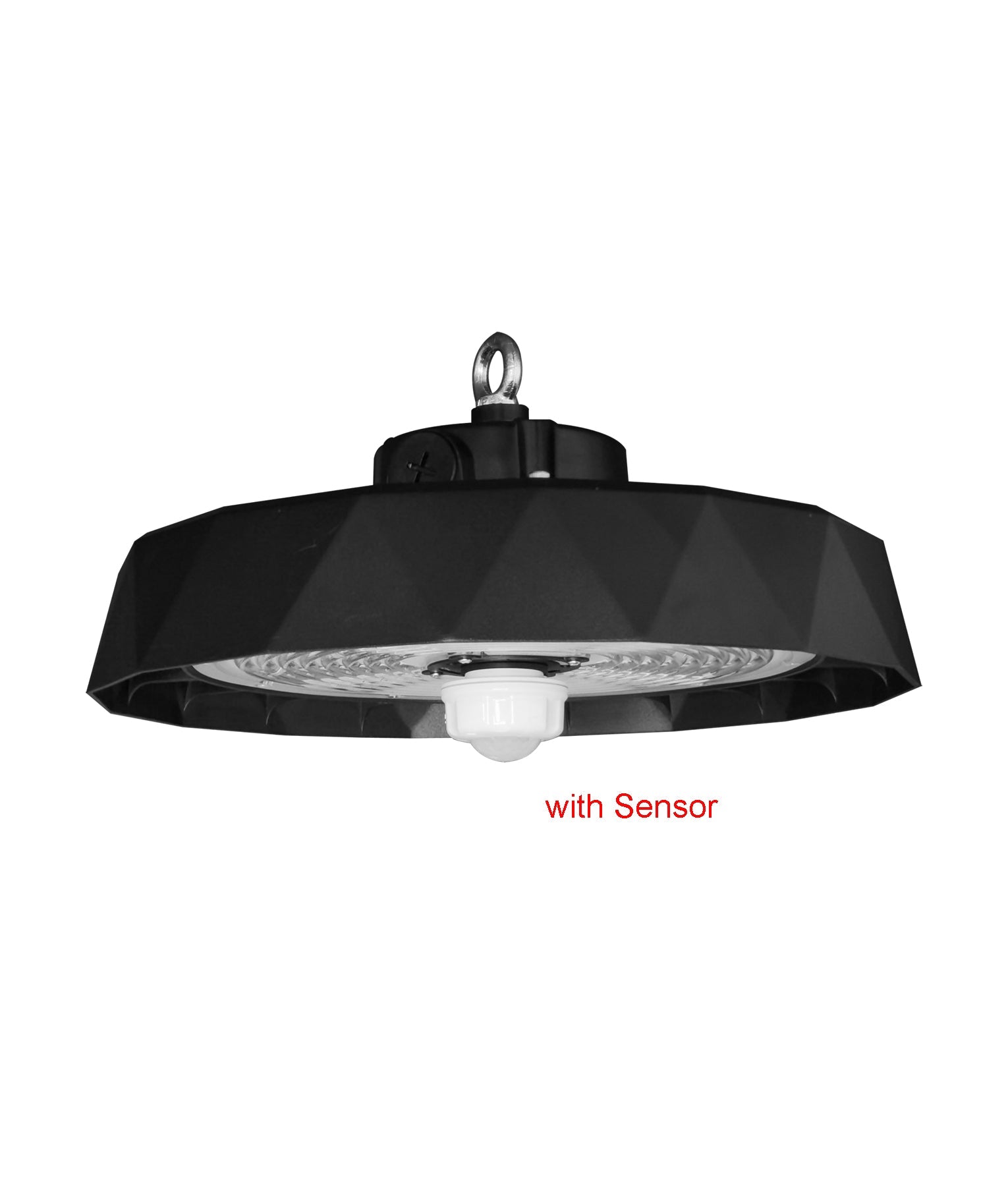

• Plug in PIR sensor for HIBTRI2 available (sold separately)
• IP rating: IP65
• Warranty: 5 year replacement warranty

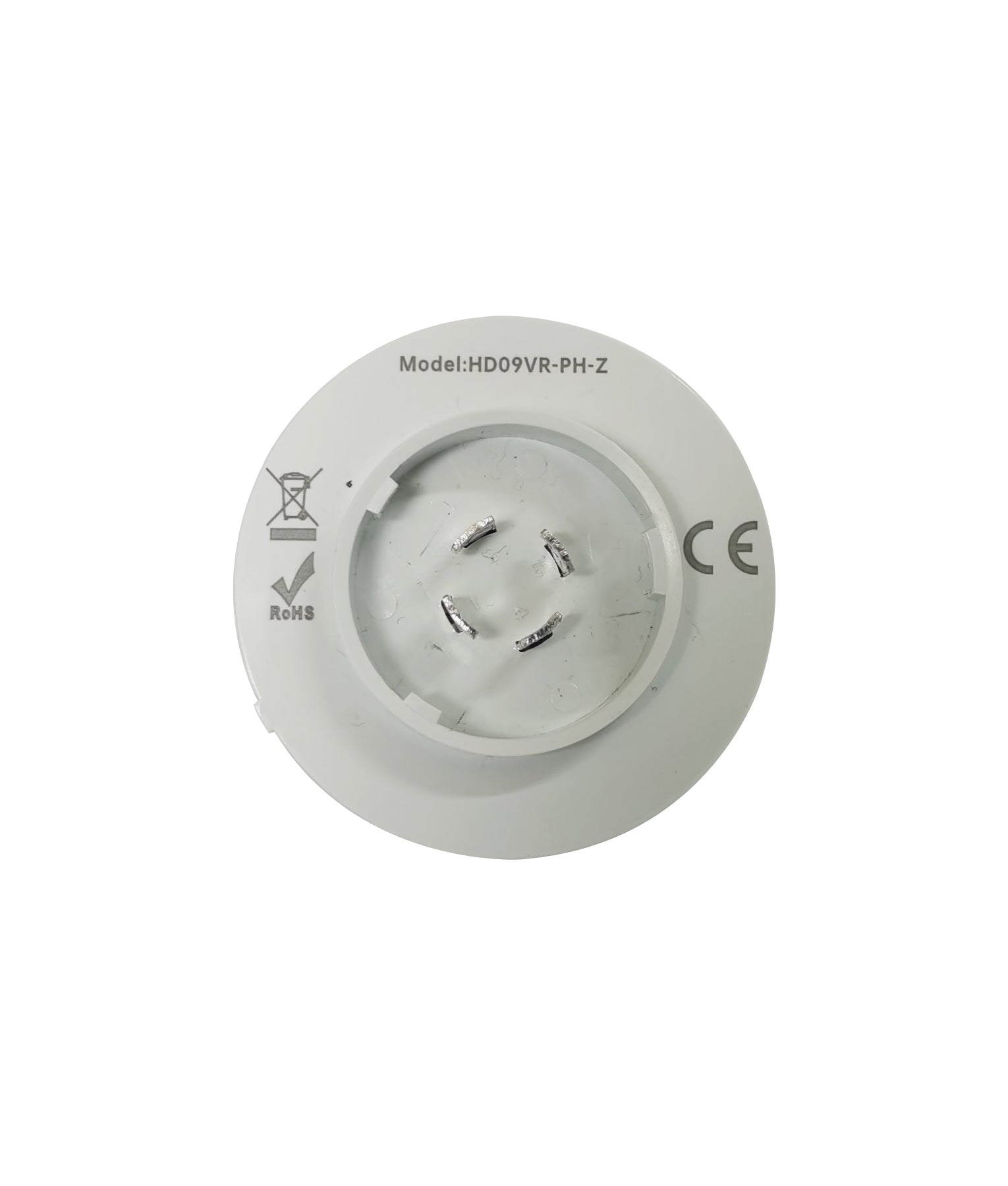

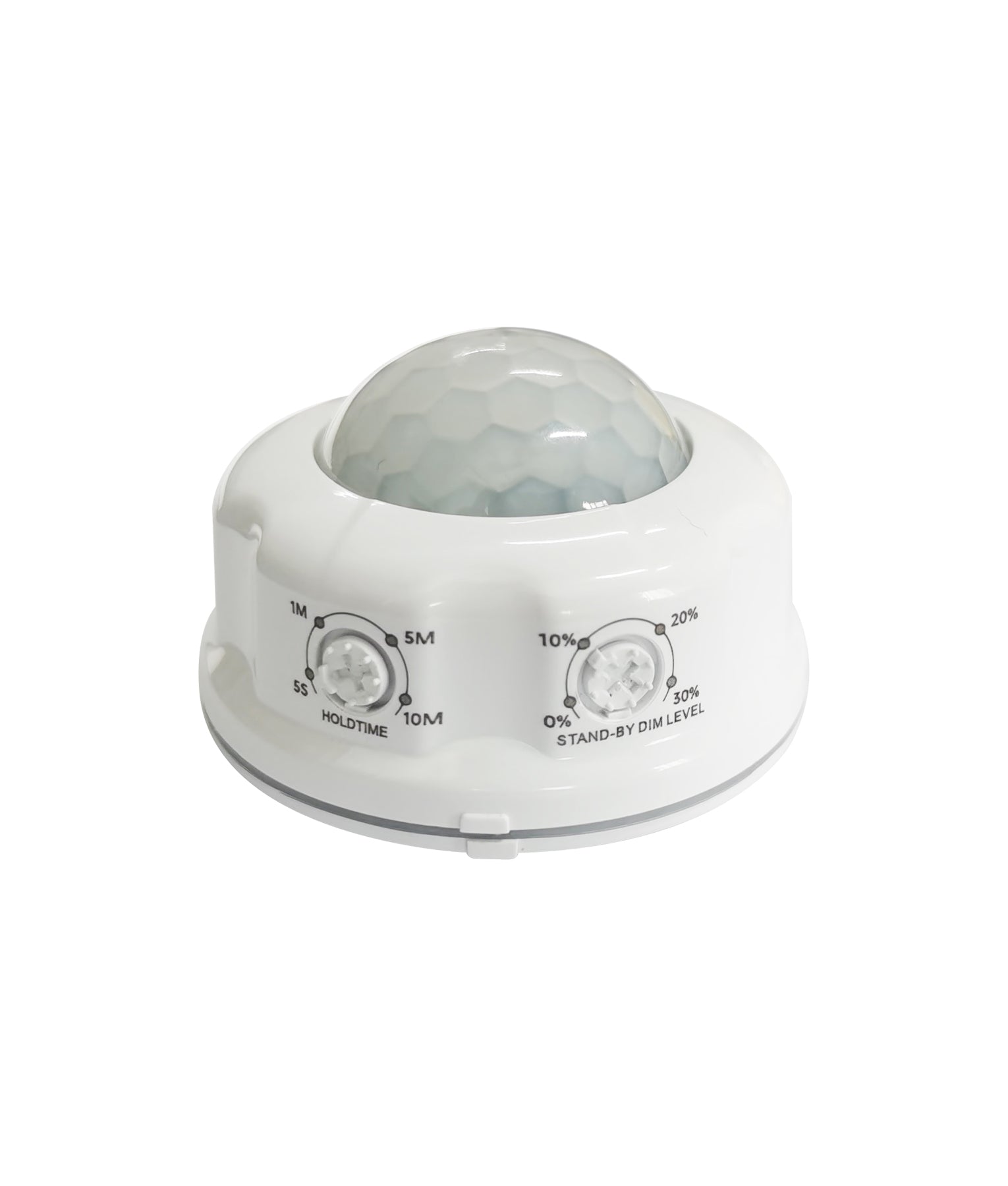

PIR Sensor:

• Wattage: <0.5W
• Installation height: recommended up to 12m
• Detection angle: 120 degree
• Time delay: 5s / 1min / 5min / 10min
• Ambient temperature: -20 to 60 degree
• Stand by dim level setup: 0%, 10%, 20%, 30%
• UV resistant: Yes
• Ambient light: day and night
• IP rating: IP65
• Warranty: 3 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

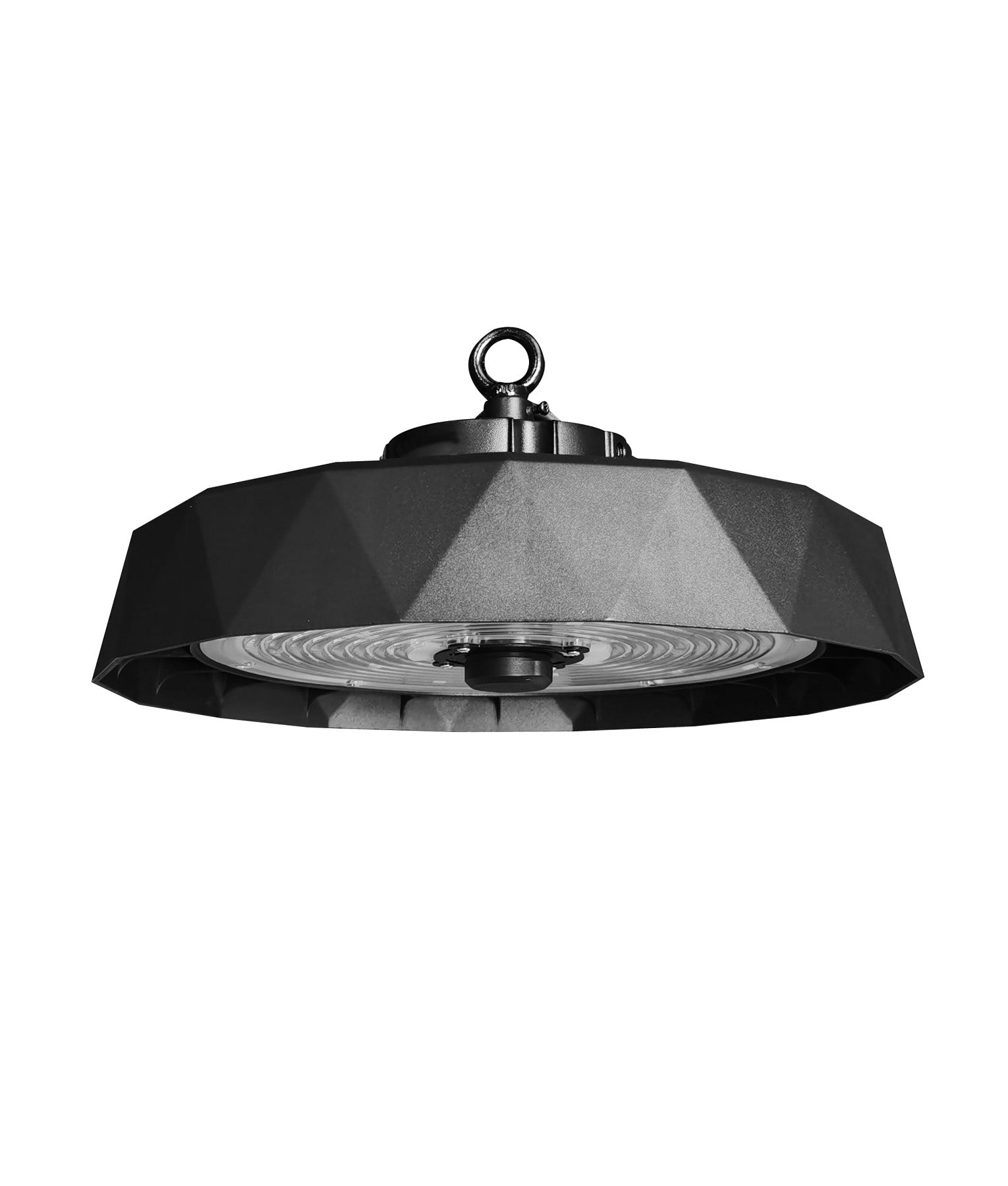

Part No: HIBTRI2
Description: HI BAY LED 100/150/200W RND TRI 90D IP65 3K/4K/5.7K 17500/25500/32000Lm Flex & Plug 1.2m Tri Power Plug in PIR Sensor Option UFO WTY 5YR
Colour: Black
Material: Housing & Faceplate: powder coated aluminium; Heatsink: Aluminium; Diffuser: clear PC
Input Voltage: 120-277V AC
Wattage: 100W / 150W / 200W
Kelvin: 3000K / 4000K / 5700K
Lumens: 16500lm, 23250lm, 30000lm / 17500lm, 25500lm, 32000lm / 17000lm, 24000lm, 31000lm
Beam Angle: 90 degree
Power Factor: 0.95
CRI: >70

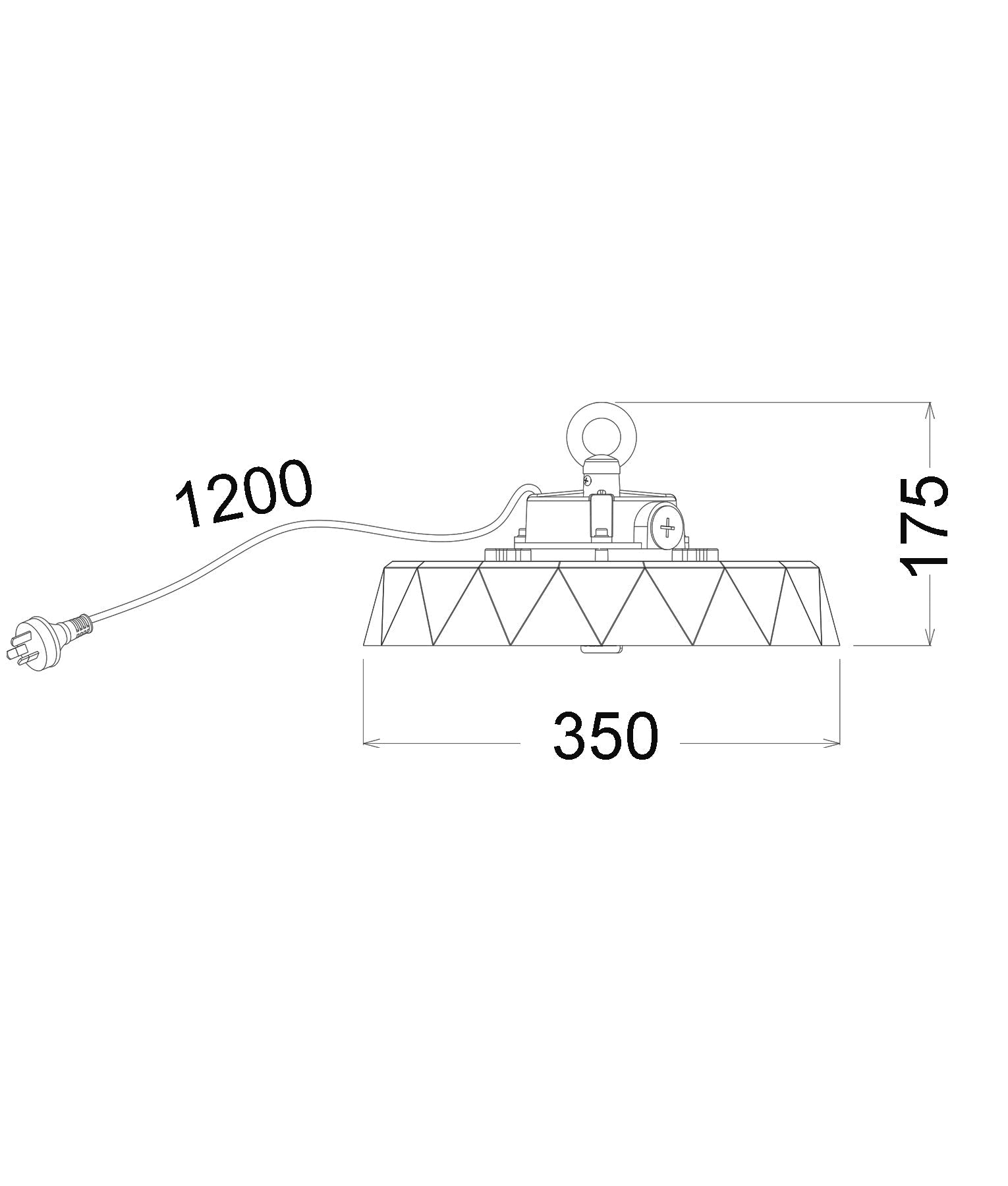

Diameter / Width: 350mm
Height: 175mm
Box Size: 37x37x14.5cm
Box Weight: 3.6kg
Carton Qty: 1/1

Brochure: HIBTRI2 (722.04 KB)
Technical Spec: HIBTRI2 (311.4 KB)
Technical Spec: HIBSENSOR (322.32 KB)
