Key Features:

• Input voltage range: 100-240V AC 50/60Hz
• Inbuilt driver output range: 18-42V
• Driver input current: 0.053A
• Driver output current: 300mA
• Inrush current: 1.2A
• Housing: powder coated aluminium

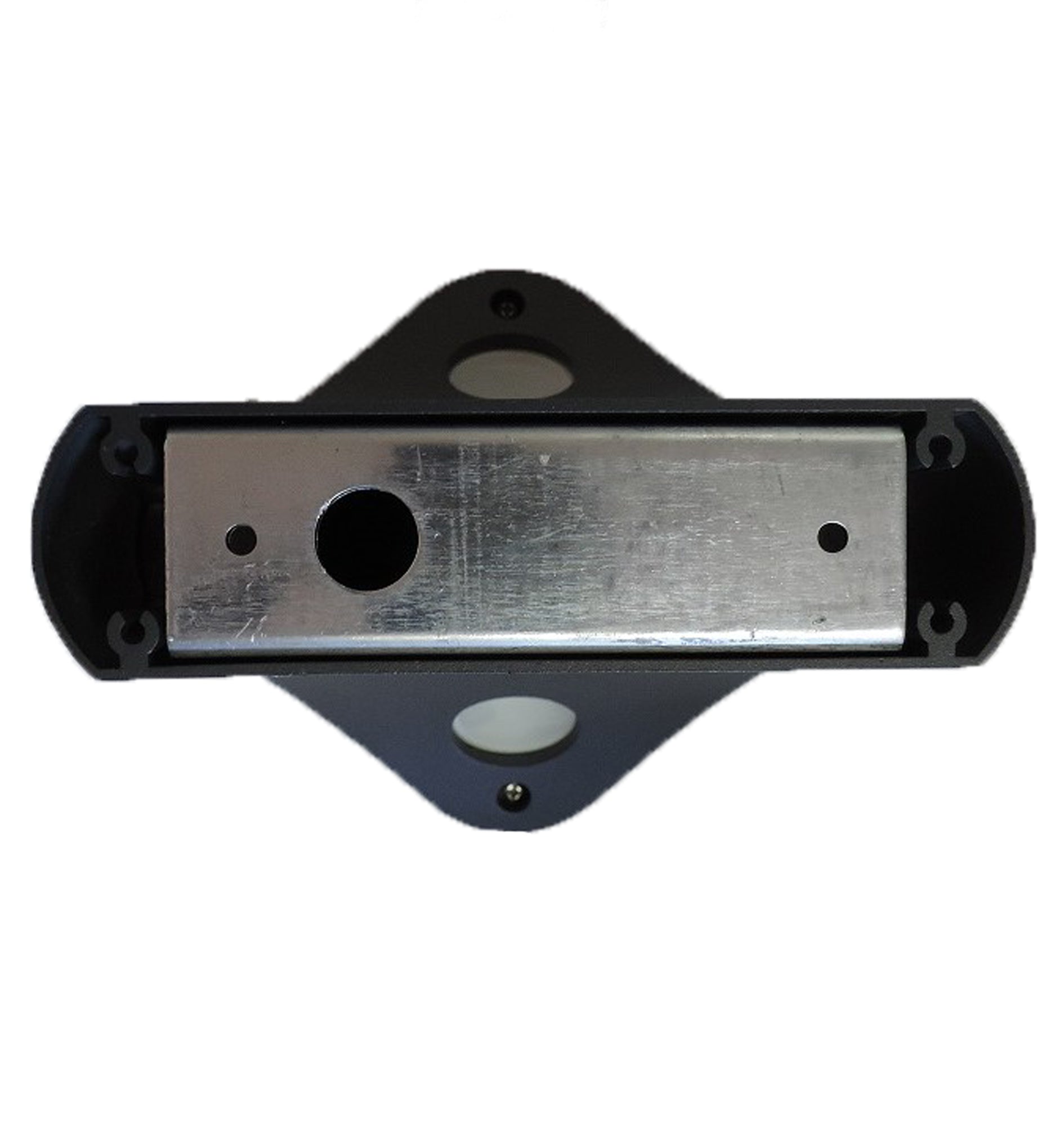

• Mounting bracket: aluminium
• LED chip: 2pcs 5050
• Power factor: >0.5
• Ambient Temp: -20 to 50°C
• Suitable for 2-way switching
• Suitable for use with PIR or Microwave sensors
• IP rating: IP65
• Warranty: All Clearance items have revised shorter warranty periods differing from the package print. CONDITIONS APPLY. Please contact our sales team for information.


*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.

Part No: SHU1

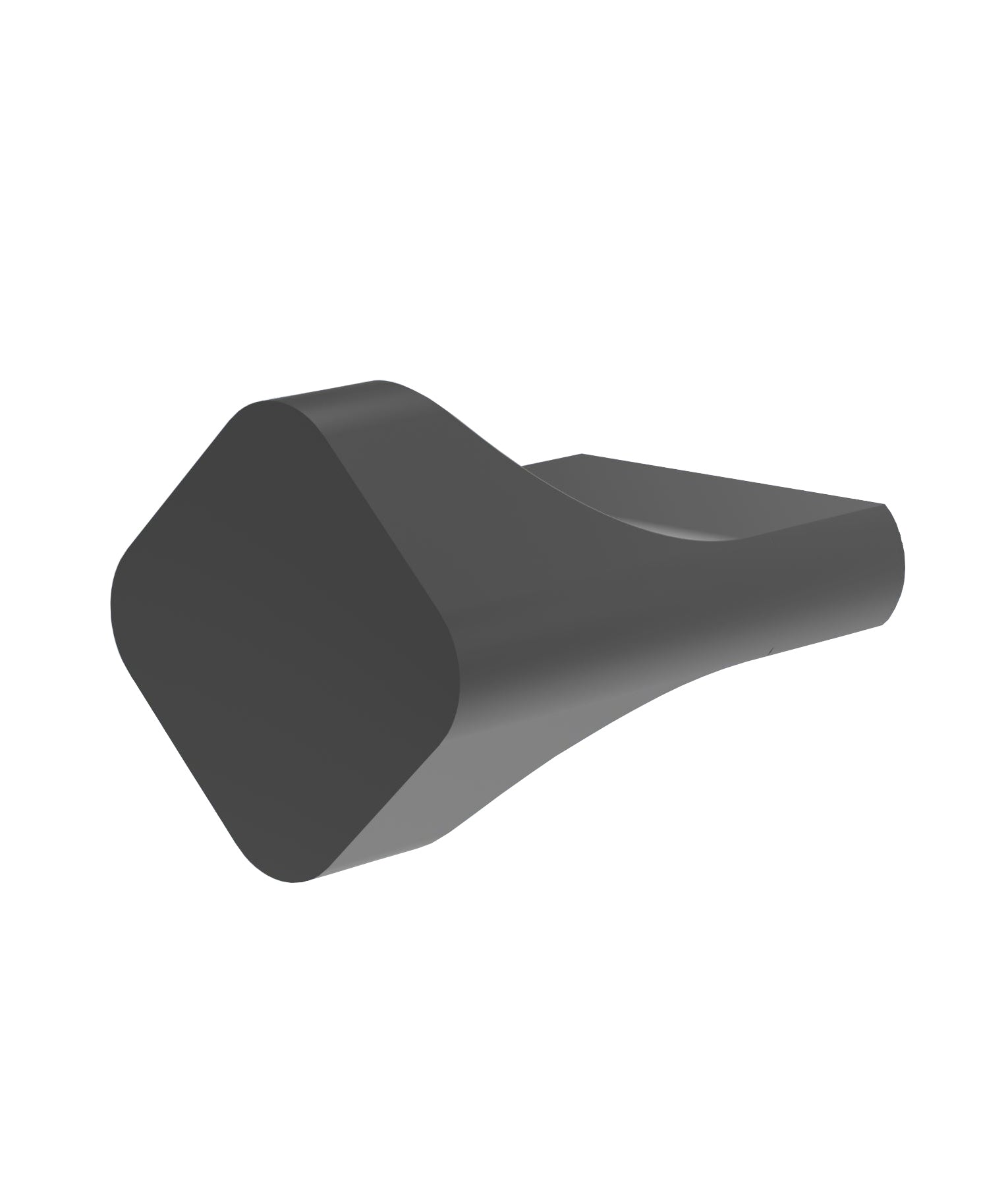

Description: WALL S/M 11W SQ Dark Grey 3K IP65 2 Diff 540 Lm
Colour: Housing: Dark Grey;
Material: Housing: Aluminium; Mount: Aluminium;
Input Voltage: 100-240V AC
Wattage: 11W
Kelvin: 3000K
Lumens: 540lm
Beam Angle: 2x64.5 Degree
Power Factor: >0.5
CRI: >80

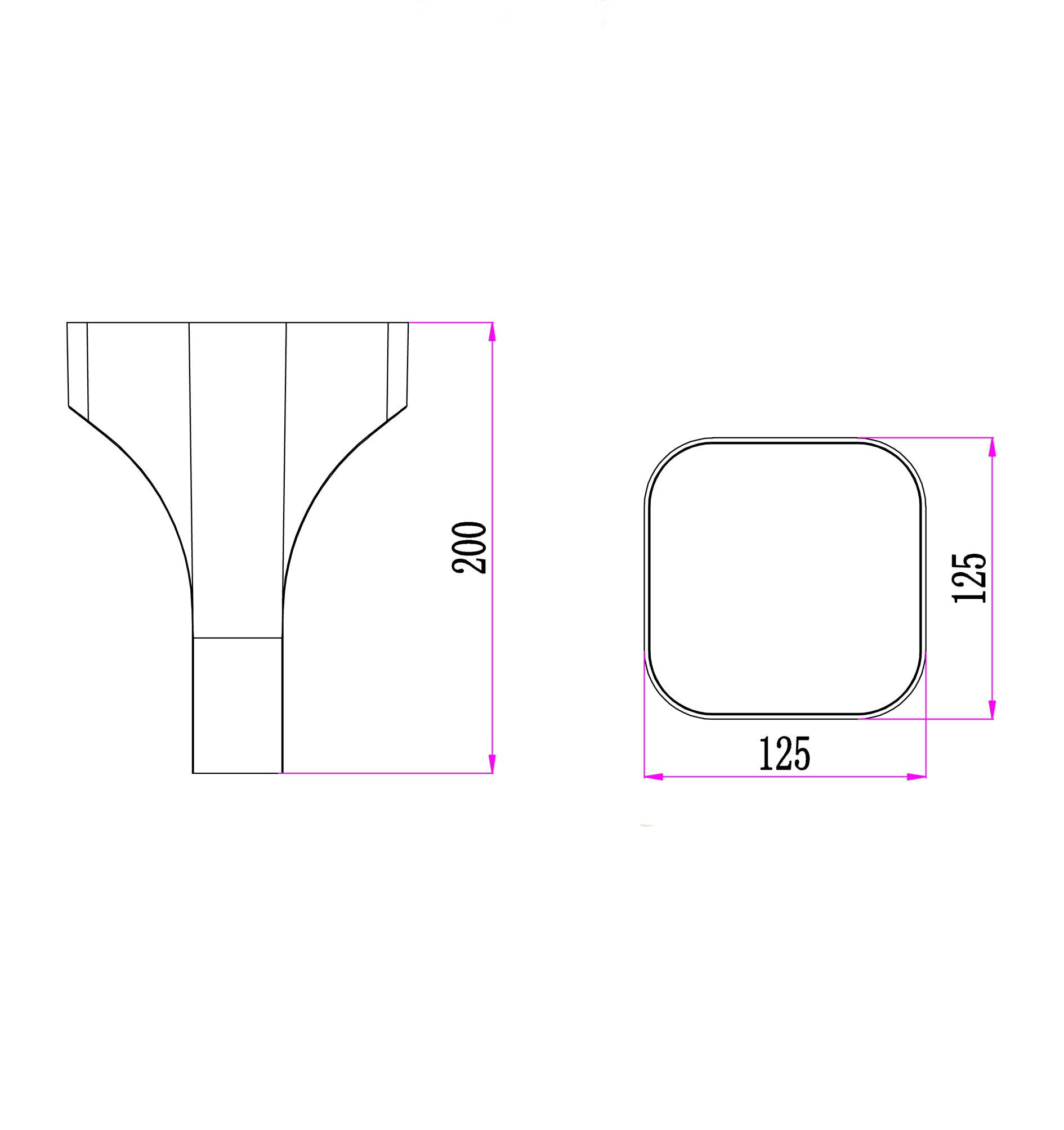

Diameter / Width: 125mm
Height: 200mm
Box Size: 21x14x14cm
Box Weight: 1.2kg

Brochure: SHU1-4 (469.25 KB)
Technical Spec: SHU1-4 (319.49 KB)
IES: SHU (9.34 KB)
