Key Features:

• Input voltage range: 220-240V AC 50/60Hz
• Onboard inbuilt driver
• Output voltage range: 225-245V
• Input current: 0.095A
• Output current: 0.095A
• Inrush current: 1.5A
• Housing: powder coated aluminium
• Diffuser: PC
• Bracket: PC
• LED chip: 25pcs 2835
• Power factor: >0.9
• Ambient Temp: -20 to 50°C
• Suitable for 2-way switching
• Suitable for use with PIR or Microwave sensors
• IP rating: IP65
• Warranty: 3 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.

Part No: ULAN1
Description: WALL S/M 20W SQ Dark Grey 3K IP65 Convex Opal Diff 980 Lm
Colour: Housing: Dark Grey;
Material: Diffuser: Polycarbonate; Housing: Aluminium; Mount: Polycarbonate;
Input Voltage: 220-240V AC
Wattage: 20W
Kelvin: 3000K
Lumens: 980lm
Beam Angle: 105.8 Degree
Power Factor: 0.9
CRI: 80

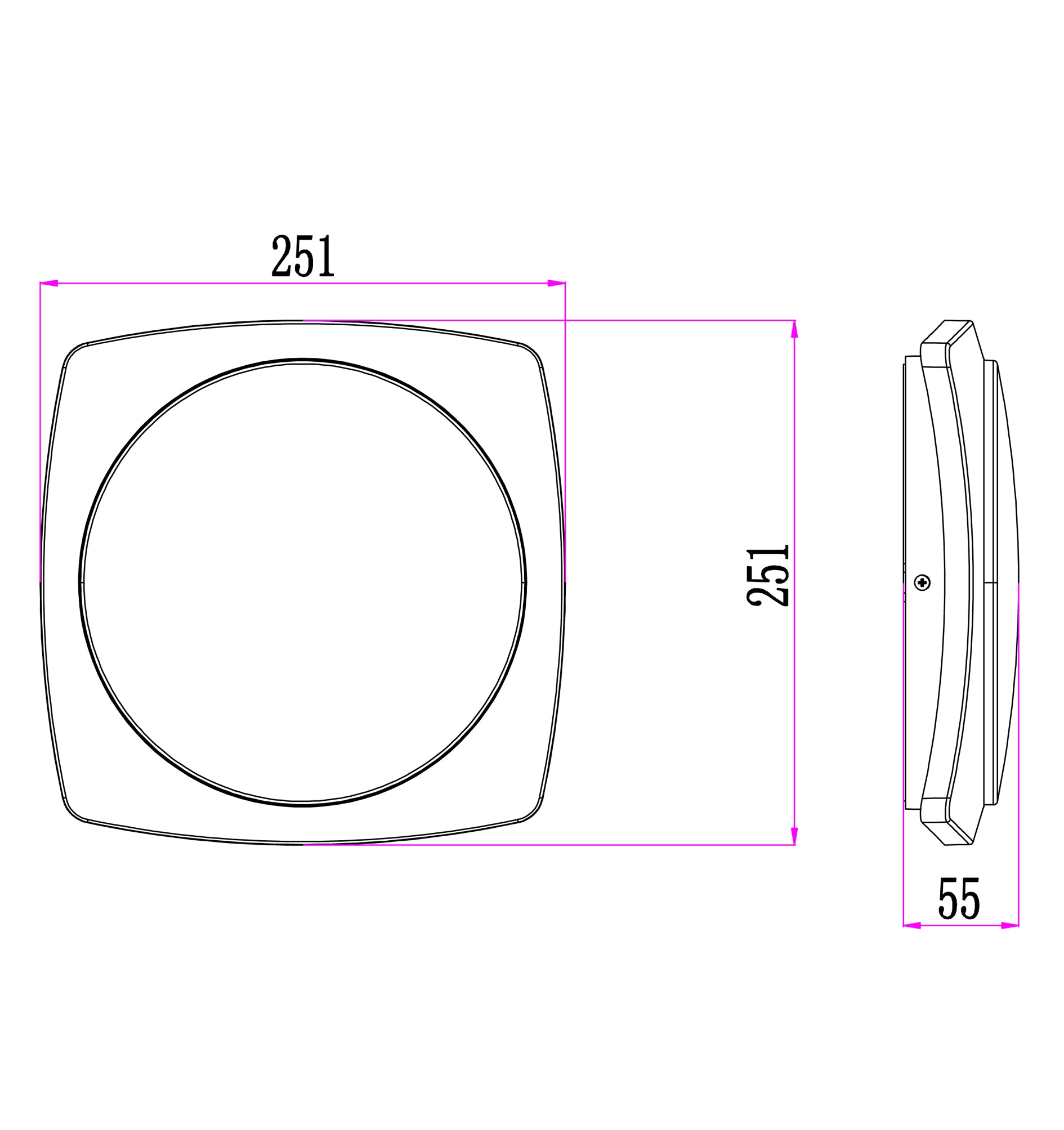

Diameter / Width: 251mm
Height: 55mm
Box Size: 26x26x7cm
Box Weight: 1.35kg

Brochure: ULAN1-2 (609.17 KB)
Technical Spec: ULAN1-2 (1.24 MB)
