Key Features:

• Interior LED surface mounted wall light
• Matt white curved up light
• Material: iron & aluminium white & acrylic
• 12V inbuilt constant current LED driver included
• Driver output voltage: 12-18V
• Driver input current: 0.11A
• Driver output current: 0.35A
• Power factor: 0.5
• Ambient Temp: -20 to 50°C
• Not suitable for dimming
• Suitable for 2-way switching
• Suitable for use with PIR & Microwave sensors
• IP rating: IP20
• Back plate: L 90 x W 60mm
• Mounting U bracket: 100x20mm, 25mm cable entry off to one side
• Warranty: 2 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)

Part No: PHOENIX
Description: WALL Int S/M 6W CURVED Uplight Matt Wh 3K FR Glass 395Lm
Colour: Fitting Trim: Matte White; Housing: Matte White; Mount: Matte White;
Material: Diffuser: Acrylic; Housing: Aluminium; Mount: Metal;
Input Voltage: 220-240V AC
Wattage: 6W
Kelvin: 3000K
Lumens: 395lm
Beam Angle: 120 Degree
Power Factor: 0.5
CRI: >80

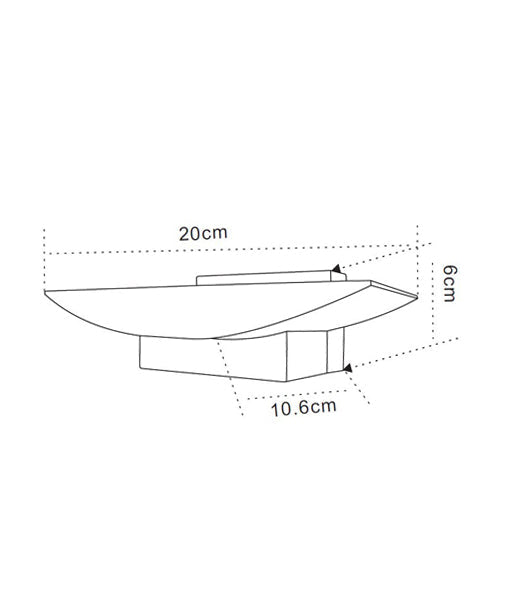

Diameter / Width: 200mm
Height: 60mm
Box Size: 24x12x7cm
Box Weight: 1kg
Carton Qty: 1/1

Brochure: PHOENIX (545.52 KB)
Technical Spec: PHOENIX (127.21 KB)
