Product Description
Key Features:
- Exterior Surface mounted up/down LED wall lights
- Input voltage range: 100-240V AC 50/60Hz
- Driver output voltage range: 18-42V
- Driver input current: 0.053A
- Driver output current: 300mA
- Inrush current: 1.2A
- Housing: powder coated aluminium
- Bracket: PC
- LED chip: 2pcs 5050
- Power factor: >0.5
- 2 stickers included which allow narrowing of beam angle at both or either end
- Beam angle: without sticker is 69.9° and with the sticker is 32.7°
- Ambient temperature: -20 to 50°C
- Suitable for 2-way switching
- Suitable for use with PIR or Microwave sensors
- IP rating: IP65
-
Warranty: All Clearance items have revised shorter warranty periods differing from the package print. CONDITIONS APPLY. Please contact our sales team for information.
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.
Part No: WIG2
Description: WALL S/M Up/Dn 11W WEDGE Wh 3K IP65 Alt Beam 550 Lm
Colour: Housing: White;
Material: Diffuser: Glass; Housing: Aluminium; Mount: Polycarbonate;
Input Voltage: 100-240V AC
Wattage: 11W
Kelvin: 3000K
Lumens: 550lm
Beam Angle: Without sticker: 69.9 degree; with sticker: 32.7 degree
Power Factor: 0.5
CRI: >80

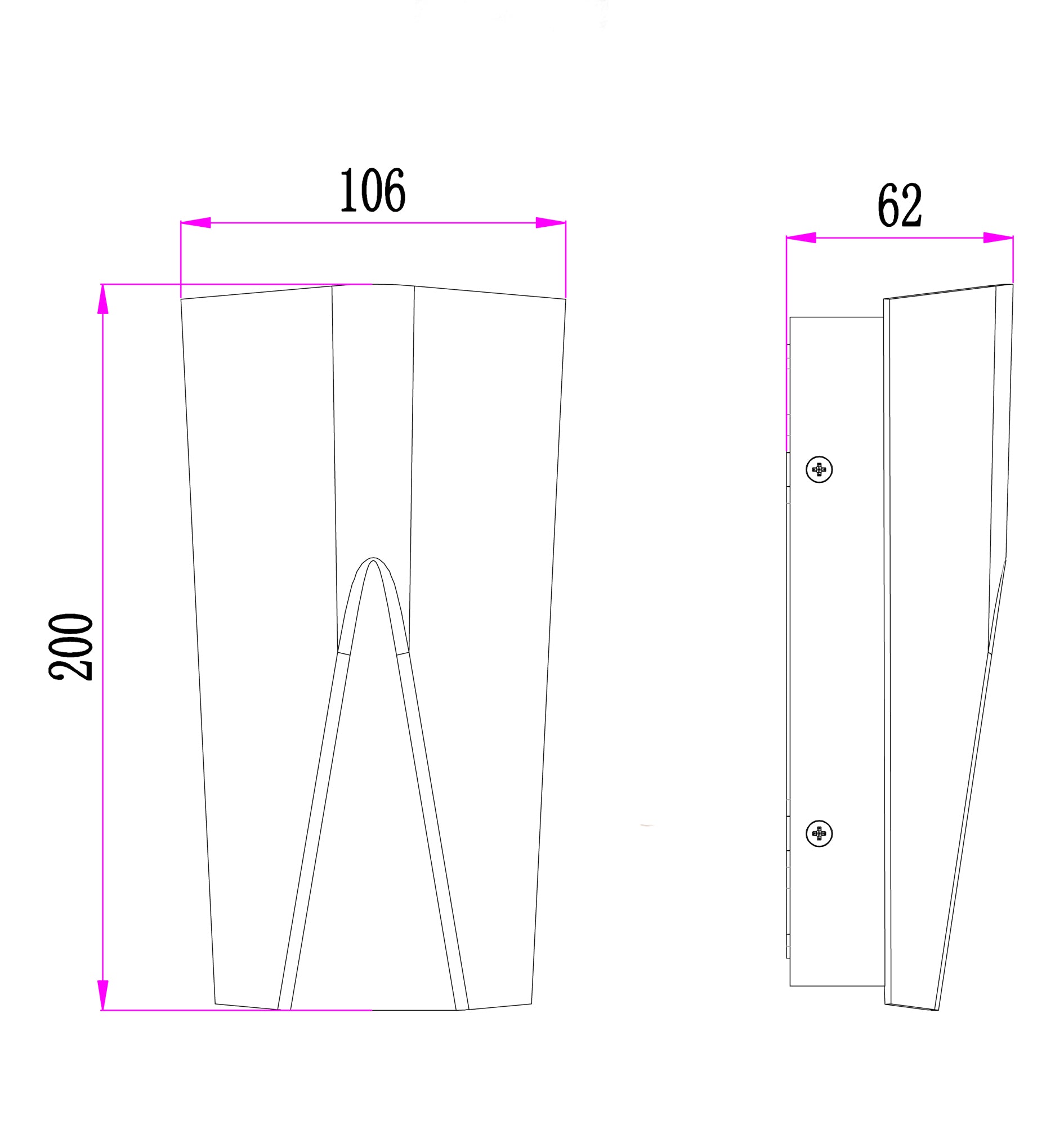

Diameter / Width: 106mm
Height: 200mm
Box Size: 21x12x7cm
Box Weight: 0.85kg
Brochure: WIG1-2 (651.8 KB)
Technical Spec: WIG1-2 (110.27 KB)
