Key Features:

• Input voltage: 220-240V 50Hz
• Constant Current LED driver inbuilt
• Housing: PC
• Diffuser: frosted PC
• Tri-CCT (3000K / 4200K / 6500K) in one fitting
• CCT switch on rear
• LED chips: 120pcs 2835
• CRI: 80
• Power factor: >0.5
• Ambient Temperature: -20 to 50°C
• Not suitable for dimming
• Suitable for use with sensor
• Double insulation
• IP rating: IP65
• IK rating: IK08

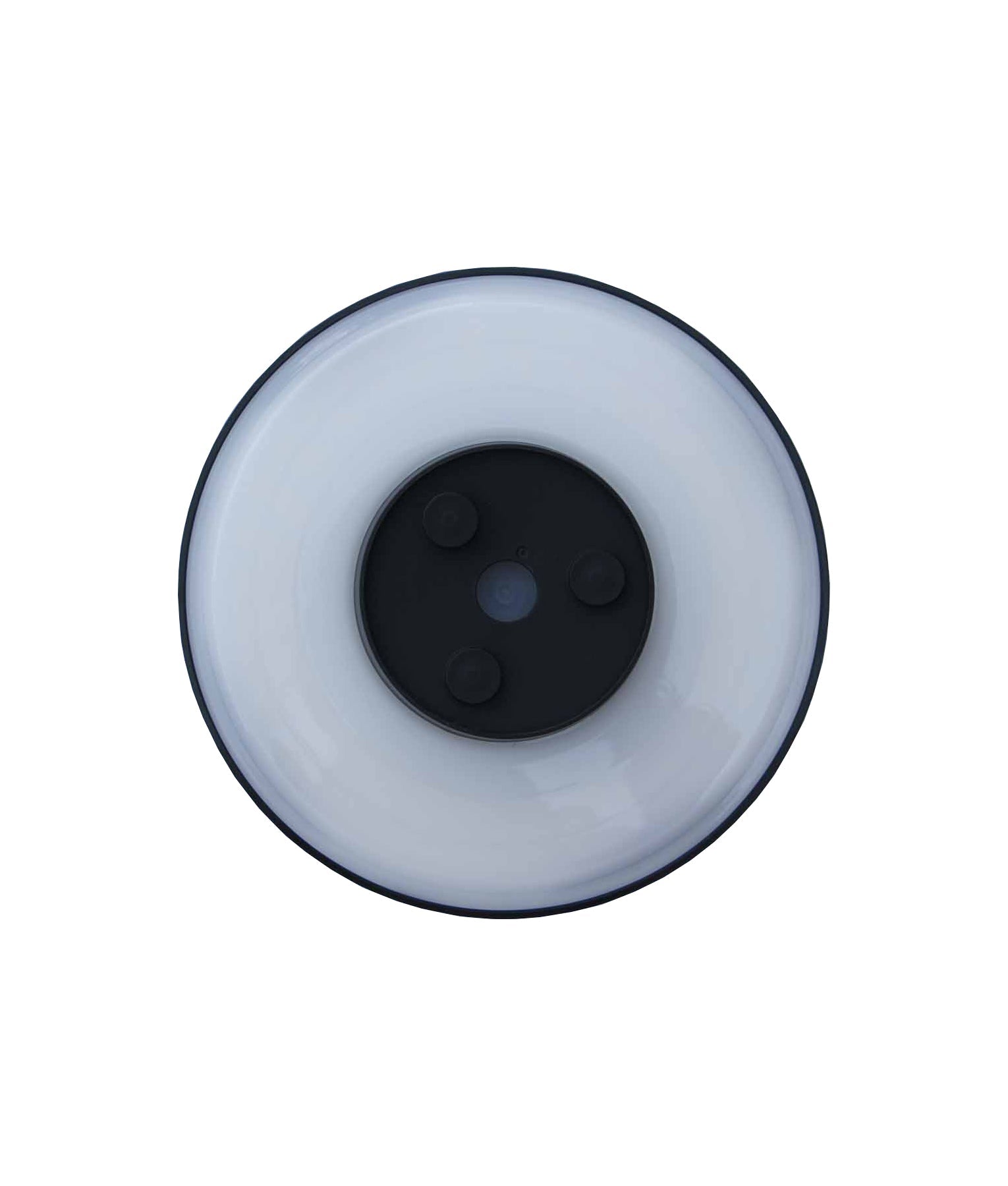

• Back plate: Ø100x33mm
• Warranty: 2 year replacement warranty

The SHADOWTRI surface mounted wall light is certified for safe use under Australian and New Zealand electrical safety standards (Cert. No. GMA-522003), meeting AS/NZS 60598.2.1:2014 Amd 2:2019 and AS/NZS 60598.1:2017 Amd 1 & 2 requirements for fixed general-purpose luminaires.

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.

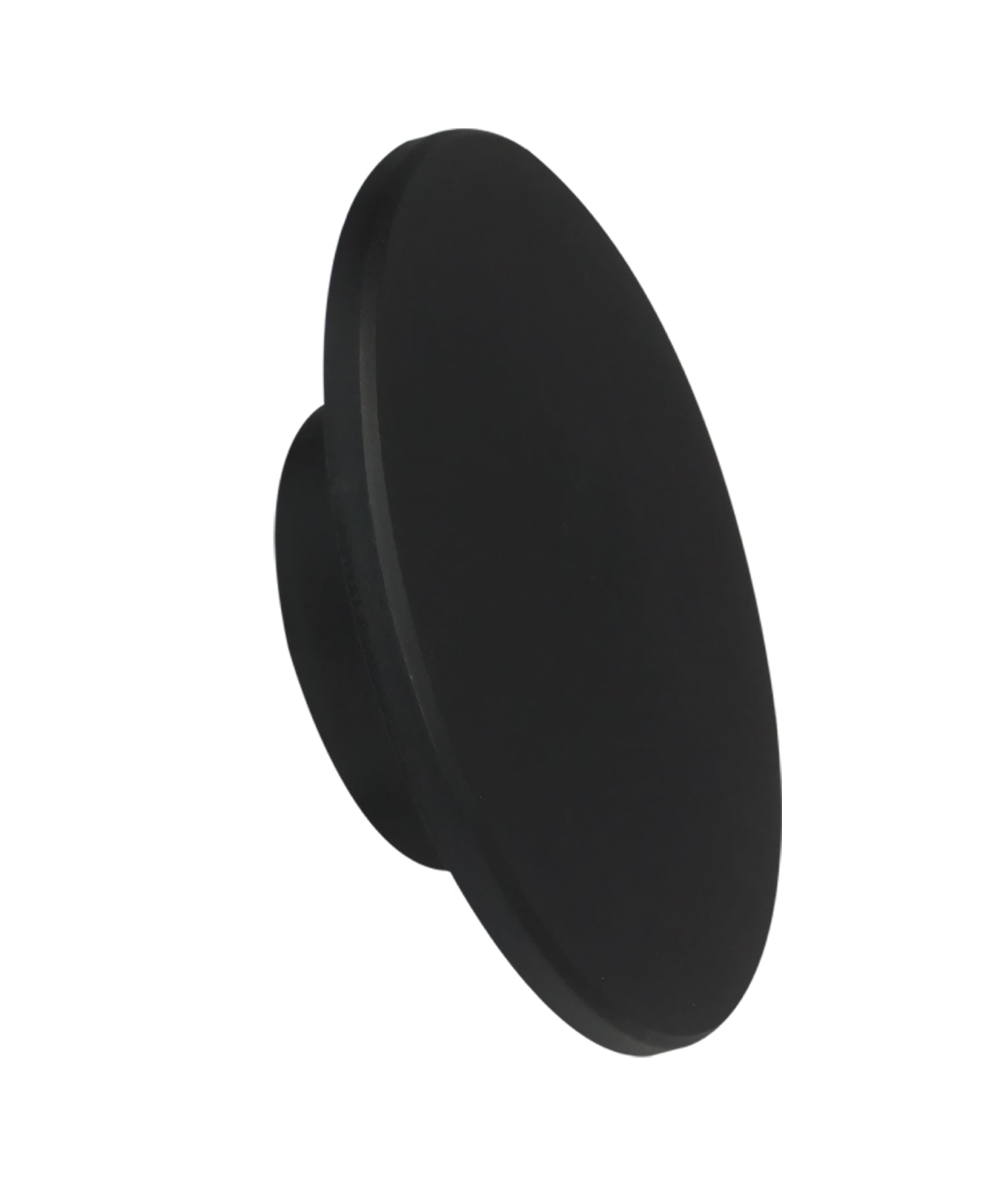

Part No: SHADOWTRI1
Description: Wall S/M LED 240V 12W Tri CCT 3K/4.2K/6.5K 1200/1300/1250 Lm IP65 RND Backlit Blk 120D Frosted Diff OD180mm x D47mm WTY 2YR
Colour: Housing: Black; Diffuser: frosted
Material: Housing: PC; Diffuser: frosted PC
Input Voltage: 220-240V 50Hz
Wattage: 12W
Kelvin: 3000K / 4200K / 6500K
Lumens: 1200lm / 1300lm / 1250lm
Beam Angle: 120 degree
Power Factor: >0.5
CRI: 80

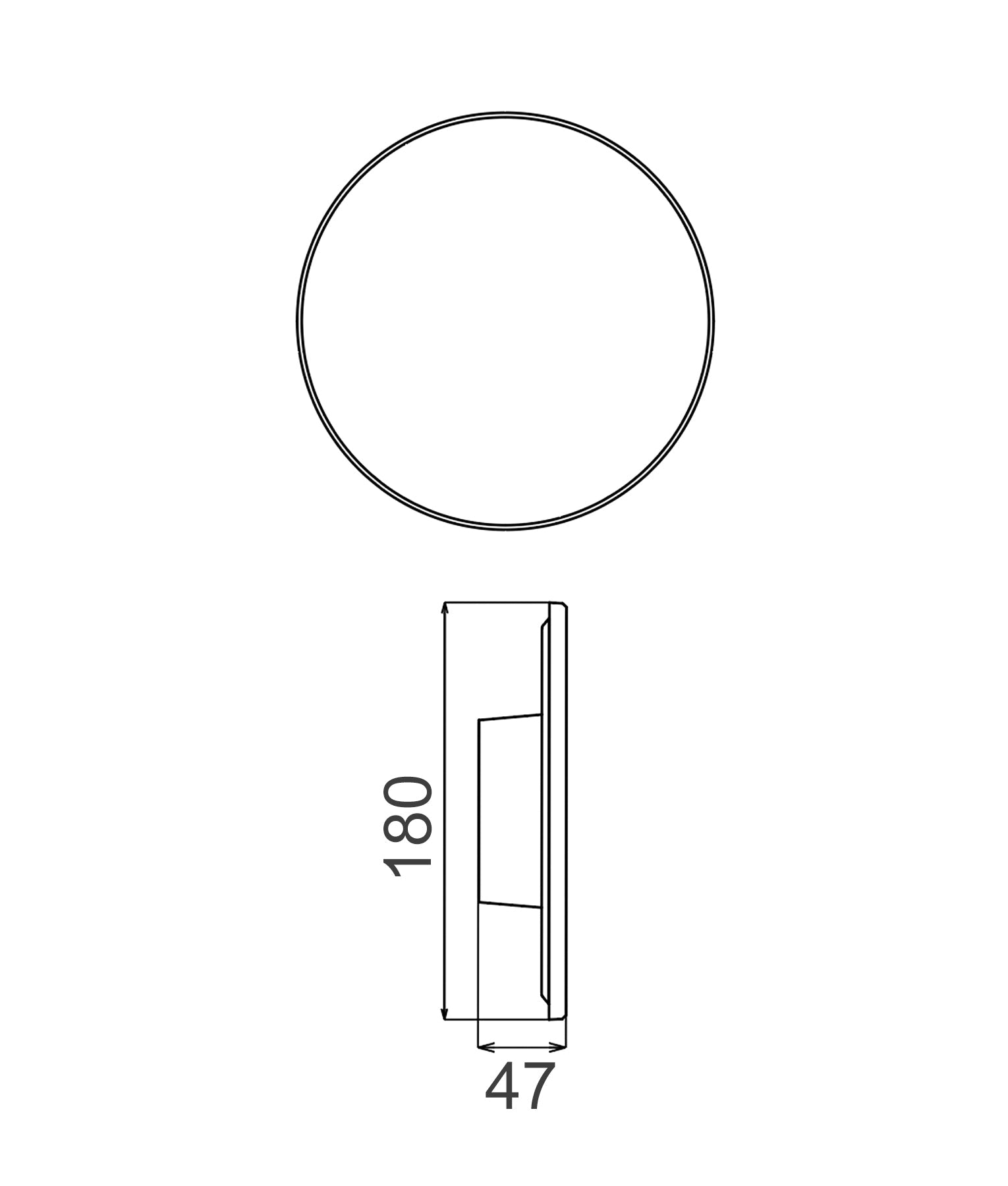

Diameter / Width: 180mm
Box Size: 19x6x18cm
Box Weight: 0.3kg
Carton Qty: 1/20

Brochure: SHADOWTRI1-4 (684.2 KB)
Technical Spec: SHADOWTRI1-4 (3.61 MB)
IES: SHADOWTRI1-2 (11.22 KB)
