Key Features:

• Input voltage: 200-240V AC 50/60Hz
• External constant current dimmable driver included
• Housing: white powder coated aluminium
• Textured clear glass diffuser
• Mounting plate & heatsink: aluminium
• Surface mounted or recessed
• Adjustable: 90°
• Tri-CCT (3000K / 4000K / 5700K) switch on DC cable
• LED chips: SMD2835
• Power factor: 0.95
• CRI: ≥80
• Flex & plug: 1200mm

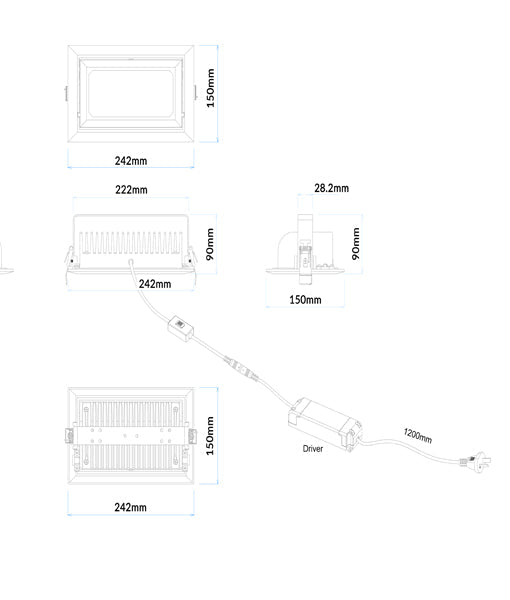

• Mounting bracket: L 222mm x W 28.2mm
• Suitable for dimming
• Suitable for 2 way switching
• Suitable for use with PIR or Microwave sensors
• Ambient temperature: -20 to 40°C
• IP rating: IP20
• Warranty: 3 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)

Tested & Recommended Dimmers:

• Clipsal: 32ELEDM, 32E450UDM, 31E2PUDM
• HPM: CAT250, CAT250T, CAT400T
• Diginet: MMDM/RT, MEDM

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)

Part No: SHOPTRI
Description: D/L GIMBAL DIMM 35W RECT WH Tri IP20 230x130mm 3200 Lm
Colour: Fitting Trim: White; F & P Colour: Black; Housing: White;
Material: Diffuser: Glass; Faceplate: Aluminium; Housing: Aluminium; Spring: Steel; Mount: Aluminium;
Input Voltage: 200-240V AC
Wattage: 35W
Kelvin: 3000K / 4000K / 5700K
Lumens: 2900lm / 3200lm / 3000lm
Beam Angle: 120 Degree
Power Factor: 0.95
CRI: 80
Diameter / Width: 90mm
Height: 90mm
Box Size: 27x16x11cm
Box Weight: 1.9kg

Brochure: SHOPTRI (656.1 KB)
Technical Spec: SHOPTRI (126.97 KB)
IES: SHOPTRI_3000K (3.72 KB)
IES: SHOPTRI_4000K (3.72 KB)
IES: SHOPTRI_5700K (3.72 KB)
