Key Features:

• Housing: Nylon + PC
• Conductor: Brass
• Rated Power: 24A 450VAC
• Rated connecting capacity: 0.5-2.5mm²
• Available cable diameter(Rubber): 8-11mm
• Extra 8-11mm Rubbers included in the packet
• Refer to stripping length: External stripping 25mm; Internal stripping 7mm
• IP rating: IP68
• Warranty: 1 year replacement warranty


Part No: CONN005

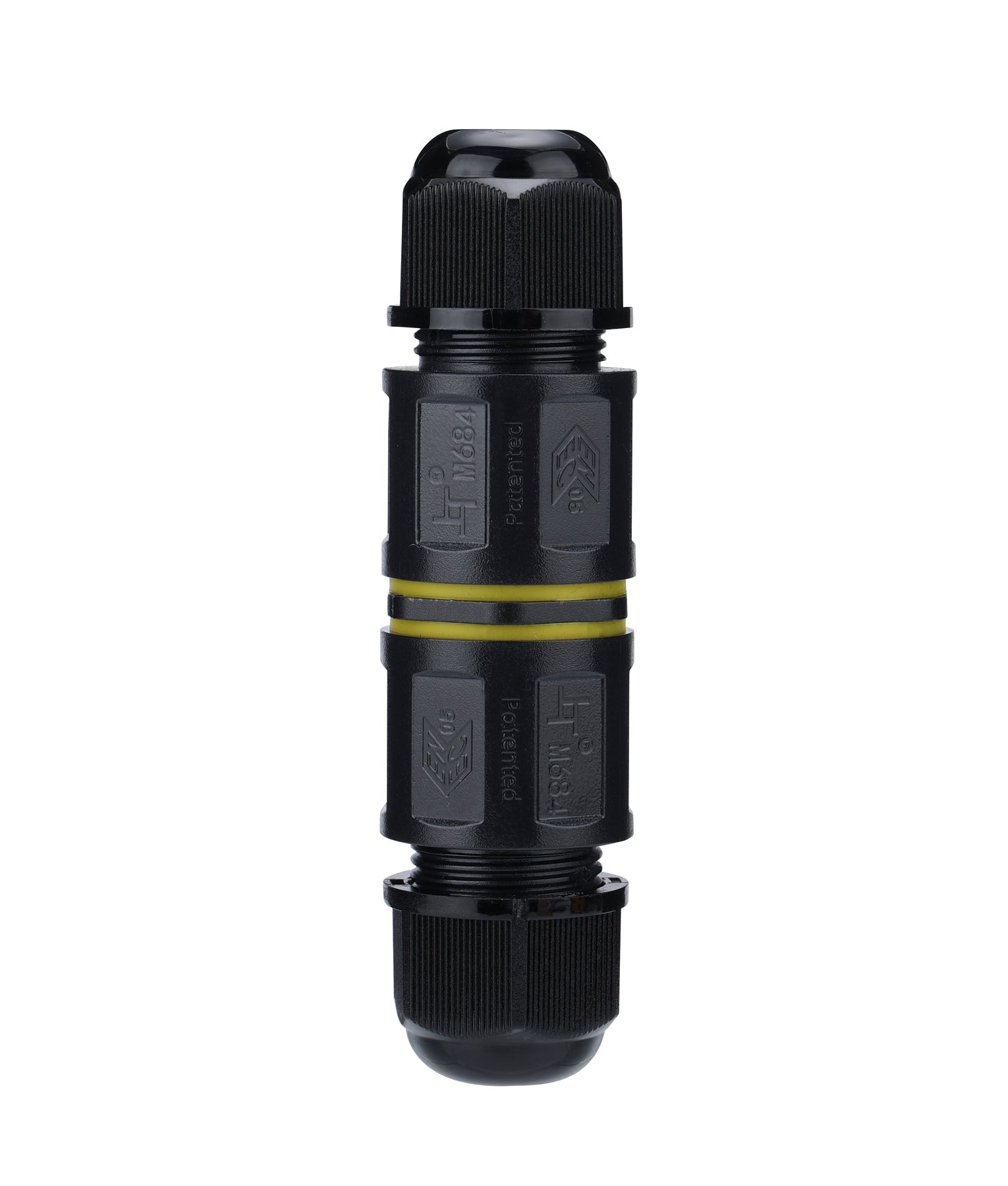

Description: CONNECTOR 2 Way Cable Extention IP68 W/Proof
Colour: Housing: Black;
Material: Housing: Nylon Glass Fibre (Reinforced);
Box Size: 15x15x3cm
Box Weight: 0.1kg
Carton Qty: 1/125

Brochure: CONN005-007 (625.8 KB)
Technical Spec: CONN005 (12.56 MB)
