Key Features:

• Input voltage: 12V AC/DC 50/60Hz
• Nominal current: 1A
• Material: PBT & glass
• Wattage: 9W
• LED chips: 48pcs 2835 LED
• Ambient Temp: -15 to 50°C
• Not suitable for dimming
• Recommended iron core(only) transformer & Constant Voltage LED driver
• IP rating: IP20
• Warranty: 2 year replacement warranty

Part No: 3U001

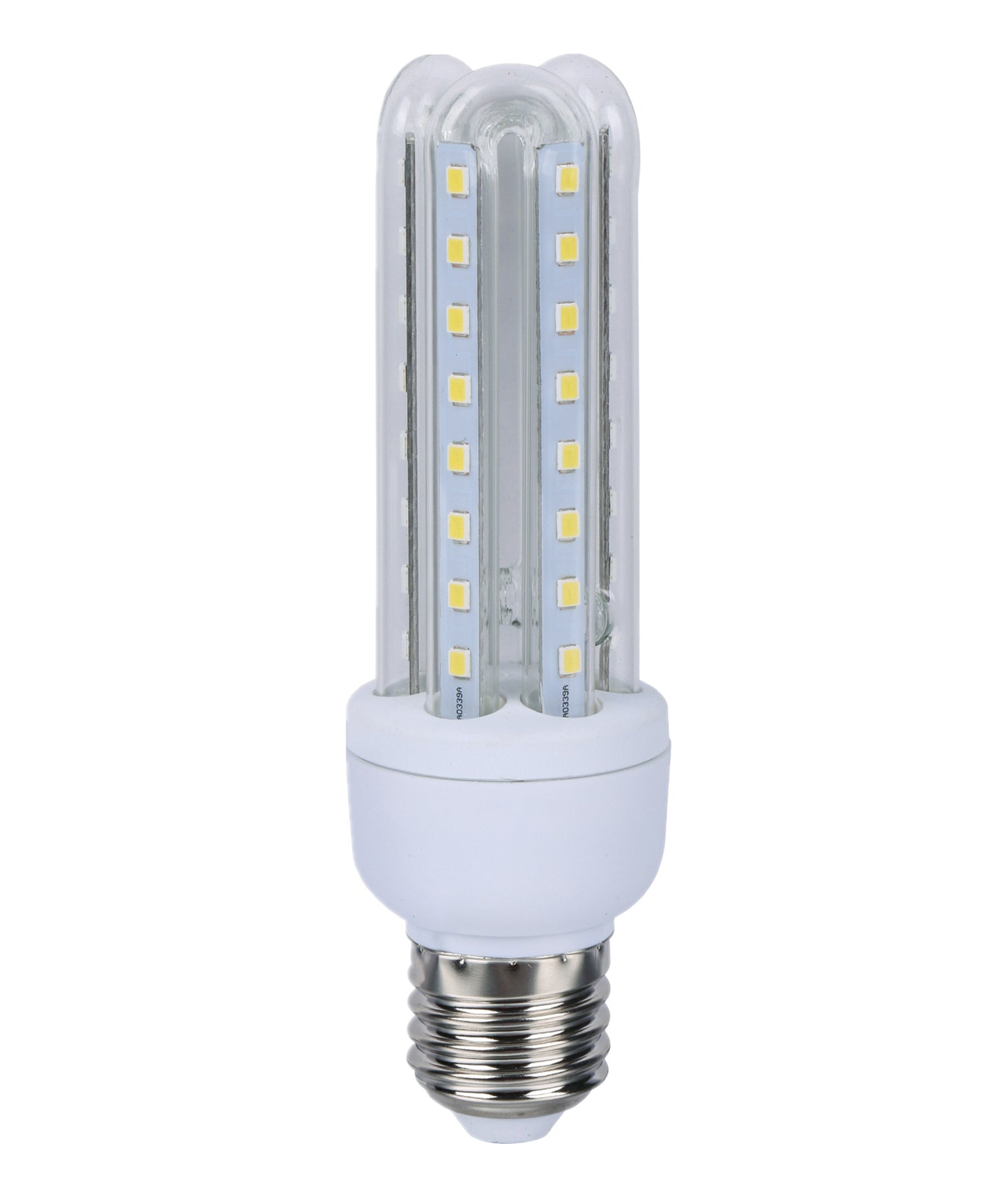

Description: GLOBE LED 12V AC/DC ES 3U 9W 3000K 270D 720 Lm
Colour: Housing: White;
Material: Diffuser: Glass; Housing: PBT;
Input Voltage: 12V AC/DC
Wattage: 9W
Kelvin: 3000K
Lumens: 720lm
Beam Angle: 270 Degree
Power Factor: 0.5
CRI: 80

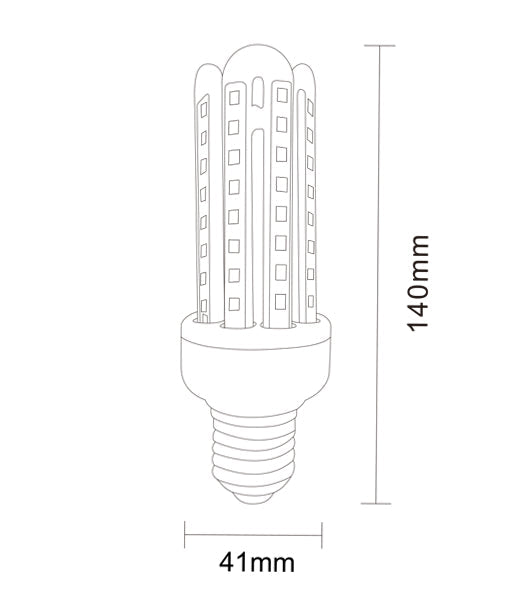

Diameter / Width: 41mm
Height: 140mm
Box Size: 16.2x5x5cm
Box Weight: 0.08kg

Compatible Drivers List (237.45 KB)
Brochure: 3U001-003 (379.87 KB)
Technical Spec: 3U001-003 (54.57 KB)
