Key Features:

• Matt white rectangular with clear / frosted ribbed diffuser
• Material: iron & aluminium & acrylic
• 12V inbuilt constant current LED driver included
• Driver output voltage: 22-36V
• Driver input current: 0.11A
• Driver output current: 0.35A
• LED chips: 12pcs 5050
• Power factor: 0.5
• Ambient Temp: -20 to 50°C
• Not suitable for dimming
• Suitable for 2-way switching
• Suitable for use with PIR & Microwave sensors
• IP rating: IP20

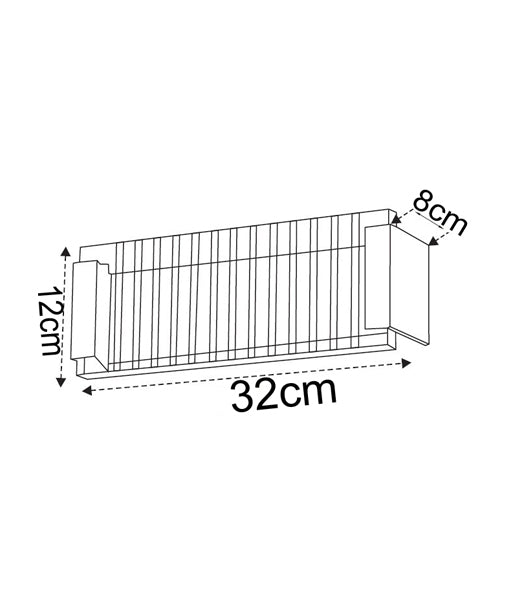

• Back plate: L 308 x W 90 x 38mm
• Mounting plate: 160x30mm, central 7mm cable entry
• Warranty: 2 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)

Part No: VIENNA
Description: WALL Int S/M 12W RECT Matt Wh 3K w/FR Ribbed Diff 803 Lm
Colour: Fitting Trim: Matte White; Housing: Matte White; Mount: Matte White;
Material: Diffuser: Acrylic; Housing: Aluminium; Mount: Metal;
Input Voltage: 220-240V AC
Wattage: 12W
Kelvin: 3000K
Lumens: 803lm
Beam Angle: 120 Degree
Power Factor: 0.5
CRI: >80
Diameter / Width: 320mm
Height: 90mm
Box Size: 39x18x14cm
Box Weight: 1.84kg

Brochure: VIENNA (652.78 KB)
Technical Spec: VIENNA (117.95 KB)
