Key Features:

• Input voltage: 220-240V 50/60Hz
• Output voltage: LED 210V DC and Fan 24V DC
• Housing: plastic
• Diffuser: opal plastic
• Blade: PC
• Mounting plate: aluminium
• Tri-CCT (3000K / 4000K / 5500K) in one fitting
• LED chips: 72pcs 2835
• Life time: 30,000 hours
• Beam angle: 150°
• Power factor: 0.9
• Ambient temperature: -20 to 40°C

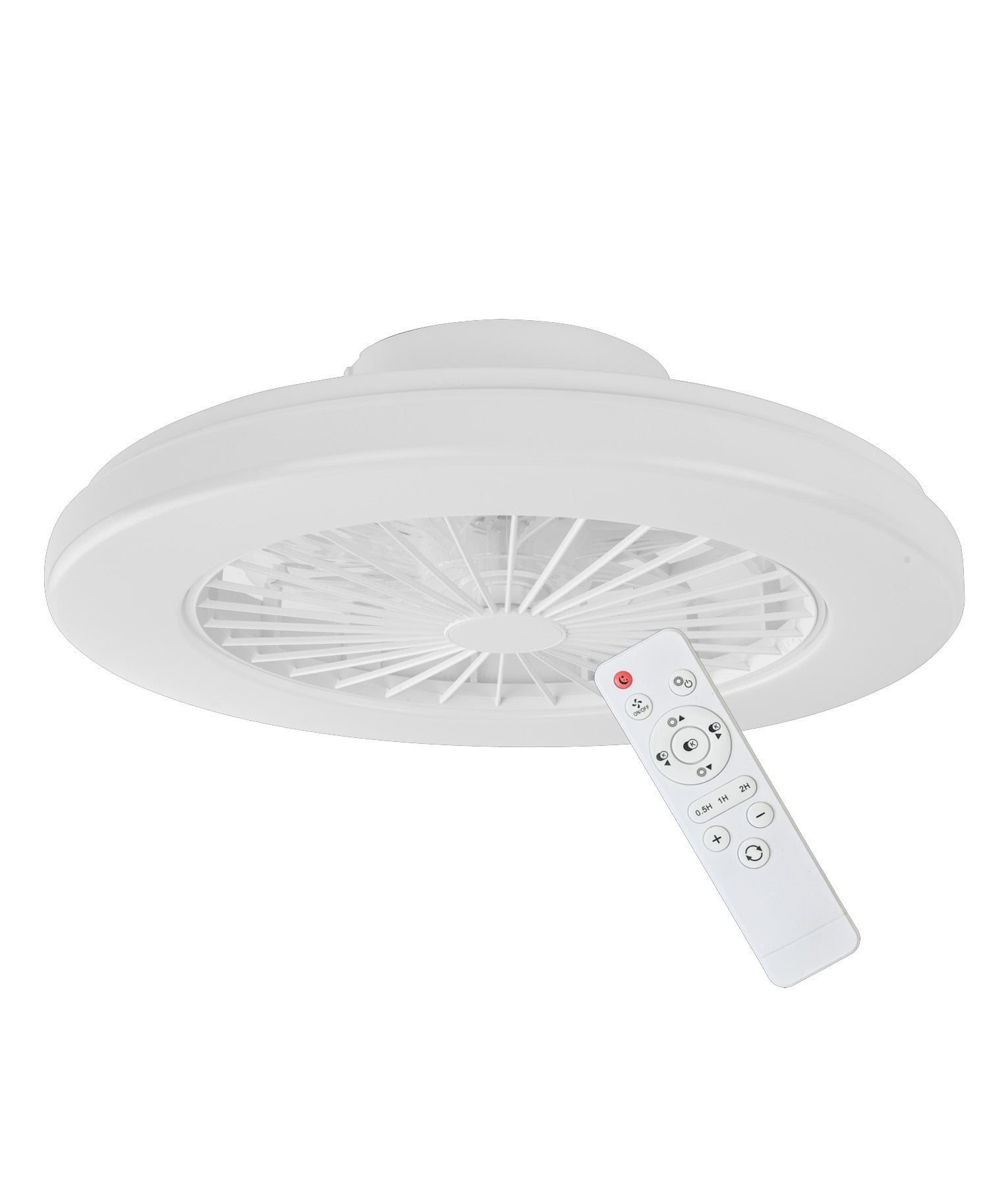

• Speed, Timer, Dimming & Reverse function on remote
• Suitable for 2 way switching
• IP20
• Double Insulated
• Warranty: 3 years replacement warranty

Fan Features:

• Fan Speed: 6-speed fan control with remote
• Number of Blades: 8
• Airflow: 43 m³/min
• RPM: 1080
• Fan power consumption: 15W
• Fan sound power level: 58 dB

*Please check with Licenced electrician for Min and Max dimmer load. May be compatible with other untested dimmers.

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

Part No: VIFTU1
Description: Ceiling Fan w/LED Light RND Wh Opal Diff Max 40W w/Light 15W w/Fan Tri (3K-5.5K) 2150/4300/2150 Lm Dimm OD480mm D148mm Speed, Timer & Reverse Function w/Remote Control WTY 3YR
Colour: White
Wattage: Light: 40W
Kelvin: 3000K / 4000K/ 5500K
Lumens: 2150LM / 4300LM / 2150LM
Beam Angle: 150 Degrees
Power Factor: 0.9
CRI: 80

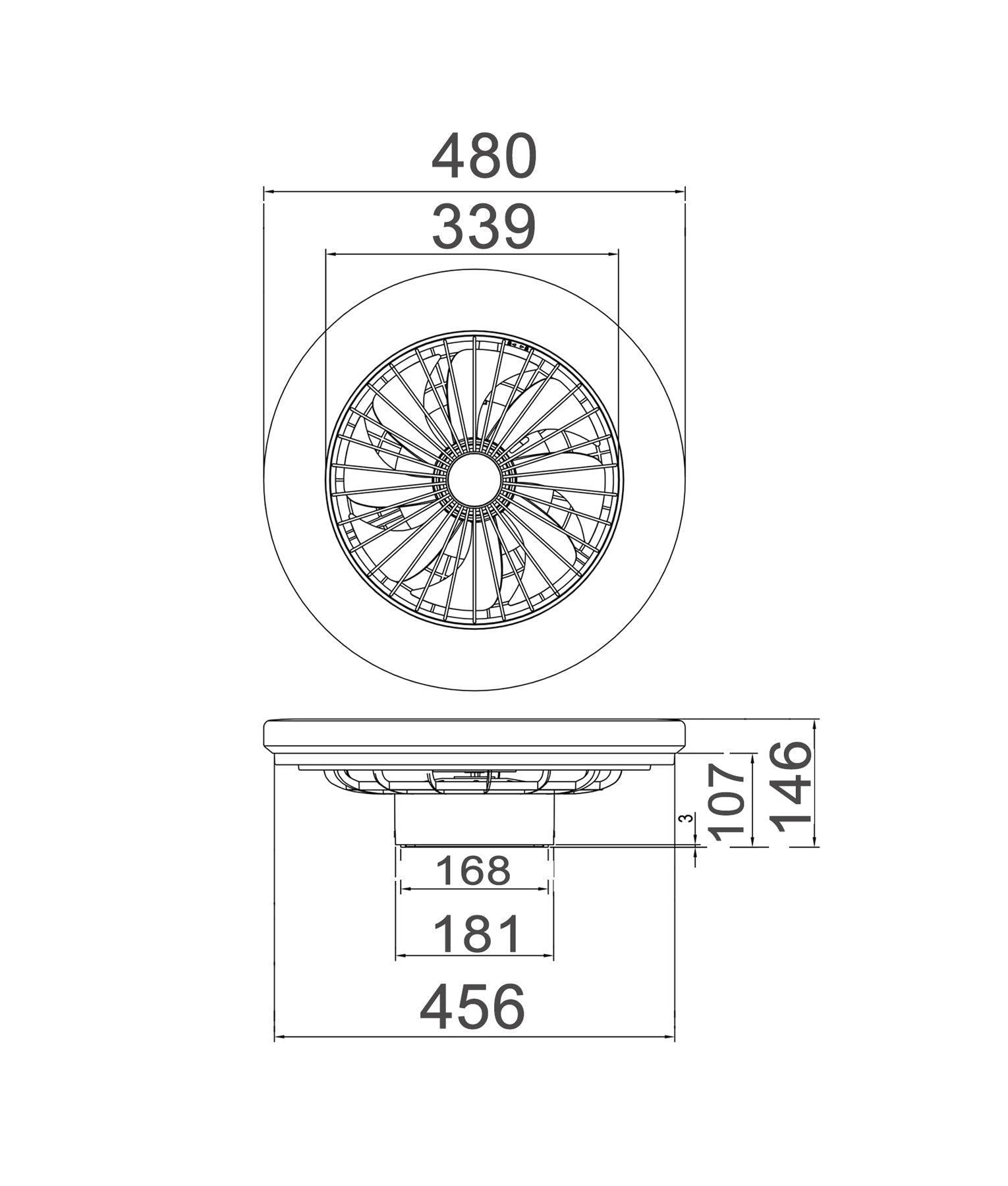

Diameter / Width: 480mm; Fan Diameter: 339mm
Box Size: 53x53x17cm
Box Weight: 3kg
Carton Qty: 1/1

Brochure: VIFTU1 (1.43 MB)
Technical Spec: VIFTU1_Light (1.71 MB)
Technical Spec: VIFTU1_Fan (2.37 MB)
Installation Instruction: VIFTU1 (959.43 KB)
