Key Features:

• Input voltage: 220-240V AC 50Hz
• Constant current LED driver included
• Clear diffuser: PC
• Heatsink: PCB & aluminium
• Tri-CCT (3000K / 4000K / 5000K) switch on driver
• LED chips: SMD2835
• Power factor: >0.8
• CRI: 80
• 2 wire input
• Not suitable for dimming
• Suitable for 2 way switching
• Suitable for use with PIR or Microwave sensors
• Ambient temperature: -20 to 45°C
• IP rating: IP20
• Double insulated
• Suitable for commercial use
• Warranty: 2 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

Part No: CKTRI02

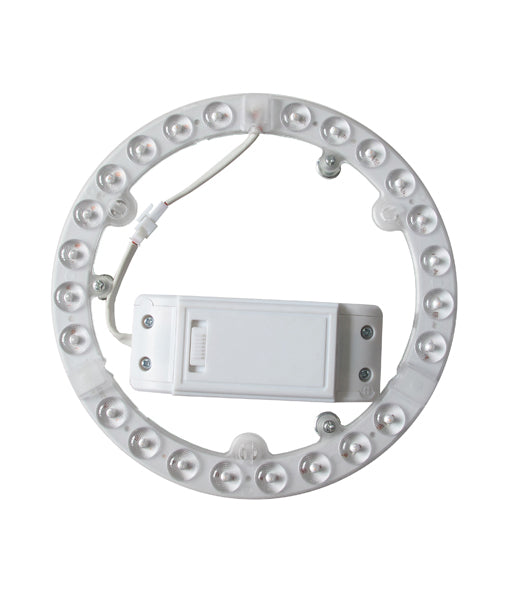

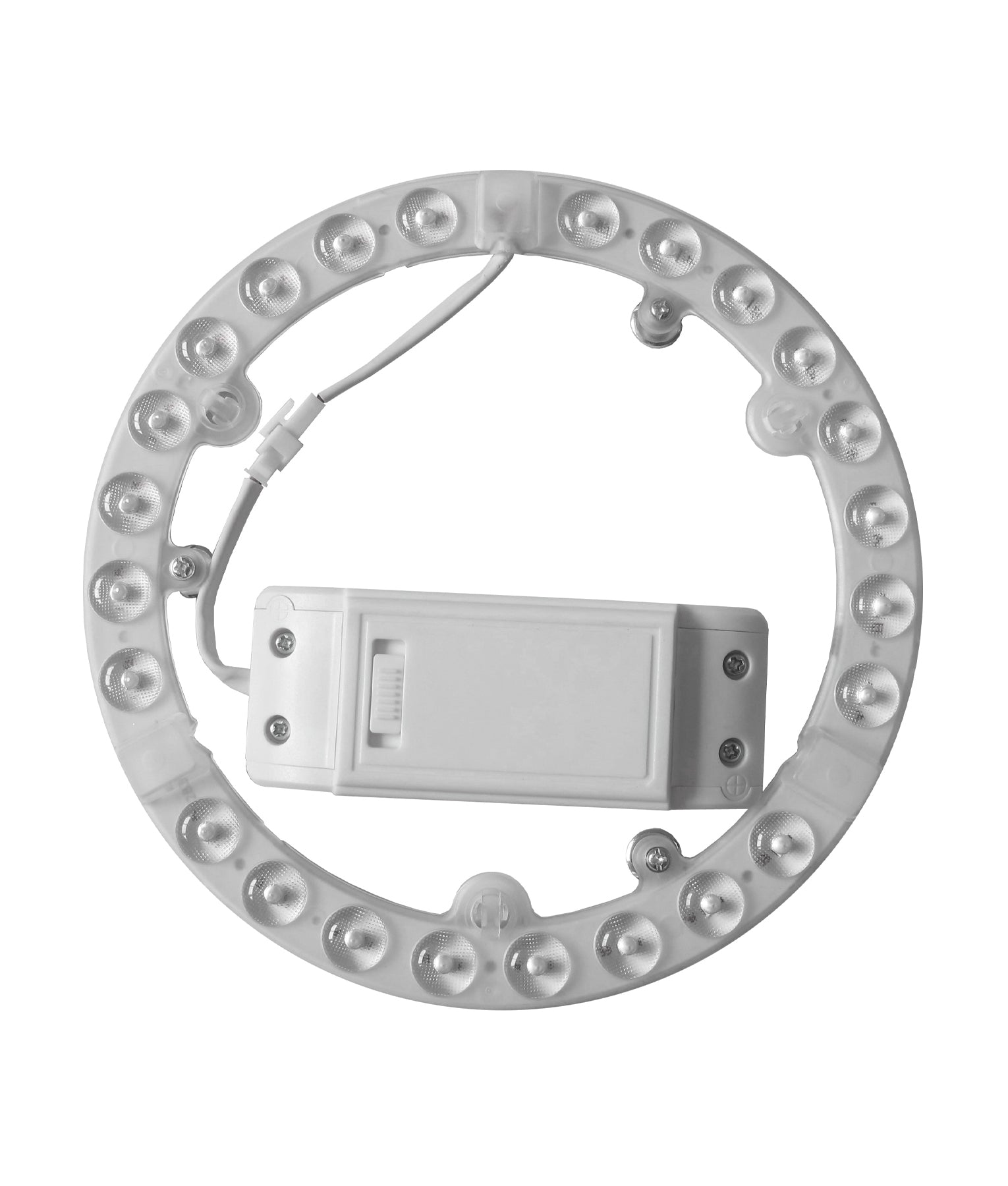

Description: GLOBE LED Circ Conv Kit 18W Tri OD230mm 1800 Lm
Colour: Housing: White;
Material: Diffuser: Polycarbonate; Housing: PCB & Aluminium;
Input Voltage: 220-240V AC
Wattage: 18W
Kelvin: 3000K / 4000K / 5000K
Lumens: 1700lm / 1800lm / 1750lm
Beam Angle: 120 Degree
Power Factor: >0.8
CRI: 80

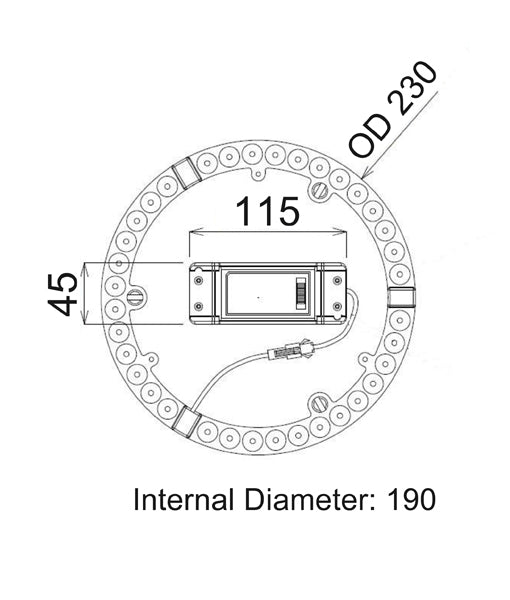

Diameter / Width: 230mm
Box Size: 24x24x3cm
Box Weight: 0.25kg

Brochure: CKTRI01-03 (555.9 KB)
Technical Spec: CKTRI01-03 (179.74 KB)
