Key Features:

• Input voltage: 12V
• Material: die cast aluminium
• Spike material: PC
• Diffuser: clear glass
• Adjustable up/down head : 10-80°
• LED chip: 1 COB
• Power factor: >0.5
• CRI: >80
• Flex only: 1m
• Ambient temp: -20 to 50°C
• Suitable for 2 way switching
• Suitable for use with Microwave or PIR sensors
• External Constant voltage driver required
• Recommended CLA 12V waterproof LED drivers
• IP rating: IP65
• Warranty: 3 year replacement warranty

*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.

*To maintain the IP rating please use circular cable in junction. For parallel and single connection we recommend using an appropriate IP68 connector.

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

Part No: KOLEC1

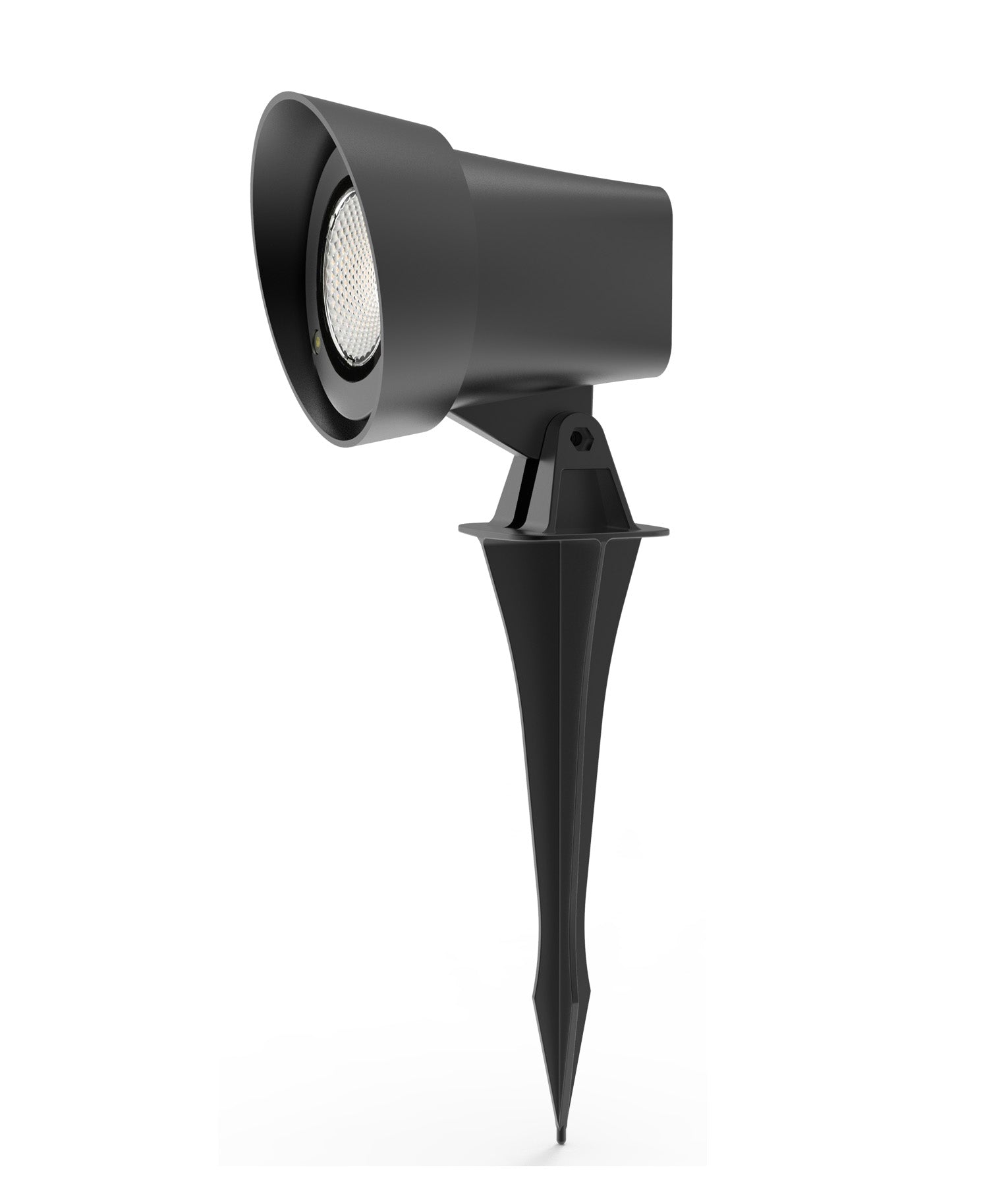

Description: SPIKE LED (Dark Grey) Adj 12V 13W 3000K 930LM IP65
Colour: F & P Colour: Black; Housing: Black; Mount: Black;
Material: Diffuser: Glass; Faceplate: Aluminium; Housing: Aluminium; Mount: PVC;
Input Voltage: 12V DC
Wattage: 13W
Kelvin: 3000K
Lumens: 930lm
Beam Angle: 14.7 Degree
Power Factor: 0.5
CRI: >80

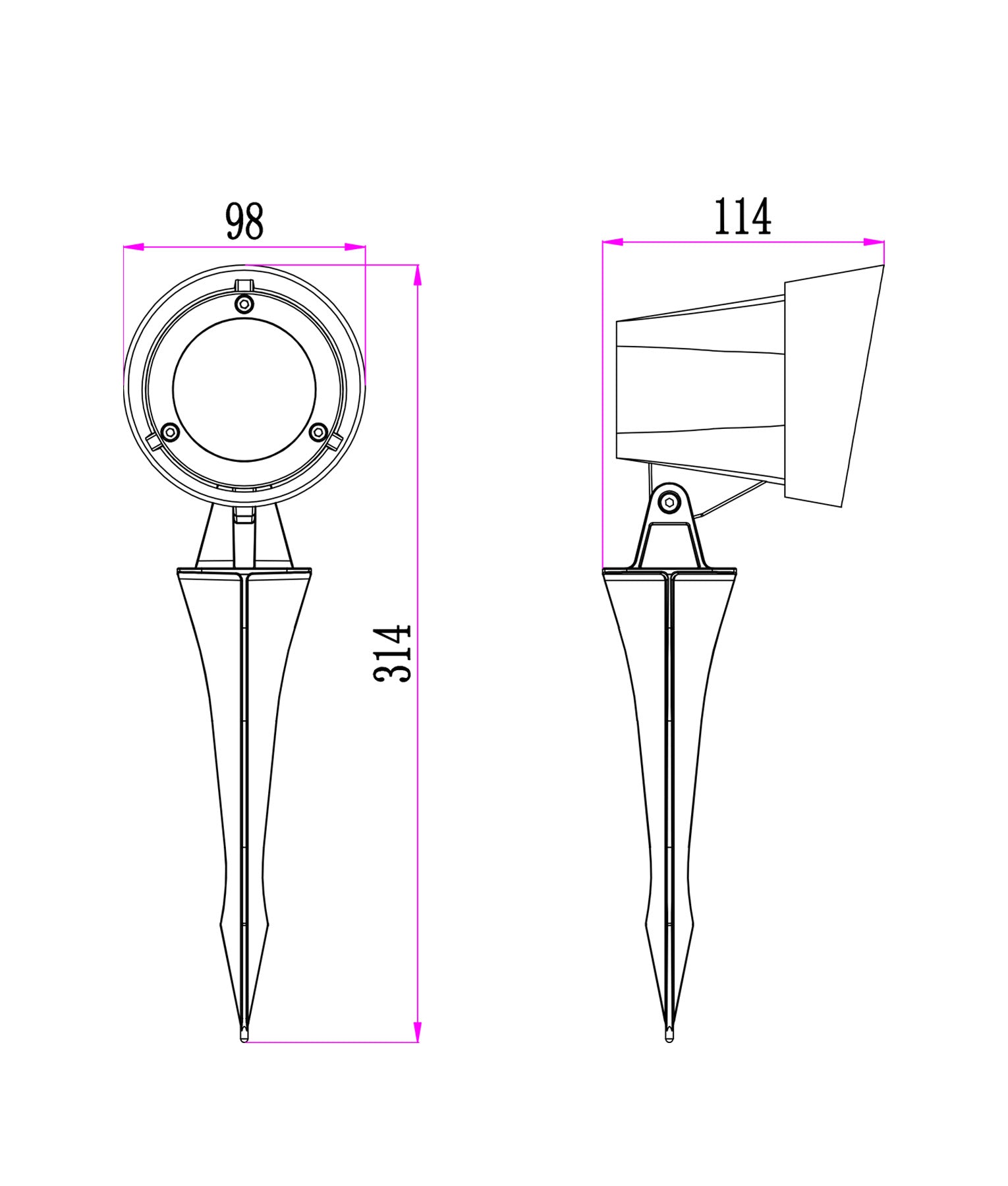

Diameter / Width: 114mm
Height: 314mm
Box Size: 12x11x33cm
Box Weight: 0.65kg

Brochure: KOLEC1 (694.66 KB)
Technical Spec: KOLEC1 (90.26 KB)
