Key Features:

• Exterior MR16 recessed inground up lights
• Input voltage range: 12-25V DC / AC
• External Control Gear Required
• Faceplate: 316 Stainless steel
• Housing: 316 stainless steel
• Lamp holder: MR16 (Max 20W globe)
• Globe not included
• Plastic sleeve included (must be used when installing in concrete)
• Fitting slides into sleeve and remains unattached
• Cable included (L950mm)
• 4mm tempered glass, max load capacity 100kg
• IP rating: IP67
• Warranty: 2 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

*To maintain the IP rating please use circular cable in junction. For parallel and single connection we recommend using an appropriate IP68 connector.

*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.

Part No: IGM1SS

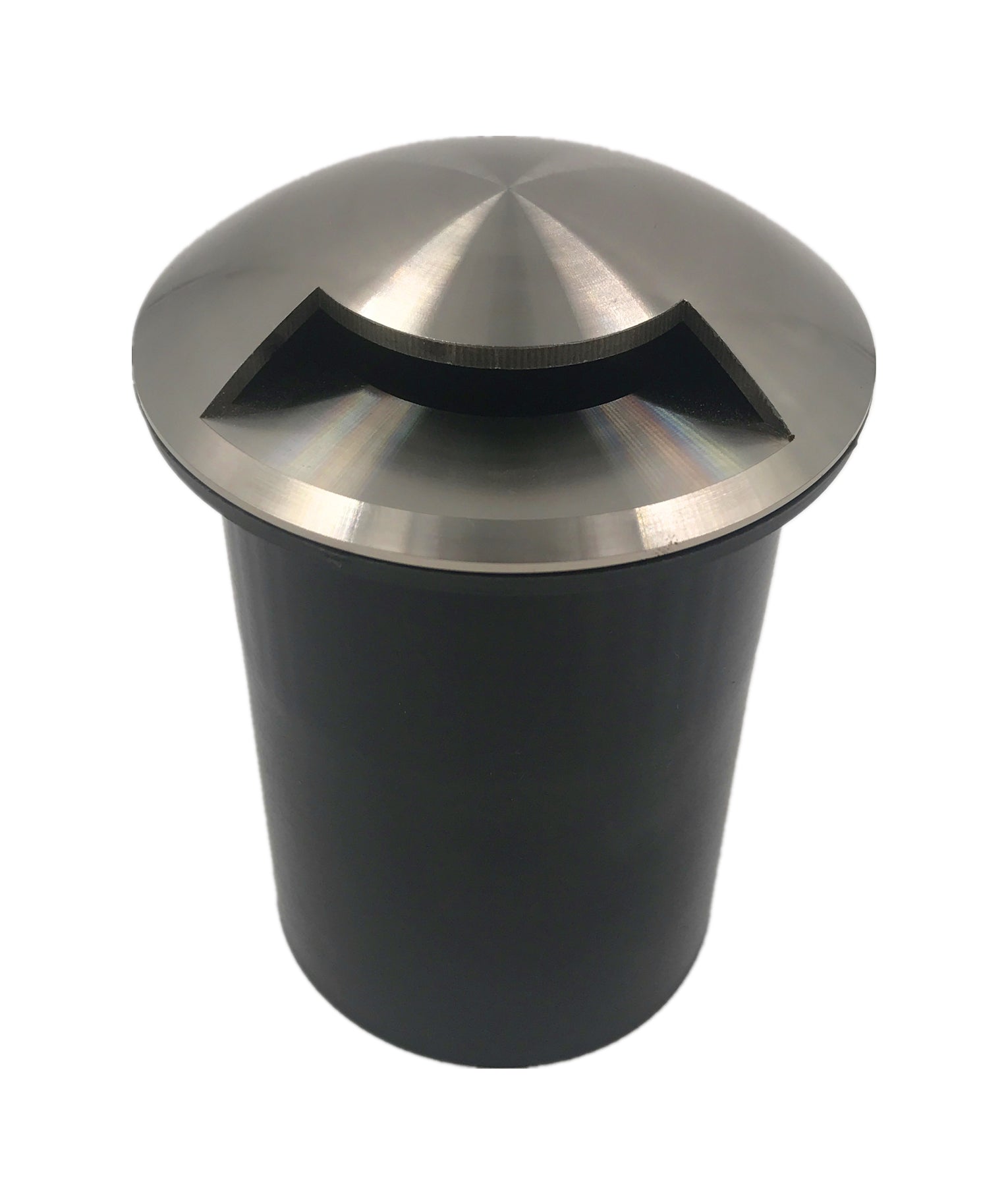

Description: INGROUND MR16 RND SS316 IP67 F/Plate 87mm 1 Eye
Colour: Housing: Stainless Steel;
Material: Diffuser: Glass (Tempered 4mm); Faceplate: Stainless Steel 316; Housing: Stainless Steel 316; Sleeve/Can: Plastic;
Input Voltage: 12-24V
Lamp Holder: 1xMR16 (Max.20W)
Globe Included: No

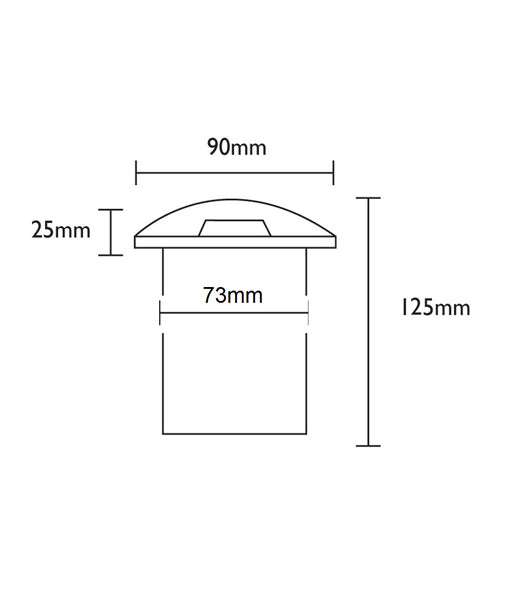

Diameter / Width: 90mm
Height: 125mm
Box Size: 10x10x13cm
Box Weight: 0.7kg

Brochure: IGM1-4SS (617.84 KB)
Technical Spec: IGM1SS-4SS (115.41 KB)
