Key Features:

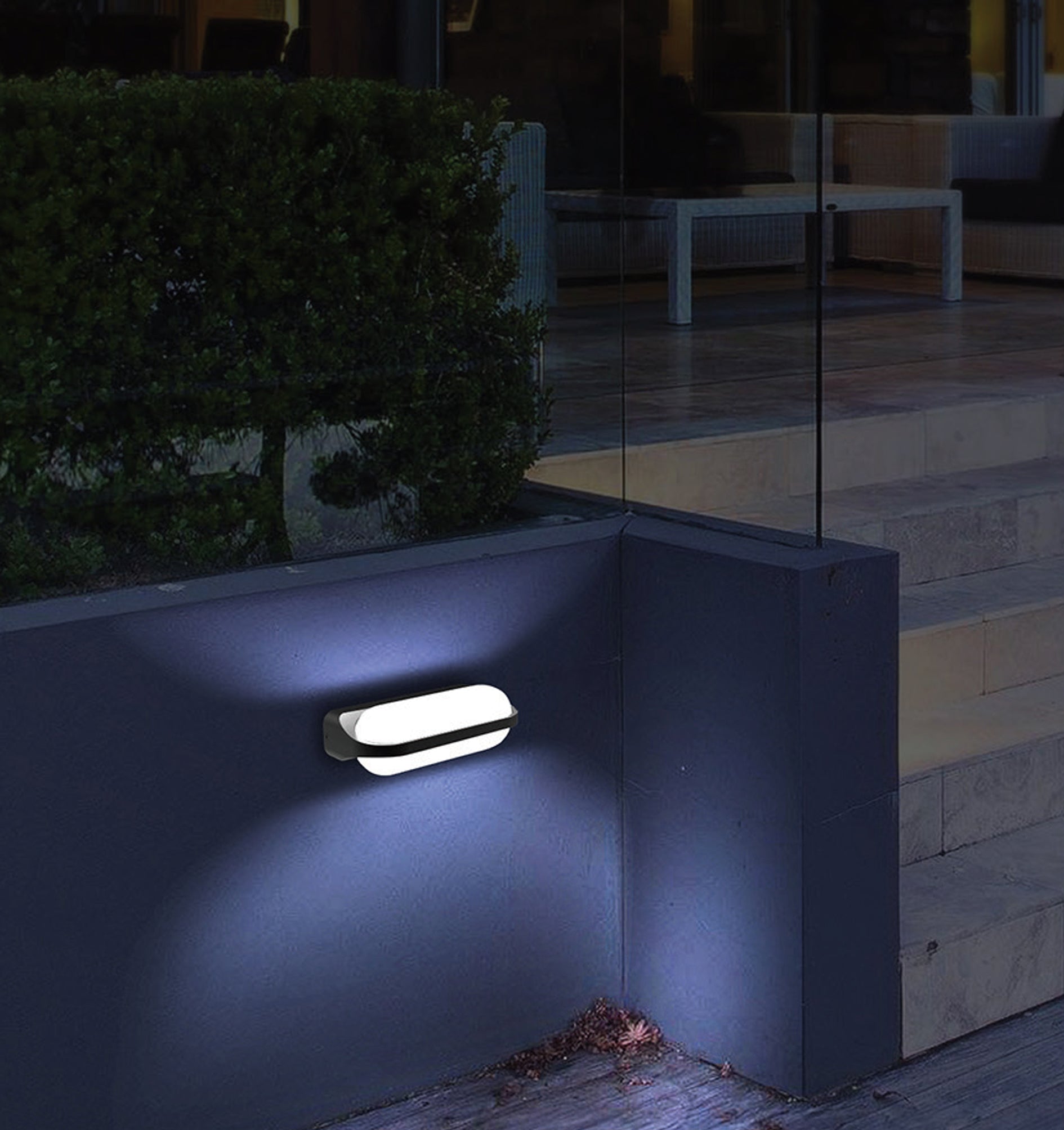

• Exterior LED surface mounted up/down wall lights
• Input voltage range: 100-240V AC 50/60Hz
• Driver output: 13.5-22V
• Driver input current: 0.034A
• Driver output current: 300mA
• Inrush current: 1.2A
• Housing: aluminium
• Diffuser: PC
• Bracket: PC
• LED chip: 6pcs 3030
• Power factor: >0.5
• Ambient Temperature: -20 to 50°C
• Suitable for 2-way switching
• Suitable for use with PIR or Microwave sensors
• IP rating: IP65

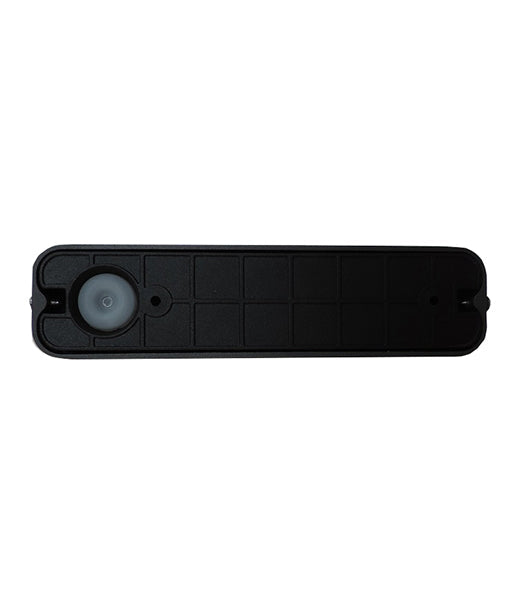

• Back plate: 92.5 x 50.5mm
• Warranty: 3 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.

Part No: MARINA1

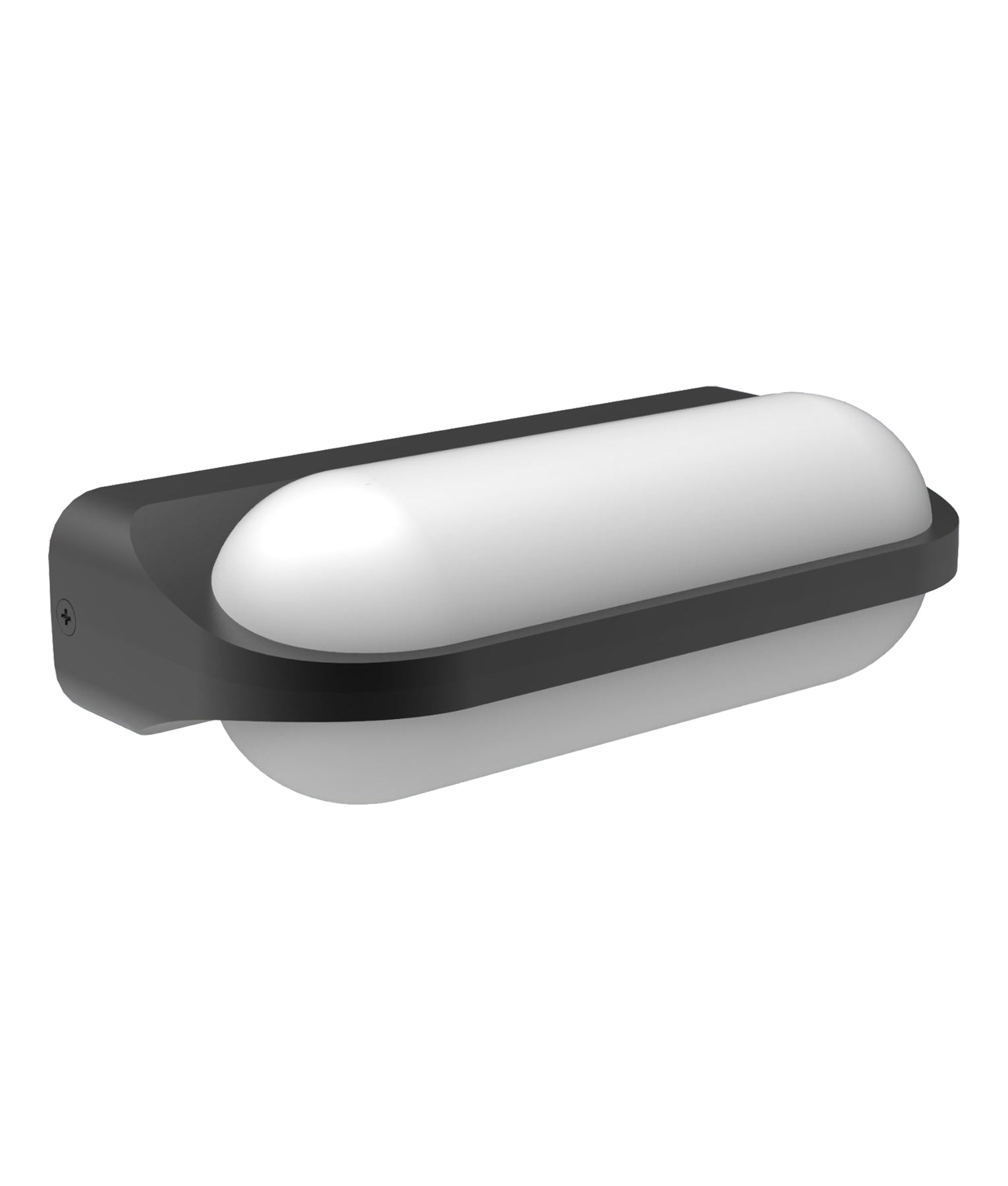

Description: WALL S/M Up/Dn 7W OVAL Dark Grey 3K IP65 Opal Diff 380 Lm
Colour: Housing: Dark Grey;
Material: Diffuser: Polycarbonate; Housing: Aluminium; Mount: Polycarbonate;
Input Voltage: 100-240V AC
Wattage: 7W
Kelvin: 3000K
Lumens: 380lm
Beam Angle: 173 Degree
Power Factor: 0.5
CRI: >80

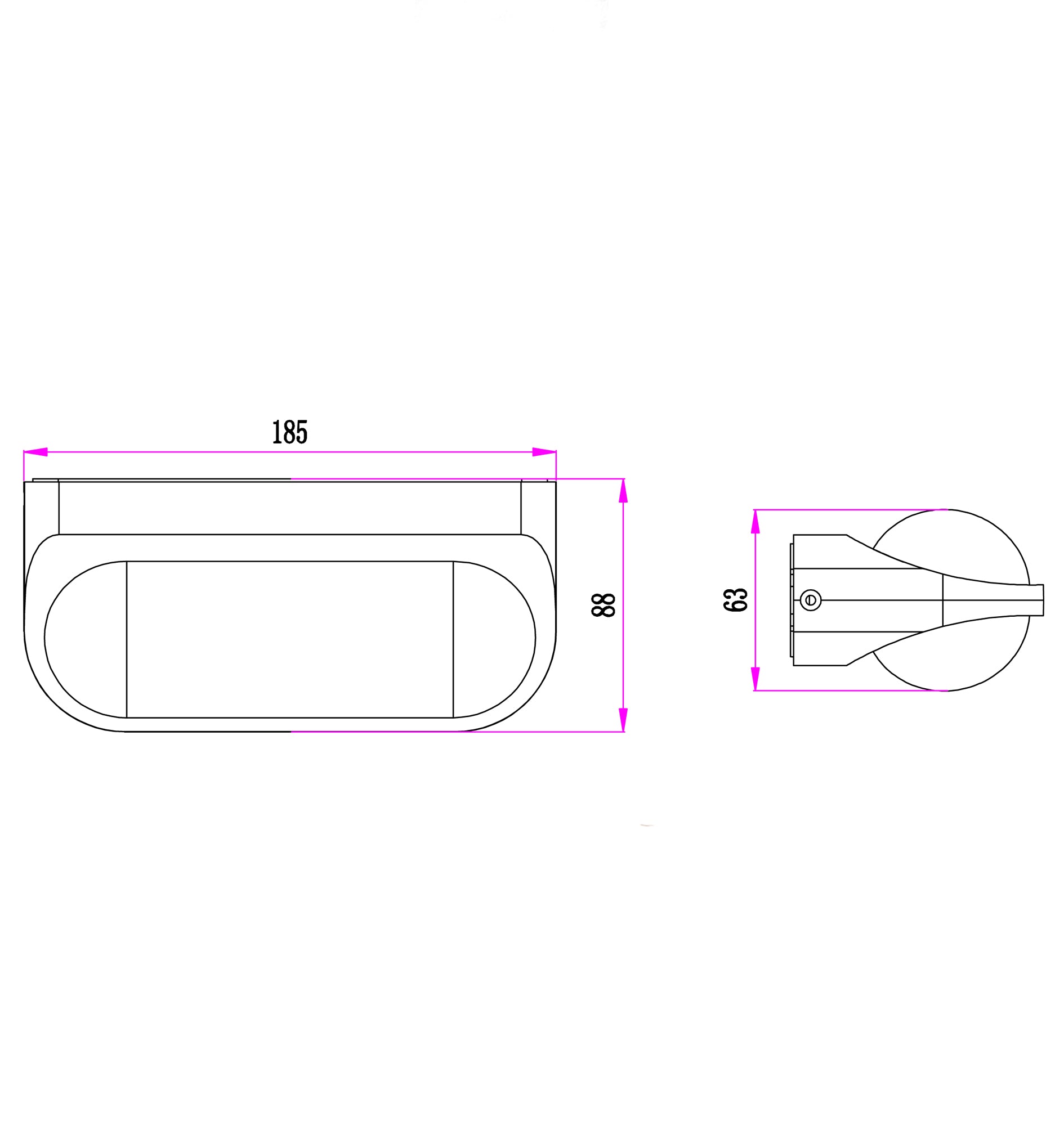

Diameter / Width: 185mm
Height: 63mm
Box Size: 20x11x8cm
Box Weight: 0.55kg

Brochure: MARINA1-2 (470.63 KB)
Technical Spec: MARINA1 (65.42 KB)
Technical Spec: MARINA2 (113.39 KB)
