Key Features:

• Interior LED surface mounted wall light, clear border / Frosted inner rectangular / brushed satin chrome plate
• Material: iron & aluminium electroplated brushed satin chrome & acrylic
• 12V Inbuilt constant current LED driver included
• Driver output voltage: 24-40V
• Driver input current: 0.24A
• Driver output current: 0.4A
• LED chips: 160pcs 2835
• Power factor: 0.5
• Ambient Temp: -20 to 50°C
• Not suitable for dimming
• Suitable for 2-way switching
• Suitable for use with PIR & Microwave sensors
• IP rating: IP20
• Back plate: L 310 x W 40mm
• Warranty: 2 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)

Part No: BARCELONA
Description: WALL Int S/M 10W RECT Br S/C 3K Frosted Diff 614 Lm
Colour: Fitting Trim: Brushed Satin Chrome; Housing: Brushed Satin Chrome & Frosted & Clear Glass; Mount: Brushed Satin Chrome;
Material: Housing: Aluminium; Mount: Metal;
Input Voltage: 220-240V AC
Wattage: 10W
Kelvin: 3000K
Lumens: 614lm
Beam Angle: 120 Degree
Power Factor: 0.5

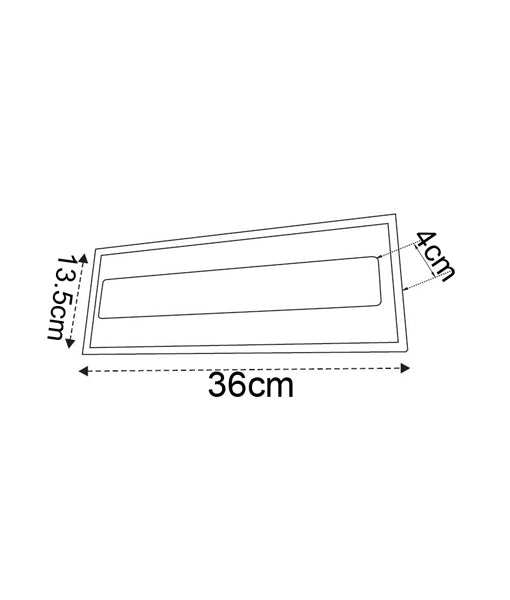

Diameter / Width: 360mm
Height: 135mm
Box Size: 40x19x10cm
Box Weight: 1.73kg

Brochure: BARCELONA (668.68 KB)
Technical Spec: BARCELONA (88.53 KB)
