Key Features:

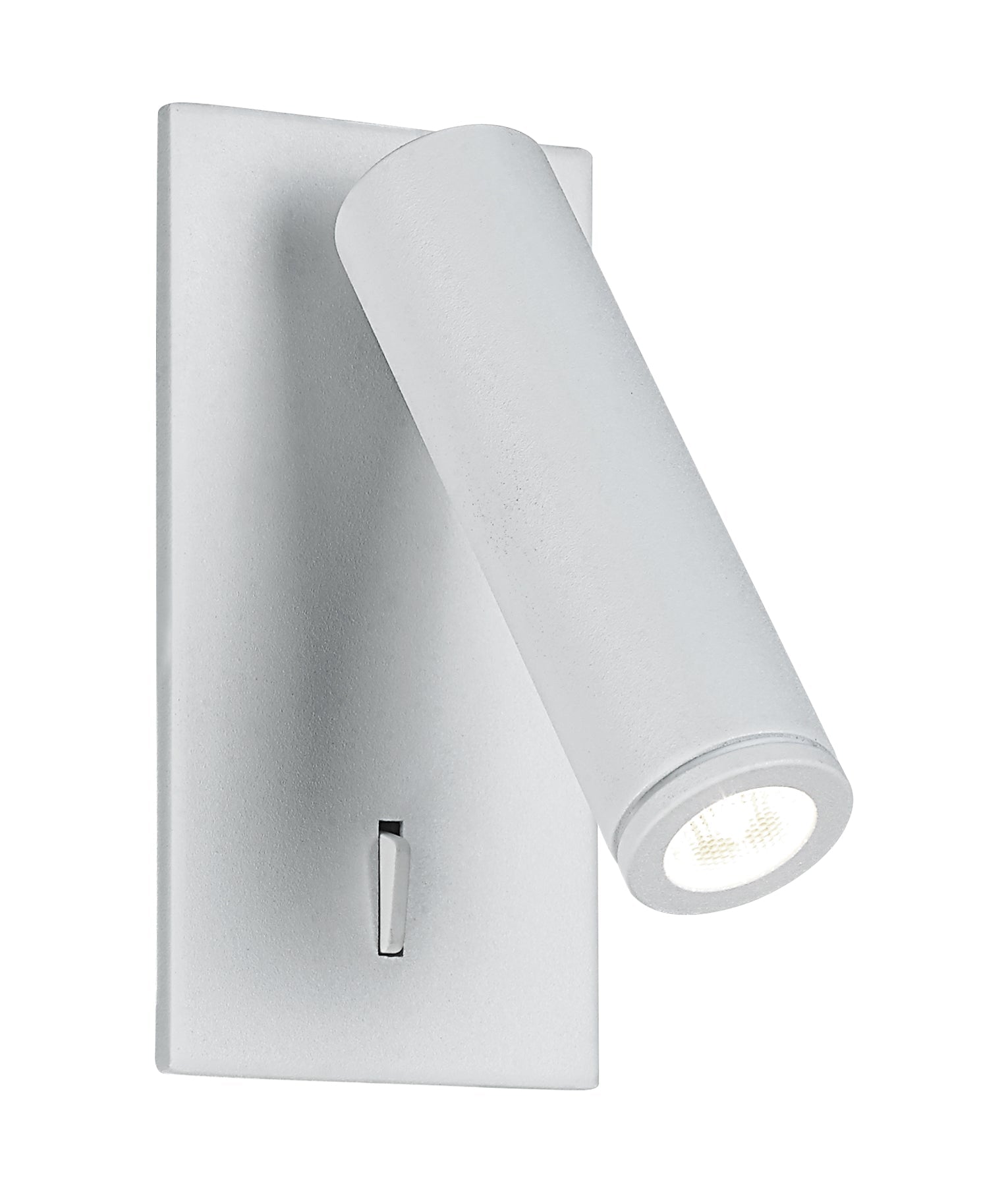

• LED surface mounted wall light / reading light
• Input voltage range: 220-240V AC 50/60Hz
• Matte white
• Material: aluminium alloy, iron back plate
• 12V inbuilt constant current driver included
• Driver output voltage range: 2.5-4V
• Driver input current: 0.1A
• Driver output current: 0.7A
• Driver will be in the cavity
• Head is rotatable
• On/off switch included on back plate
• LED chips: 1pc 3535
• Power factor: 0.5
• Ambient Temp: -20 to +50°C
• Not suitable for use with dimmers
• Suitable for 2-way switching
• Suitable for use with PIR or Microwave sensors
• IP rating: IP20

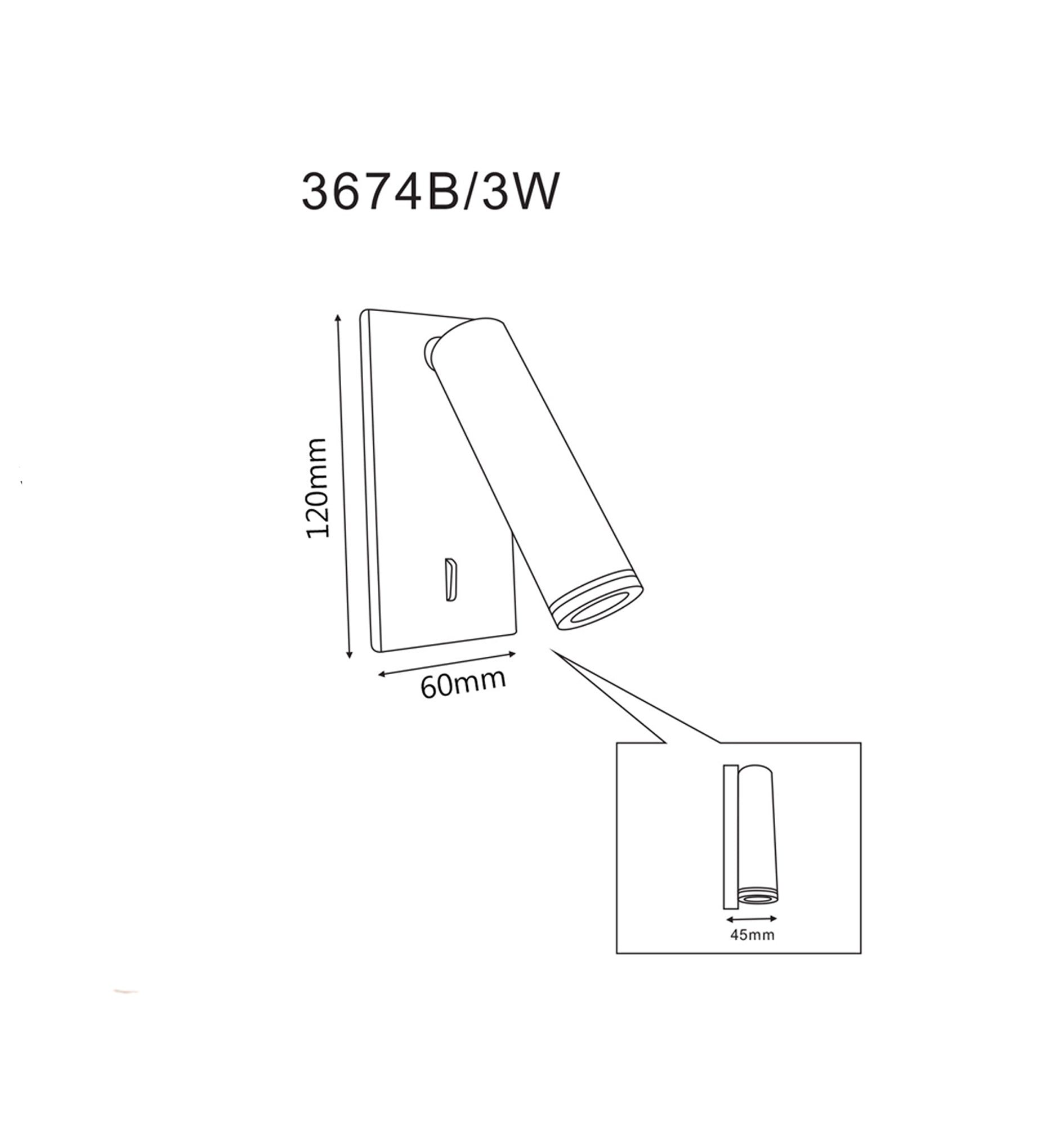

• Back plate: 120x60mm
• Warranty: 2 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)

Part No: LYON
Description: WALL Int S/M ADJ CYLINDER 3W Wh 3K Reader 342 Lm
Colour: Housing: Matte White; Mount: Matte White;
Material: Diffuser: Polycarbonate (Honeycomb); Housing: Aluminium; Mount: Metal;
Input Voltage: 100-240V AC
Wattage: 3W
Kelvin: 3000K
Lumens: 342lm
Beam Angle: 120 Degree
Power Factor: 0.5
CRI: >80
Diameter / Width: 60mm
Height: 120mm
Box Size: 13x10x8cm
Box Weight: 0.43kg

Brochure: LYON (619.16 KB)
Technical Spec: LYON (83.21 KB)
