Key Features:

• Fits Australian standard wall switch plate apertures (eg. the trader ranges, plus HPM, Legrand and Clipsal ranges)
• Separately switched 2-wire design-no neutral wire connection required for wall plate retrofit installation
• Inbuilt overload protection and short circuit protection
• Incorporates a thermal fuse
• Rotary control
• Protected against damage from connection to incompatible inductive load types (ig. motor loads), via conduction angle wind-back
• Complies with all relevant Australian standards
• "Soft-start" help prolong lamp and driver life
• Rated power: 300W
• Operating temperature: 0 to 35°C
• Warranty: 3 year replacement warranty

Product Application:

• Can directly replace the existing wall switch to adjust dimmable LED lamp, halogen lamp and dimmable CFL.
• Suitable for public places such as family bedroom. apartment, hotel, and hospital and so on.

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)

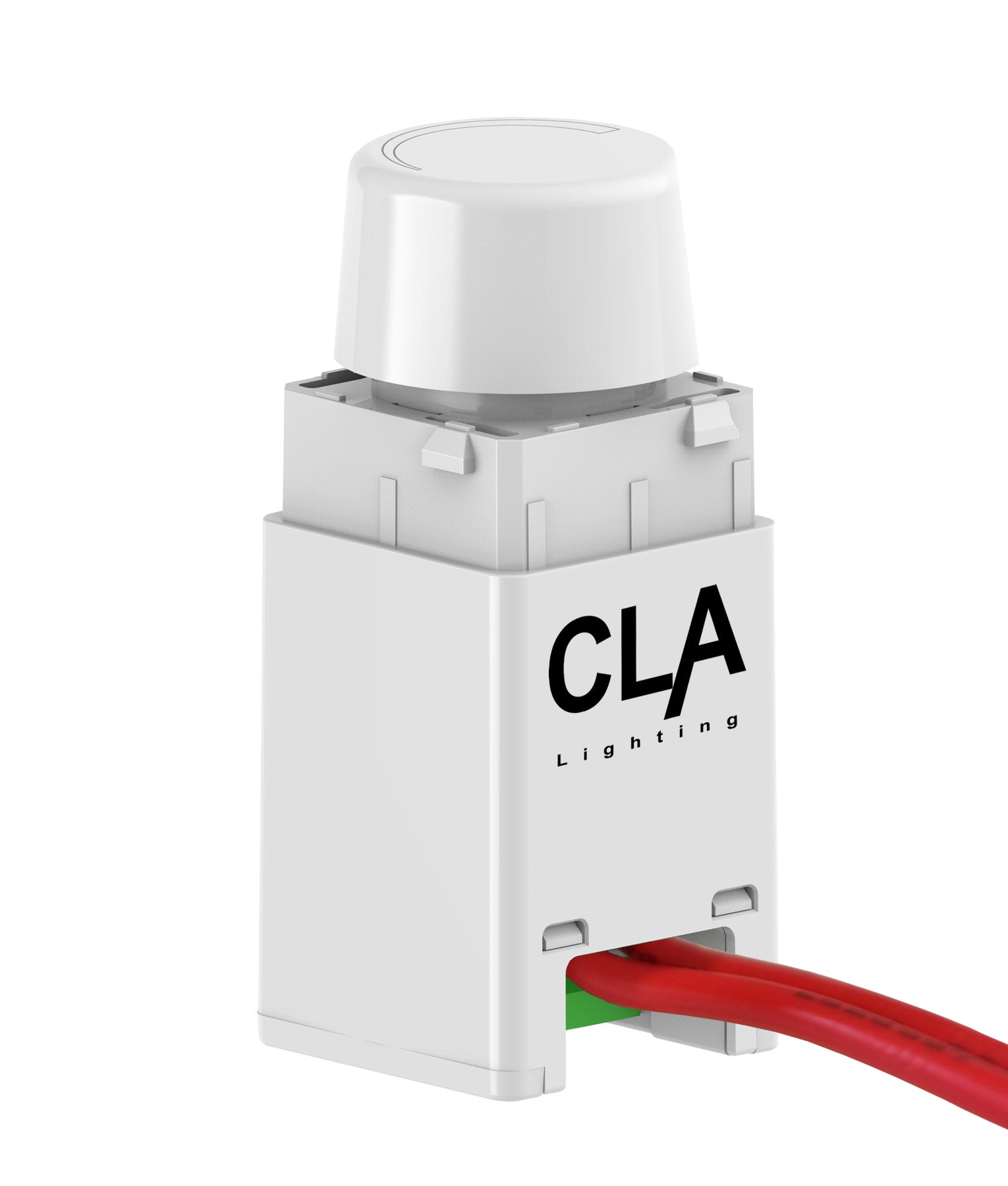

Part No: LYNX1
Description: DIMMER TRAILING EDGE Rotary Universal 3-300W (LED / HAL / CFL and INCAND) (LED/CFL - Max Load 200W) WTY 3YR
Colour: White
Material: PC
Input Voltage: 220-240V 50Hz
Wattage: 300W

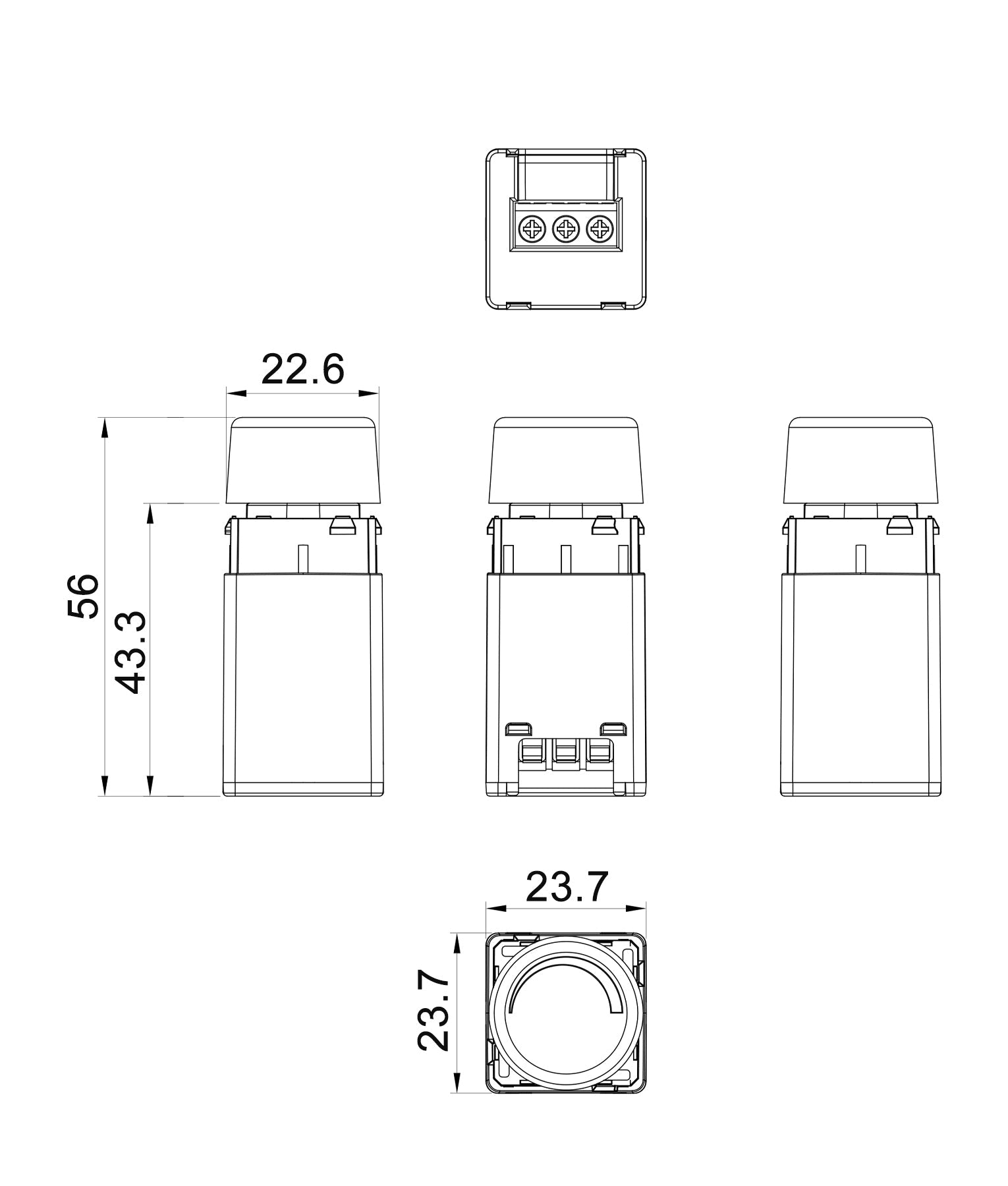

Diameter / Width: 22.6mm
Height: 43.3mm
Box Size: 3x3x5.5cm
Box Weight: 0.03kg
Carton Qty: 1/300

Brochure: LYNX1 (417.37 KB)
Technical Spec: LYNX1 (592.04 KB)
