Key Features:

• Input voltage range: 180-260V AC 50/60Hz
• Constant current LED driver included
• Material: aluminium & PC
• LED chips: SMD2835
• Power factor: >0.5
• PIR sensor type
• Max.detection diameter radius: 5m
• Time delay 90 seconds
• Detection range: 80°
• Block time: 0.2 seconds
• Not suitable for dimming
• Suitable for 2-way switching
• Ambient temp: -20 to 45°C
• Not suitable for dimming
• Suitable for 2-way switching
• IP rating: IP20
• Sensor operates Day and Night (No Manual Override)
• IC-F rated
• Warranty: 3 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

Part No: MOTION1

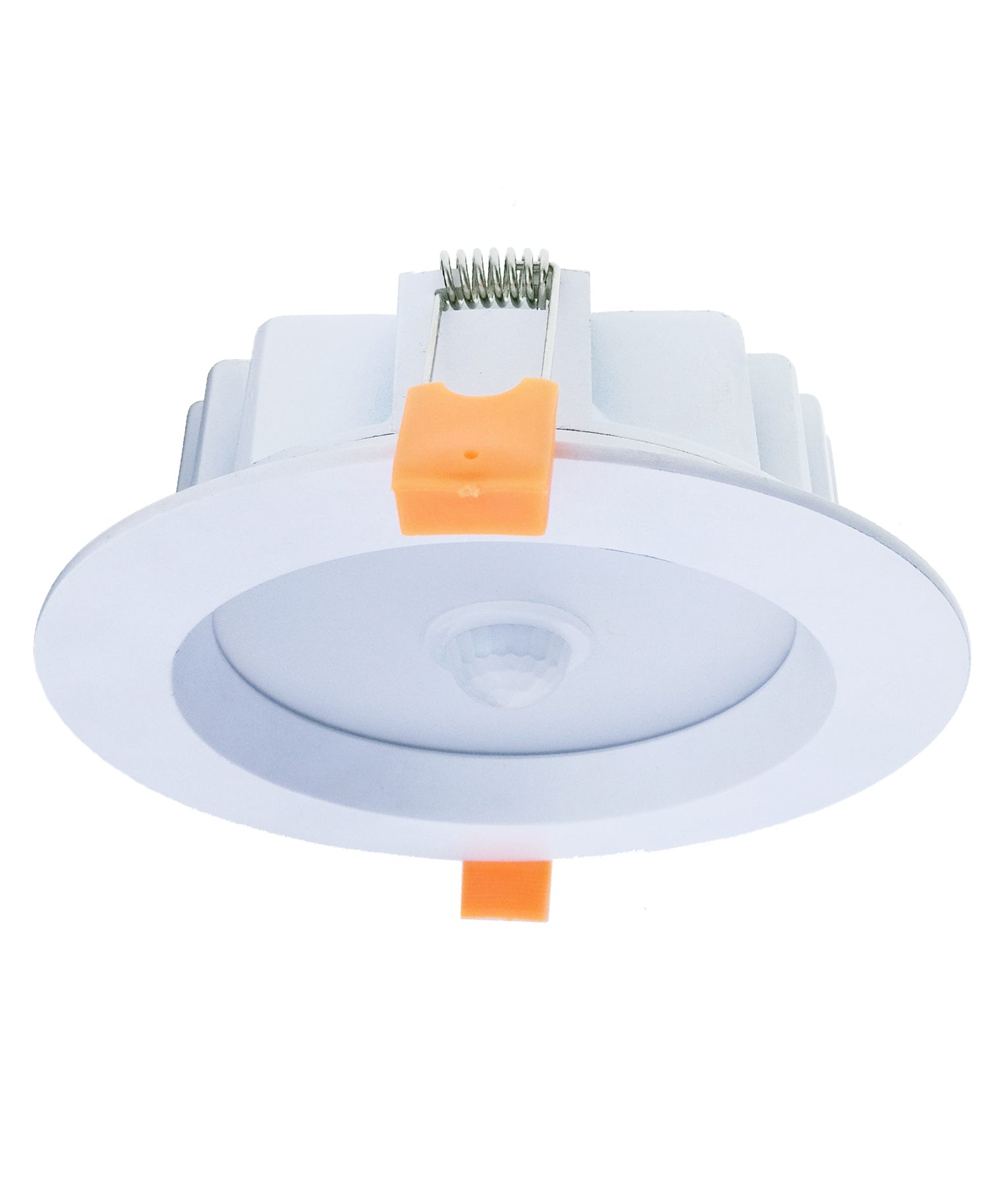

Description: D/L FIXED 10W RND WH 3K IP20 90mm w/Motion Sensor 800 Lm
Colour: F & P Colour: Black; Housing: White;
Material: Diffuser: Polycarbonate; Faceplate: Aluminium; Housing: Aluminium; Spring: Stainless Steel;
Input Voltage: 180-264V AC
Wattage: 10W
Kelvin: 3000K
Lumens: 800lm
Beam Angle: 80 Degree
Power Factor: 0.5
CRI: 80

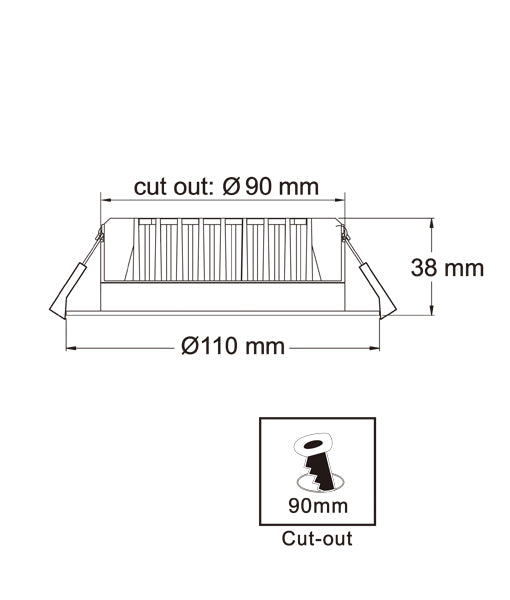

Diameter / Width: 38mm
Cut out: 90mm
Box Size: 13x13x9cm
Box Weight: 0.4kg

Brochure: MOTION1-4 (688.74 KB)
Technical Spec: MOTION1-4 (261.51 KB)
