Key Features:

• Input voltage: 12V AC/DC
• Driver input voltage: 12V 50/60Hz
• Driver output voltage: 18V
• Driver input current: 1100mA
• Driver output current: 260mA
• Driver inrush current: 30A
• Housing & heat sink: aluminium & plastic
• LED chips: 6pcs SMD2835
• Wattage: 6W (=40W incandescent globe)
• Power factor: ≥0.5
• CRI: 80
• Ambient temp: -15 to 40°C
• Not suitable for dimming
• Suitable for 2 way switching
• Suitable for use with 3 wire PIR or Microwave sensors
• IP rating: IP40
• External constant voltage AC/DC control gear required
• Warranty: 1 year replacement warranty

Part No: MR1601A

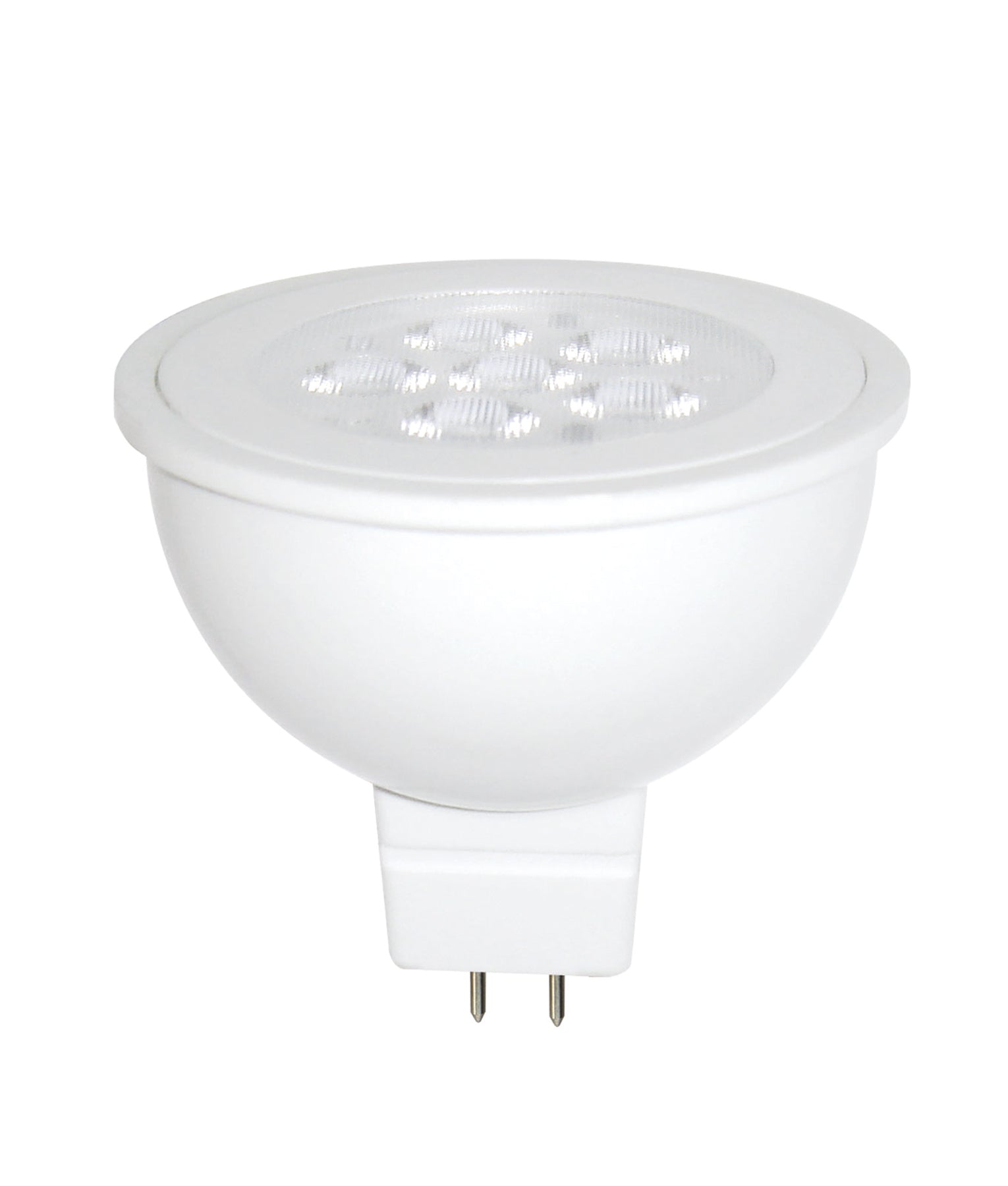

Description: GLOBE LED 12V AC/DC MR16 6W 3000K Wh 480 Lm
Colour: Housing: White;
Material: Diffuser: Plastic; Housing: Plastic;
Input Voltage: 12V AC/DC
Wattage: 6W
Kelvin: 3000K
Lumens: 480lm
Beam Angle: 38 Degree
Power Factor: >0.5
CRI: 80

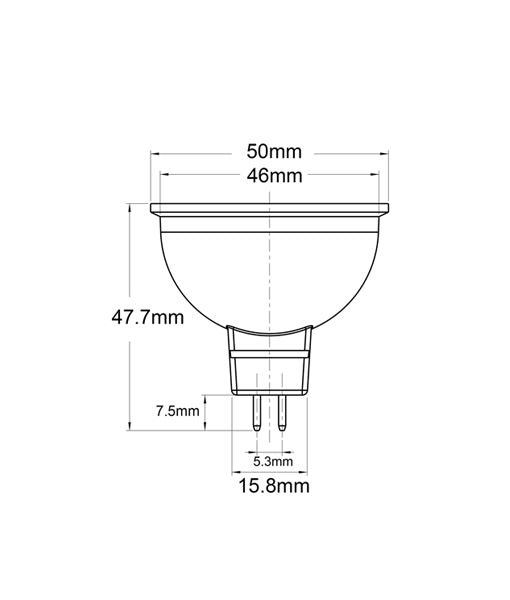

Diameter / Width: 50mm
Height: 47.7mm
Box Size: 5x5x5cm
Box Weight: 0.06kg

Brochure: MR1601-02A (390.94 KB)
Technical Spec: MR1601A-02A (51.17 KB)
Compatible Drivers List (237.45 KB)
