Key Features:

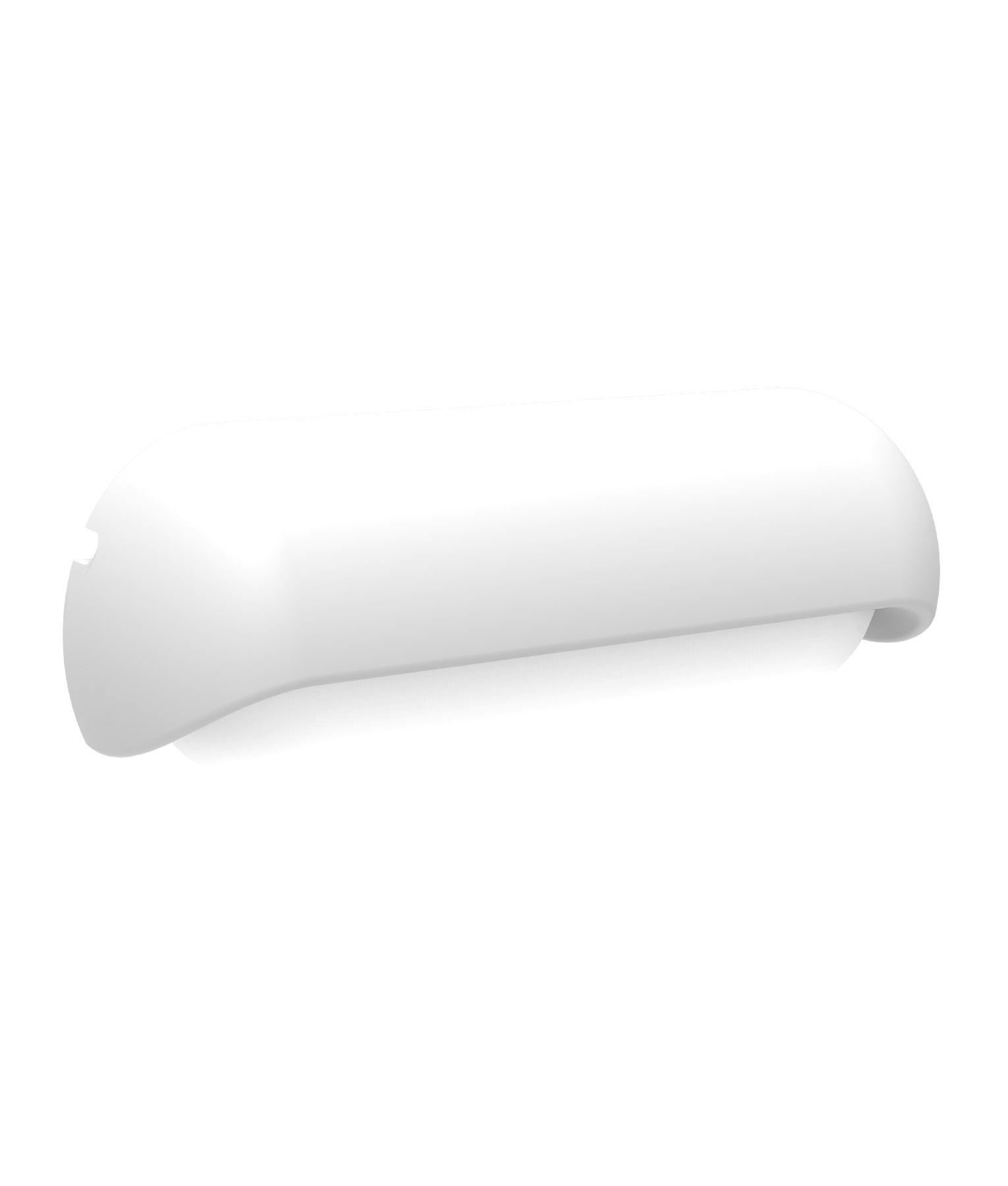

• Exterior LED surface mounted eyelid wall lights
• Input voltage range: 100-240V AC 50/60Hz
• Inbuilt constant current driver included
• Driver output voltage: 18-42V
• Driver input current: 0.065A
• Driver output current: 300mA
• Housing & heatsink: aluminium
• Diffuser: PC
• Back plate: PC
• LED chips: 12pcs 3030
• Power factor: >0.5
• Ambient Temp: -20 to 50°C
• Not suitable for use with dimmers
• Suitable for 2-way switching
• Suitable for use with PIR or Microwave sensors
• IP rating: IP65

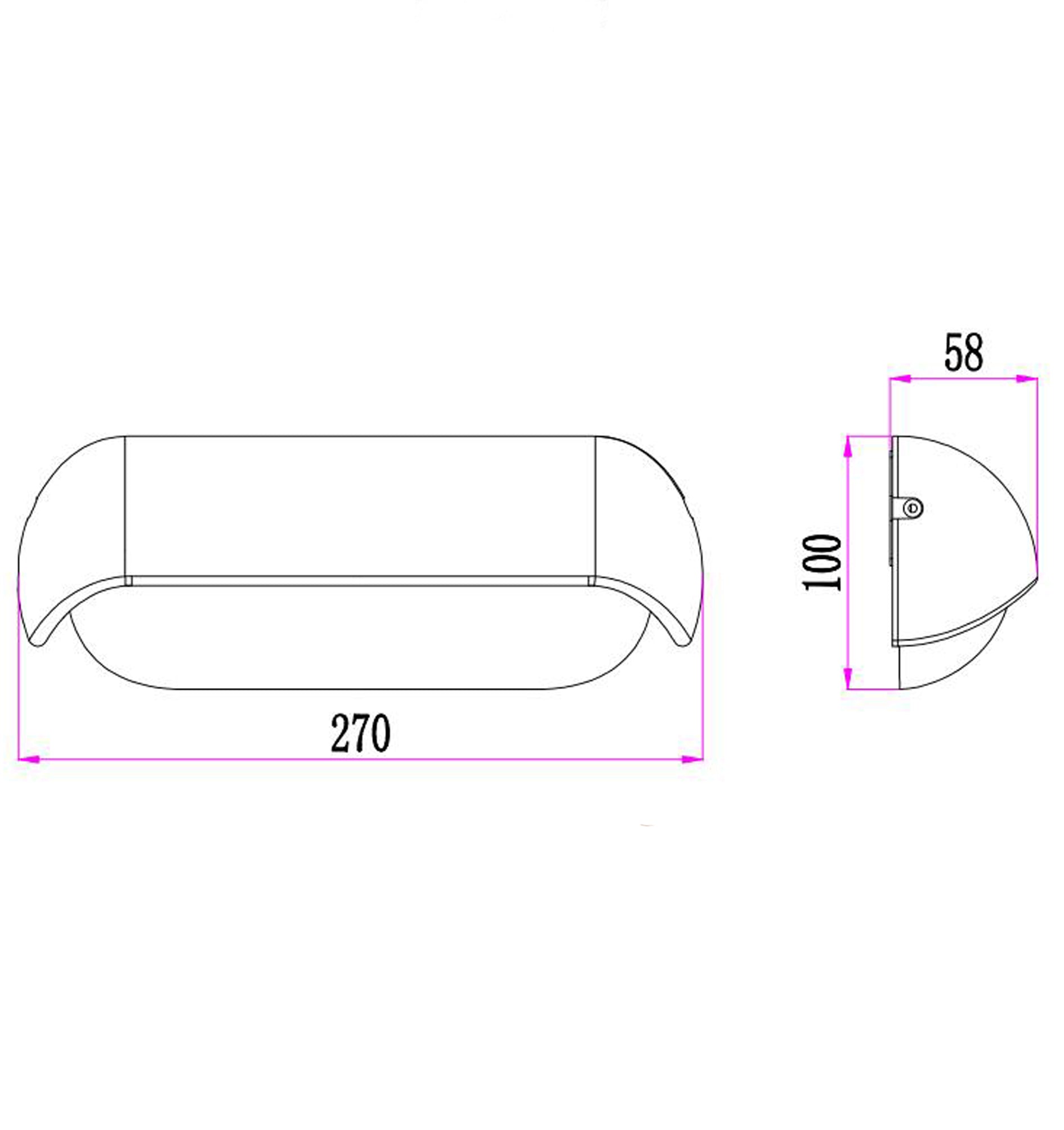

• Back plate: 270x100mm
• Warranty: All Clearance items have revised shorter warranty periods differing from the package print. CONDITIONS APPLY. Please contact our sales team for information.


*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.

Part No: AKEN2
Description: WALL S/M 13W RECT Wh 3K IP65 Eyelid Opal Diff 960 Lm
Colour: Housing: White;
Material: Diffuser: Polycarbonate; Housing: Aluminium; Mount: Polycarbonate;
Input Voltage: 100-240V AC
Wattage: 13W
Kelvin: 3000K
Lumens: 960lm
Beam Angle: 120 Degree
Power Factor: 0.5
CRI: 80
Diameter / Width: 270mm
Height: 100mm
Box Size: 28x11x8cm
Box Weight: 0.94kg

Brochure: AKEN1-2 (707.91 KB)
Technical Spec: AKEN1-2 (138.89 KB)
IES: AKEN2 (9.34 KB)
