Product Description

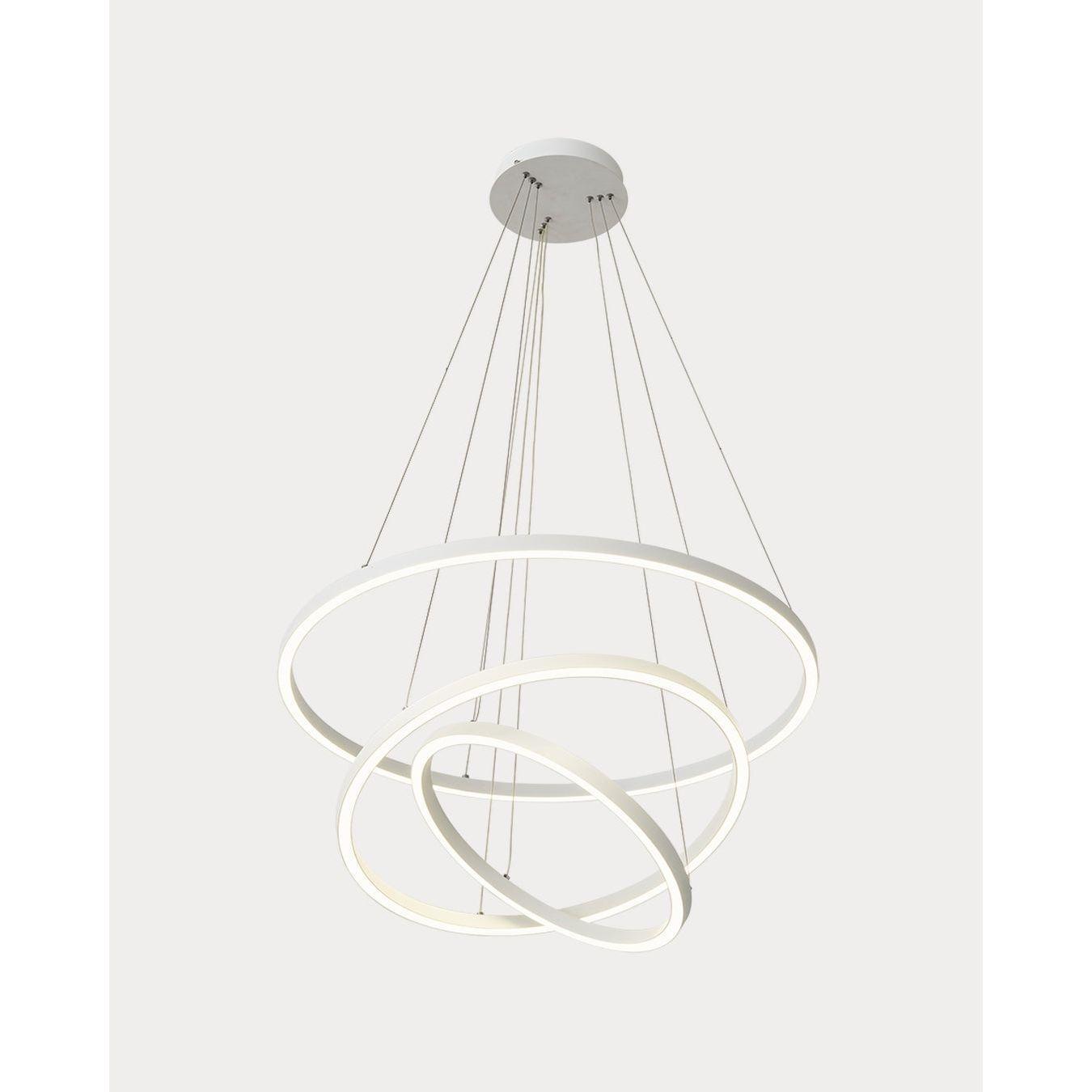

Nimbus luminaries are available in a selection of diameters from 450mm to 1500mm. The extrusion is joined perfectly and seamlessly to form a slimline LED ring. Download the data sheet below for more information.
Dimensions
Profile Size: 20x25mm H
- 450/600/800mm
- 600/800/1000mm
- 800/1000/1200mm
- 1000/1200/1500mm
Diffuser
PMMA- Satin frosted
Mounting options
- BTC - back to canopy (standard)
- DTC - direct to ceiling (optional) no canopy supplied
Electrical Configuration
Output
- 450/600/800mm = 102 Watts 7390 lumens
- 600/800/1000mm = 138 Watts 8900lumens
- 800/1000/1200mm = 167 Watts 10,284 lumens
- 1000/1200/1500mm = 197 Watts 12,400 lumens
CCT
- 3000K (Warm White)
- 4000K (Cool White) - Indent line
- 5000K (Daylight) - Indent line
Dimming
- Phase cut included (450/600/800mm only)
- 1-10 Volt included (600/800/1000mm +)
- SwitchDIM optional
- DALI optional
Finish Options
Texture Black (PC)
Texture White (PC)
Brushed Gold
Brushed Nickel
Tarnished Brass
