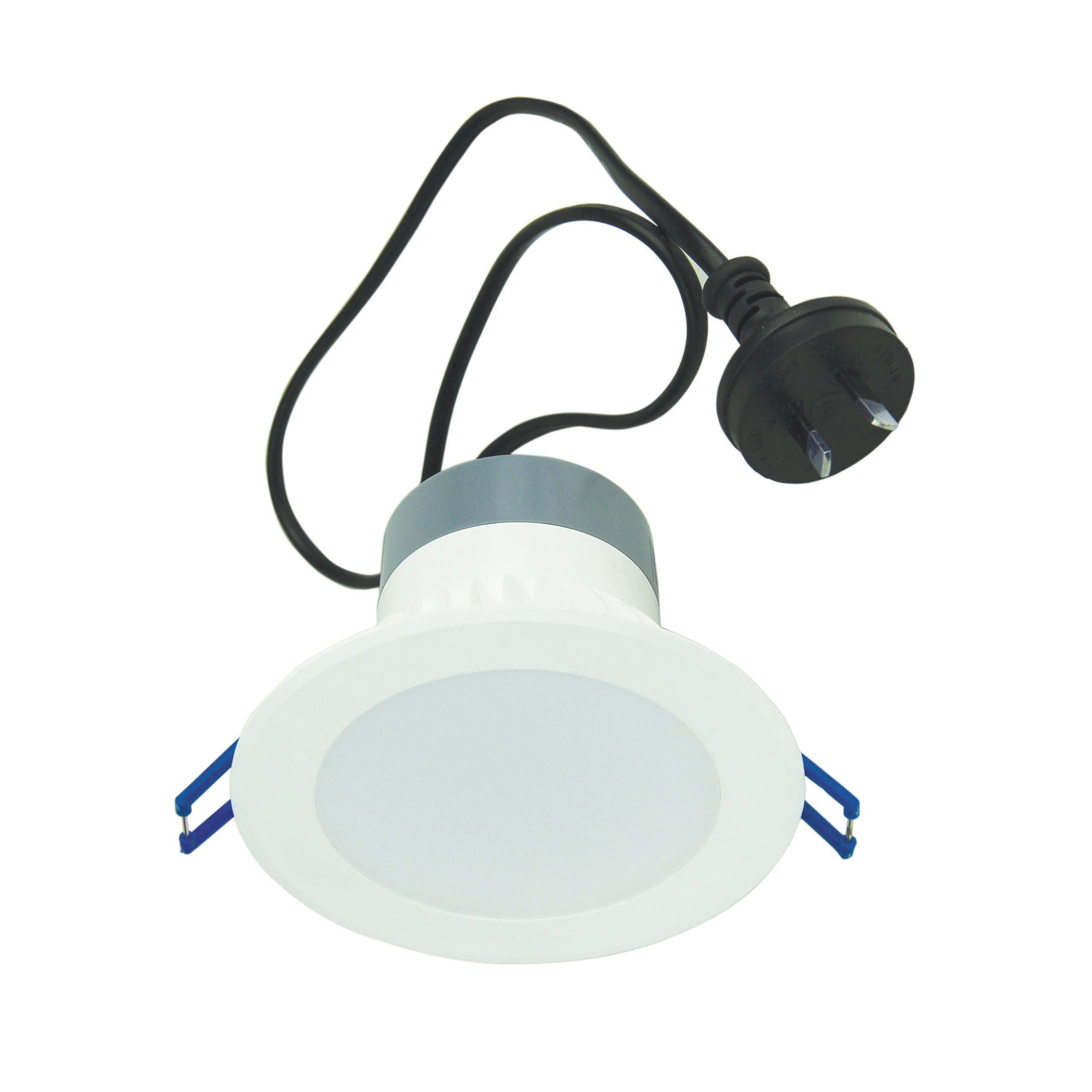

10W PROTON LED 3000K White - 10W / 3000K LED Recessed with Flex and Plug
The powerful and efficient PROTON LED recessed light sits flush along your ceiling and is supplied with a flex-and-plug for easy installation. Dimmable with most LED friendly dimmers. Ideal for use in many applications, the Proton is available in white or black, in three colour temperatures, to suit your preference. CA90 insulation rating – abutted only.
Key Features
| Shipping Weight | 0.7 kg |
| Shipping Carton Dimensions | 10.0 × 13.0 × 13.0 cm |
| Brand |
Lighting Factory |
| Colour |
White |
| Globe Type |
INTEGRAL.LED |
| Max. Wattage |
10w |
| Voltage |
240V |
| Overall Height |
12 |
| Overall Width |
8 |
| Overall Depth |
12 |
| Item Dimensions |
D120 C90 Rec80 |
| Fitting Diameter |
D120 |
| Fitting Cutout |
C90 |
| Fitting Recess |
R80 |
| Primary Material |
ACRYLIC |
| Light Source |
SMD LED |
| Lumen Output |
850lm |
| Colour Temperature |
3000K |
| Colour Rendition (CRI) |
>Ra82 |
| IP Rating |
IP44 |
| IC Rating |
CA90 |
| Supplier Code |
LF3613WH |
| UPI |
9324879201421 |
| Electrician To Install |
This fitting should be installed by a licenced electrician |
| Warranty / Guarantee |
12 Month Replacement Guarantee |
Assembly
If this fitting is supplied unassembled to reduce shipping cost and minimise damage, some assembly by the customer or the installing electrician may be required.
Installation
If this fitting requires installation, connection to the mains electrical supply, that installation must be performed by a licensed electrician in accordance with the wiring standard.
If this is a hardwired light fitting, and not specifically labelled “DIY” it must be installed by a licenced electrician.
OUTDOOR – if this is an outdoor fitting, it must be installed to the appropriate standard. Outdoor lights mounted on the wall or pillar will require the appropriate application of silicon sealant to ensure waterproofing.
Guarantee
GUARANTEE – The majority of our products come with a 12 month replacement guarantee.
In all cases, the product should be returned to the distributor / place of purchase.
CHANGE of MIND – We do not offer a “change of mind” guarantee – however many of our re-sellers do. In all cases contact the re-seller.
SPECIFICATIONS – From time to time we revise product specifications, including dimensions, globe type or maximum wattage. These changes do not constiture a fault under our guarantee.
