Key Features:

• Exterior LED surface mounted step light
• Input voltage range: 12-14V
• 12V external control gear required
• Material: solid brass
• Diffuser: PC
• LED chips: 12pcs 2835 LED
• Power factor: 0.98
• Life time: 40,000hrs
• Ambient temp: -40 to 85ºC
• IP rating: IP65
• Warranty: 2 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.

Part No: STE26

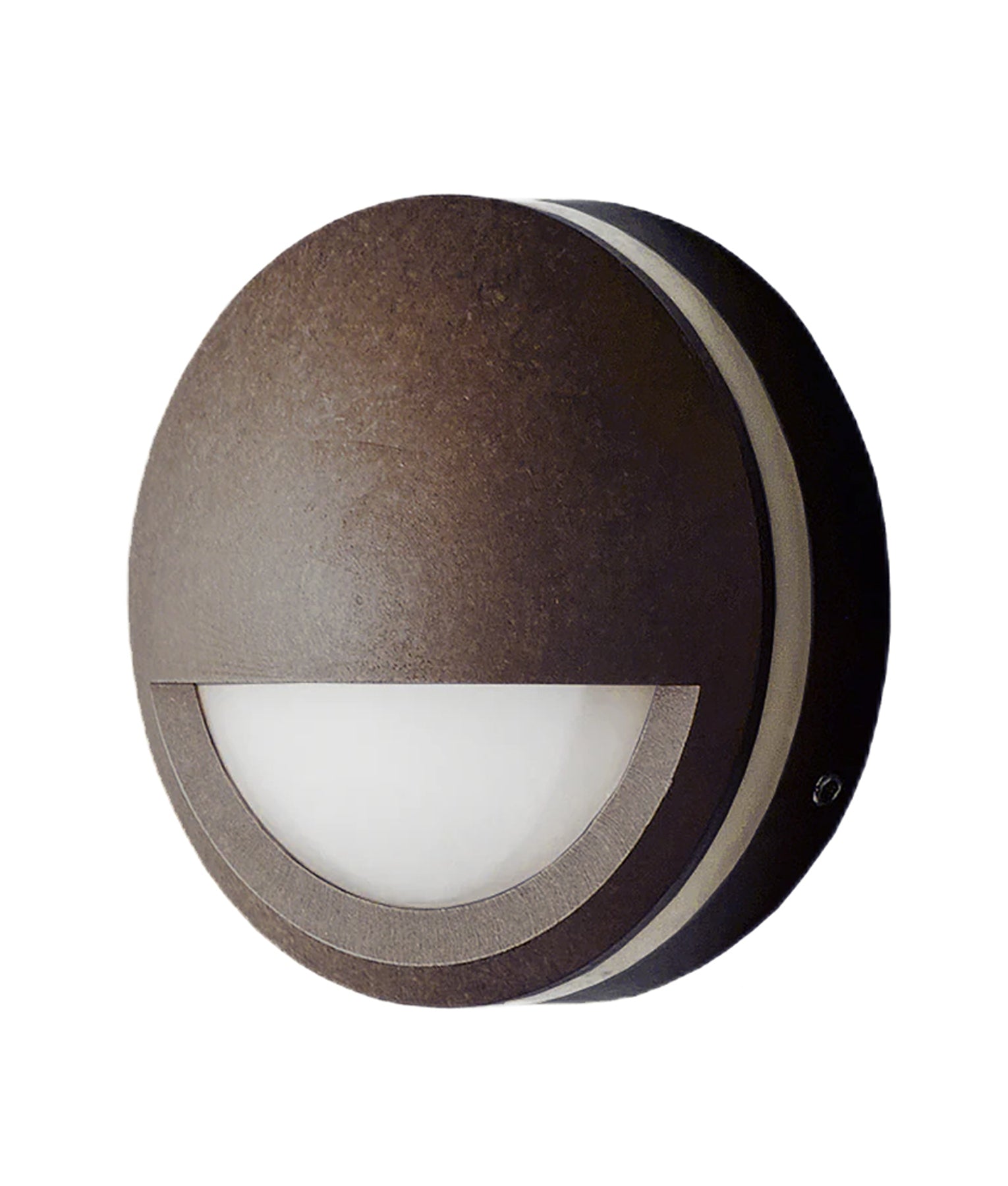

Description: STEP EYELID LED 12V AC/DC S/M Solid Aged Brass 3000K 6W IP65 (480Lumens) OD98mm x D43mm WTY 2YR
Colour: Housing: Aged Brass;
Material: Diffuser: Polycarbonate; Housing: Brass; Mount: Brass;
Input Voltage: 12-14V
Wattage: 6W
Kelvin: 3000K
Lumens: 480lm
Beam Angle: 120 Degree
Power Factor: 0.98
CRI: 75

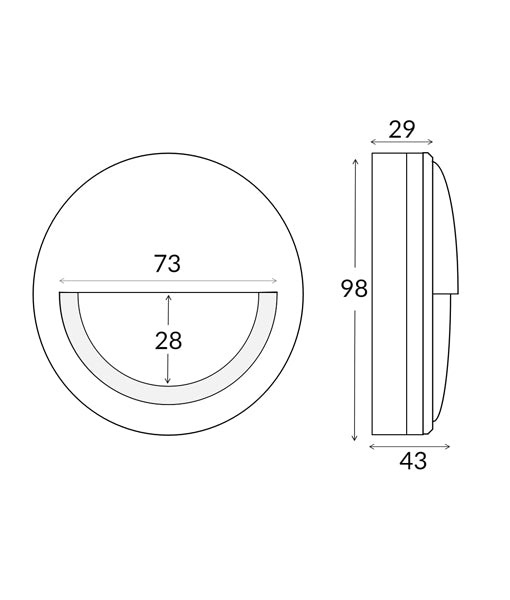

Diameter / Width: 98mm
Box Size: 11x11x5cm
Box Weight: 0.68kg
Carton Qty: 1/20

Brochure: STE19-22 & 26 (833.93 KB)
Technical Spec: STE19-22 & 26 (767.01 KB)
