Key Features:

• Input voltage: 220-240V
• Diffuser: clear PMMA
• Housing: aluminium
• Tri-CCT: 2700K/ 4000K/ 6000K in one fitting
• Switch on rear

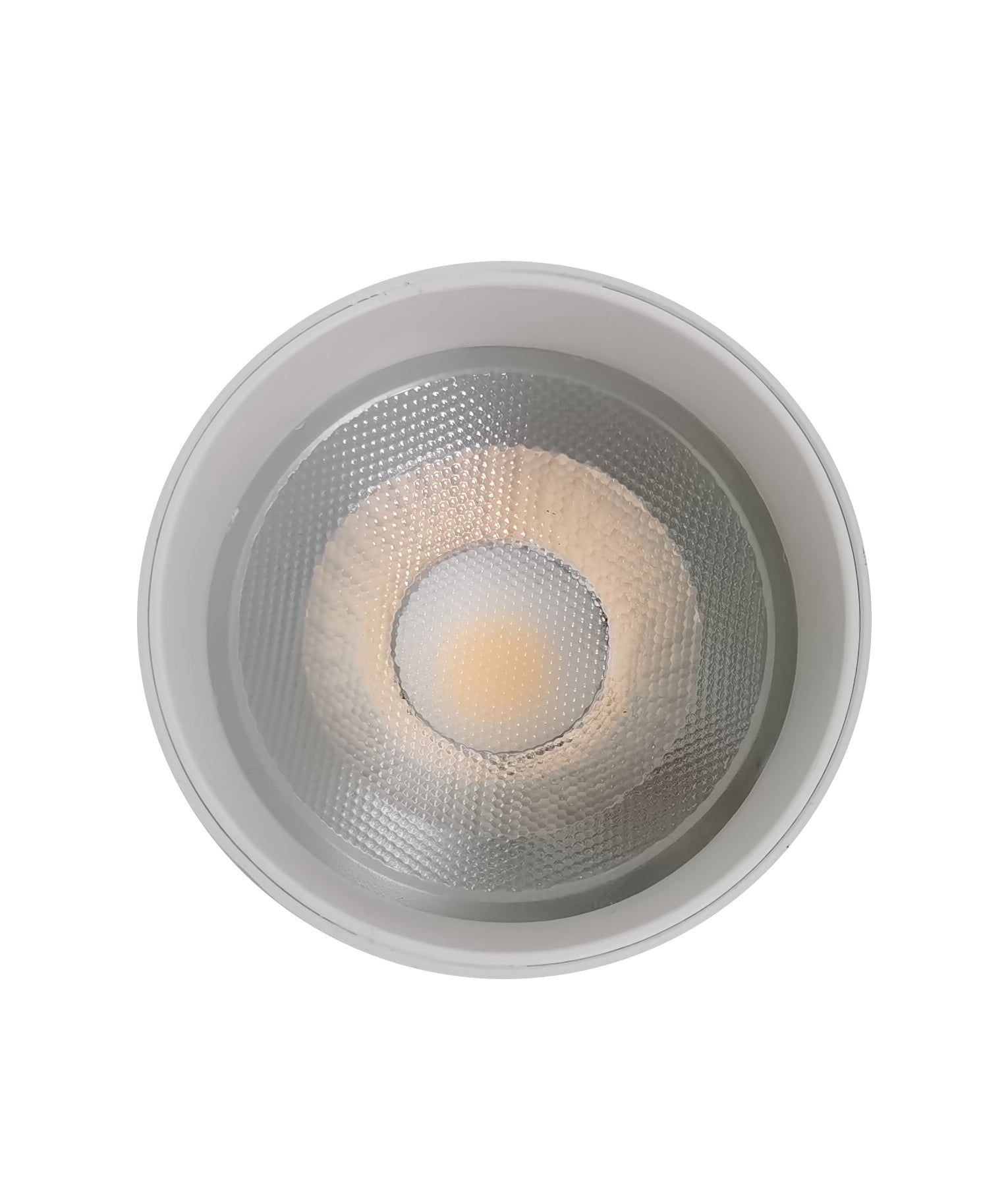

• LED chip: 1pc COB LED
• Rear switch
• Power factor: 0.9
• CRI: ≥90
• Tilt: 90° / Swivel: 330°
• Ambient temperature: -20 to 40°C
• Suitable for dimming
• Suitable for 2-way switching
• IP20
• Warranty: 3 year replacement warranty

Tested & Recommended Dimmers:

• CLA: VELA, LYNX
• Clipsal: 32E450TM 32E450UDM 42E350RUD2M-VW
• Diginet: MEDM
• HPM Legrand: EM400TR

*Please check with Licenced electrician for Min and Max dimmer load. May be compatible with other untested dimmers

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)

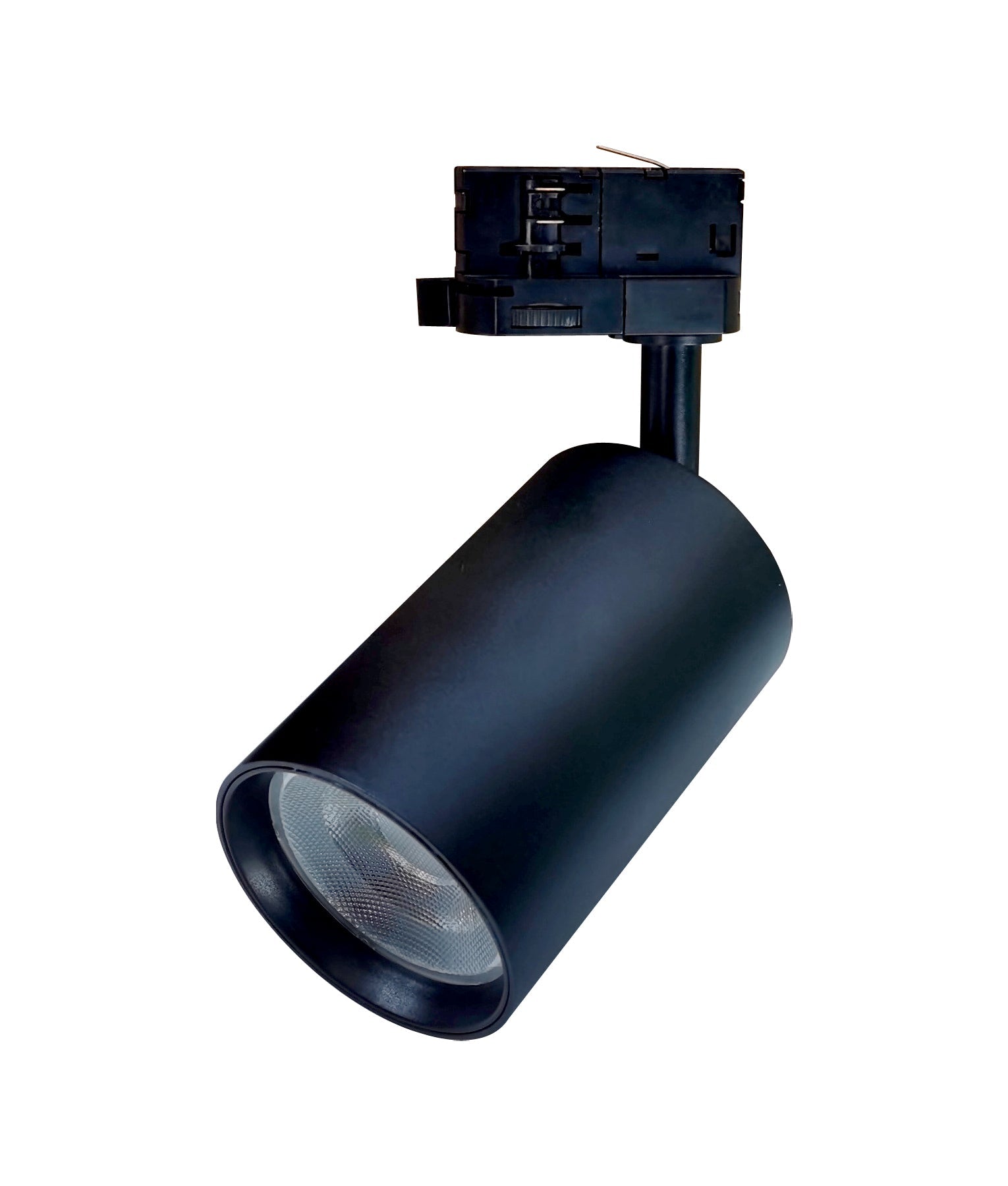

Part No: TRKTRI05
Description: TRACK 4 WIRE 3 Circuit LED HEAD BLK 25W 60D 2.7K (1700Lm)/ 4K (1900Lm)/ 6K (1800Lm) Dimm IP20 WTY 3YR
Colour: Black
Material: Diffuser: clear PMMA; Housing: aluminium
Input Voltage: 220-240V
Wattage: 25W
Kelvin: 2700K / 4000K / 6000K
Lumens: 1700LM / 1900LM / 1800LM
Beam Angle: 60 Degree
Power Factor: 0.9
CRI: >90

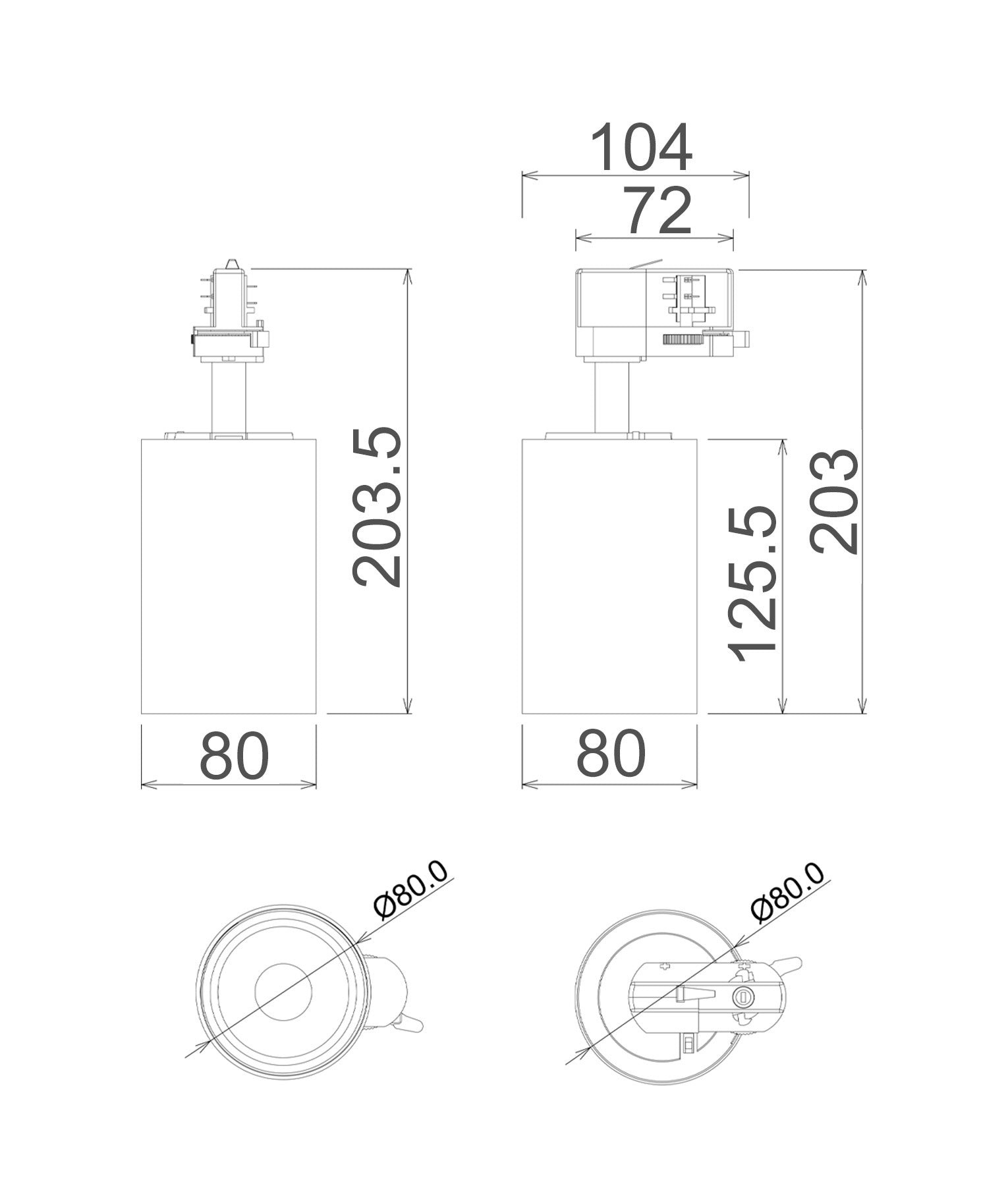

Diameter / Width: 80mm
Height: 125.5mm
Box Size: 10x8.5x21.5cm
Box Weight: 0.4kg
Carton Qty: 1/20

Brochure: TRKTRI05-06 (570.09 KB)
Technical Spec: TRKTRI05-08 (288.13 KB)
IES: TRKTRI05-2700K (2.29 KB)
IES: TRKTRI05-4000K (2.29 KB)
IES: TRKTRI05-6000K (2.29 KB)
IES: TRKTRI06-2700K (2.29 KB)
IES: TRKTRI06-4000K (2.29 KB)
IES: TRKTRI06-6000K (2.29 KB)
