Key Features:

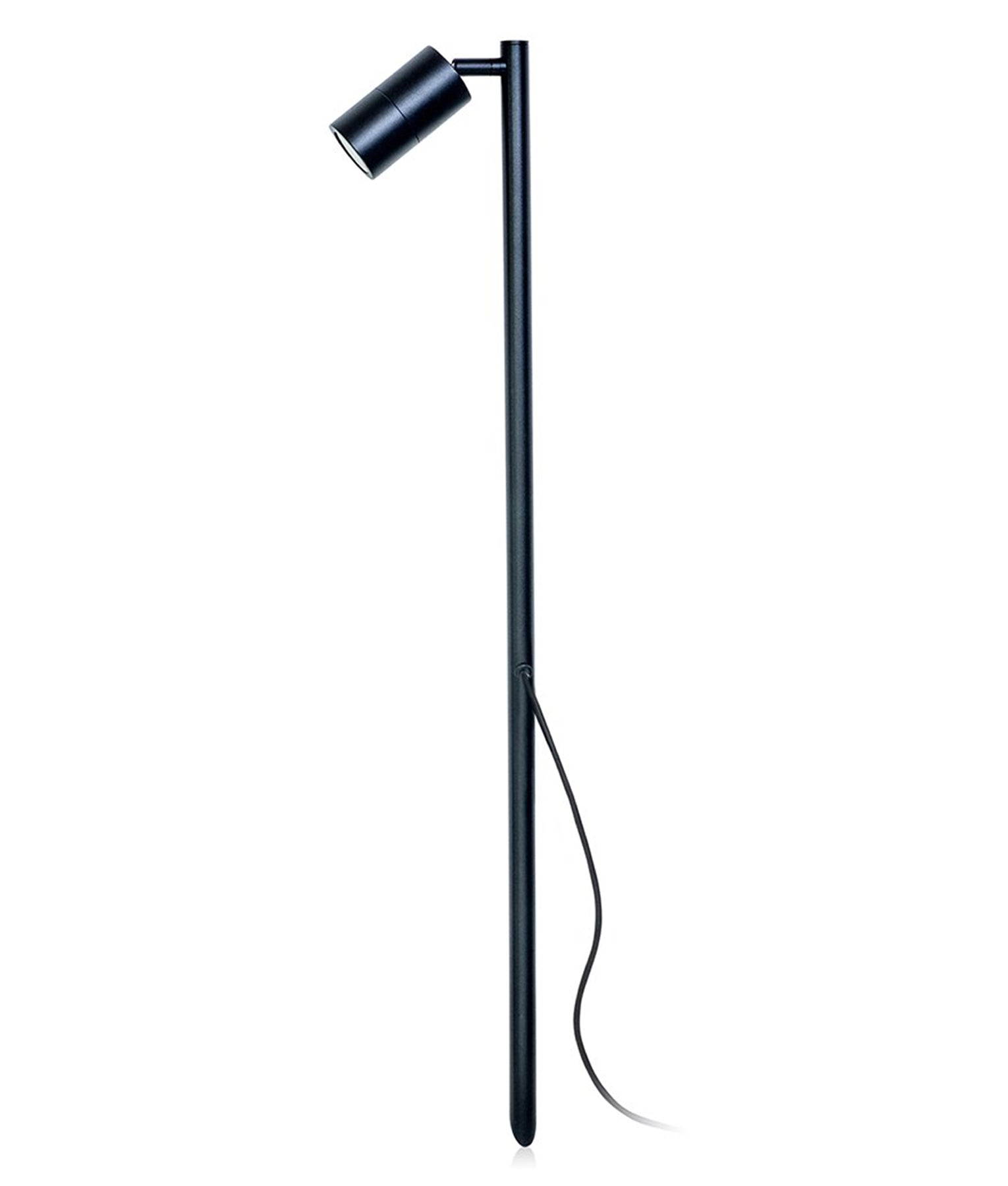

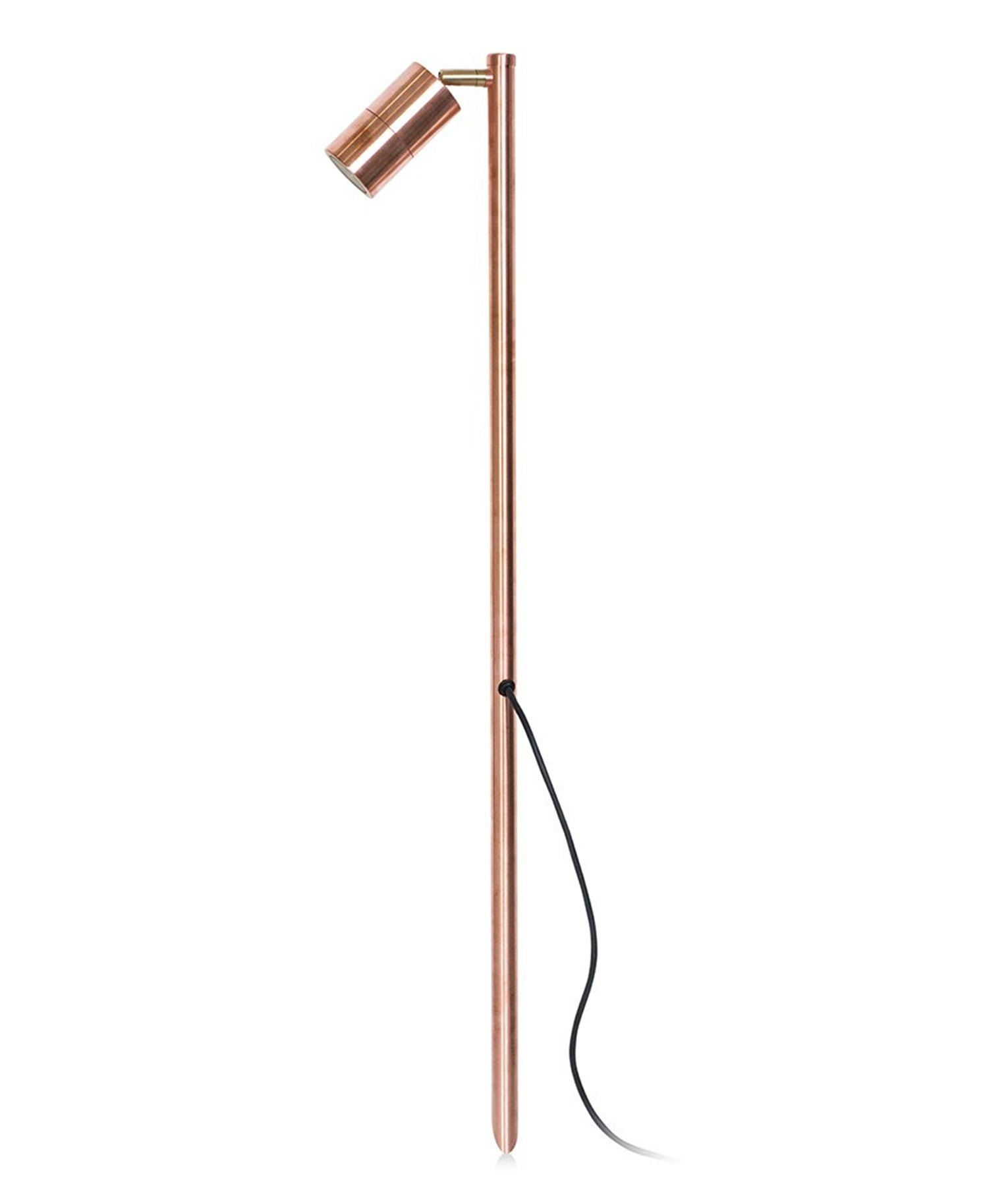

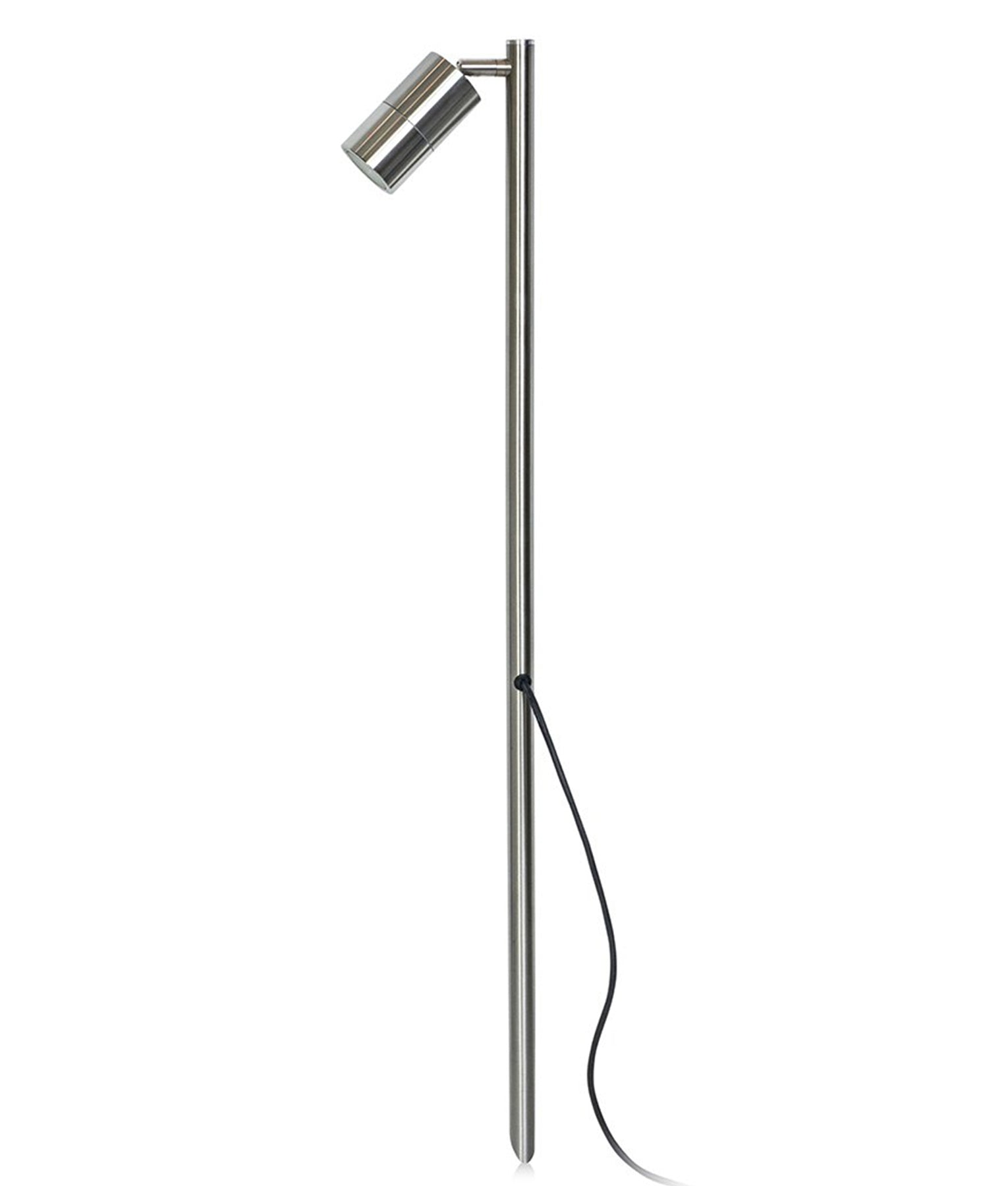

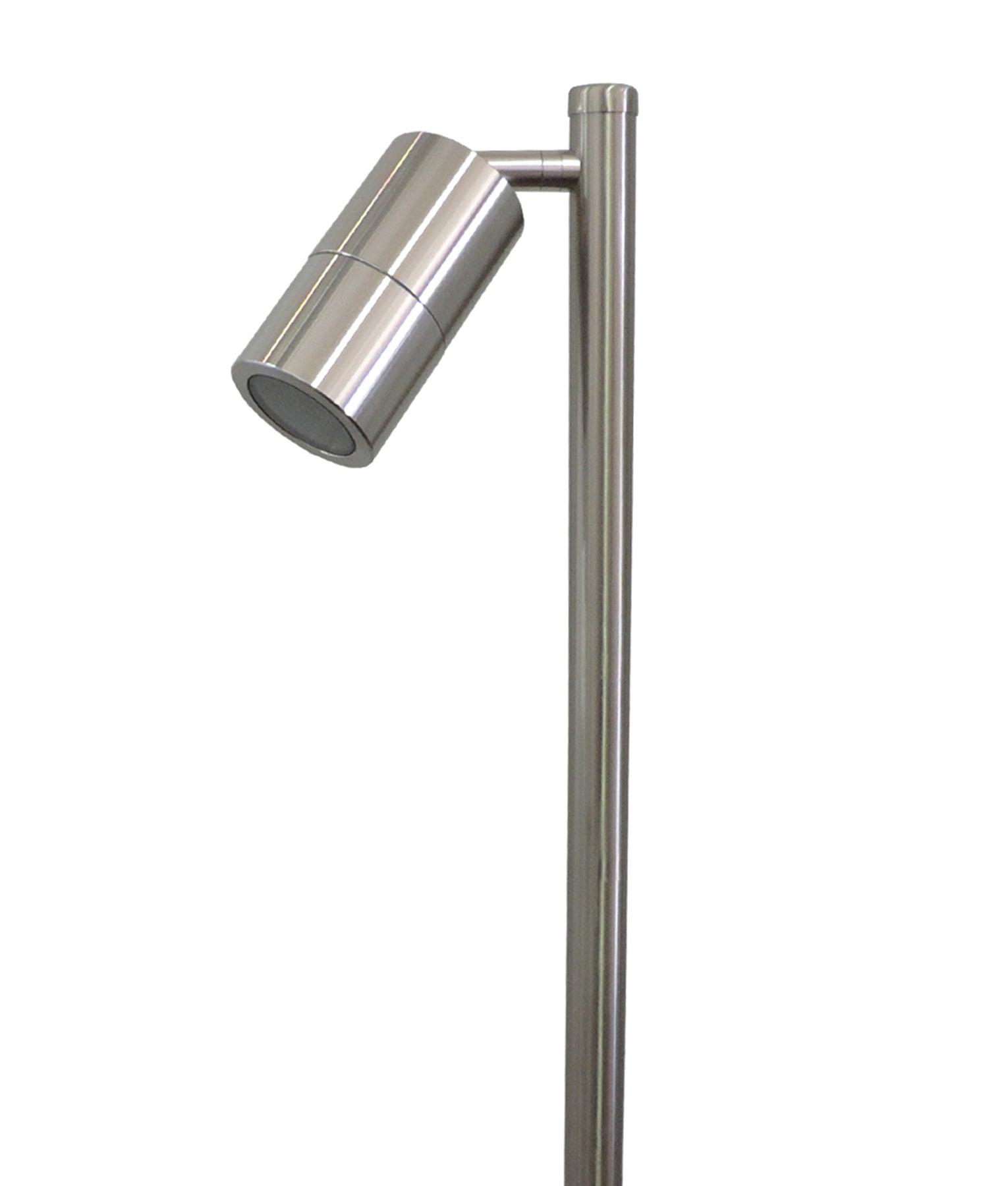

• MR16 garden spike spot lights
• Input voltage range: 12-25V AC/DC
• Material: solid copper / 316 stainless steel / aluminium
• Lamp holder: MR16 (Max.20W)
• Globes not included

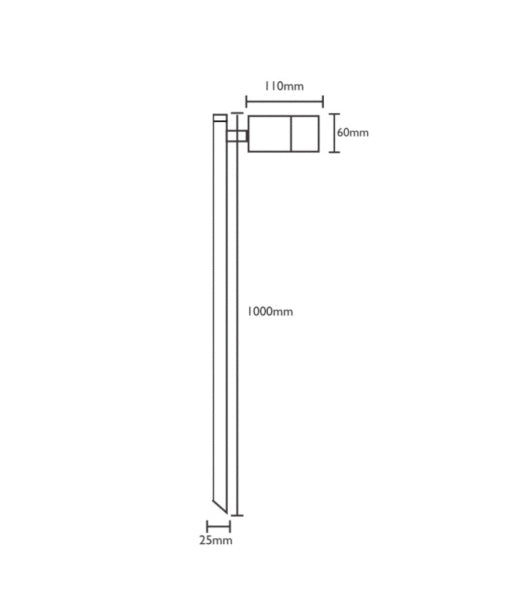

• Spike length: 1000mm
• Cable Length: 900mm (Cable placement: 380mm from the bottom end of the spike)
• External control gear required
• IP rating: IP65
• Warranty: 2 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

To maintain the IP rating please use circular cable in junction. For parallel and single connection we recommend using an appropriate IP68 connector.

*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.

Part No: SPM1ALC
Description: SPIKE S/ADJ 12V MR16 Cop IP65 L1000mm Cable encl Post
Colour: Housing: Copper; Mount: Copper;
Material: Housing: Copper; Mount: Copper;
Input Voltage: 12-25V DC
Lamp Holder: 1xGU5.3 (Max.20W)
Globe Included: No
Height: 110mm
Box Size: 102x12x7cm
Box Weight: 1.7kg

Brochure: SPM1A & SPM2A (775.54 KB)
Technical Spec: SPM (205.82 KB)
