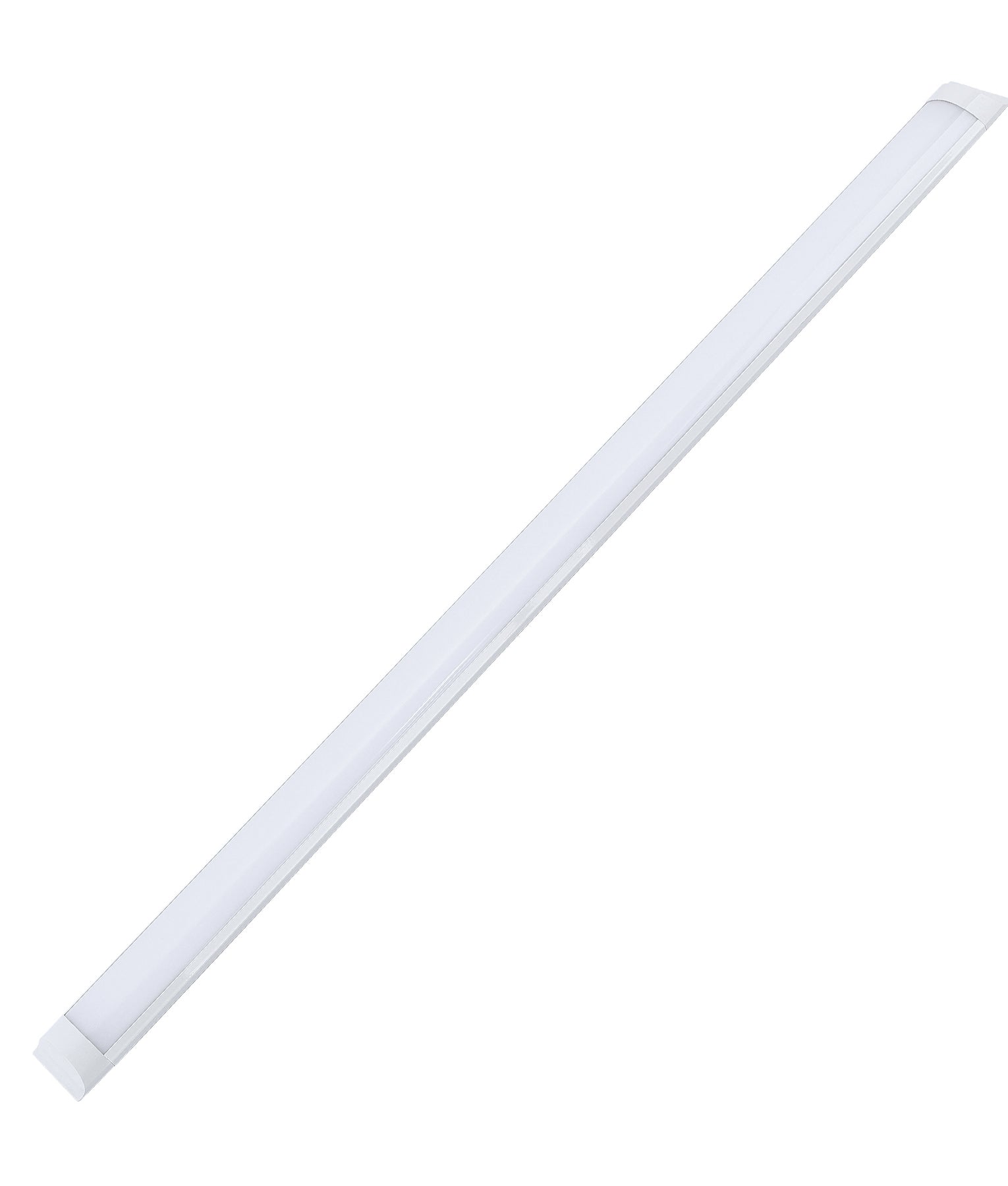

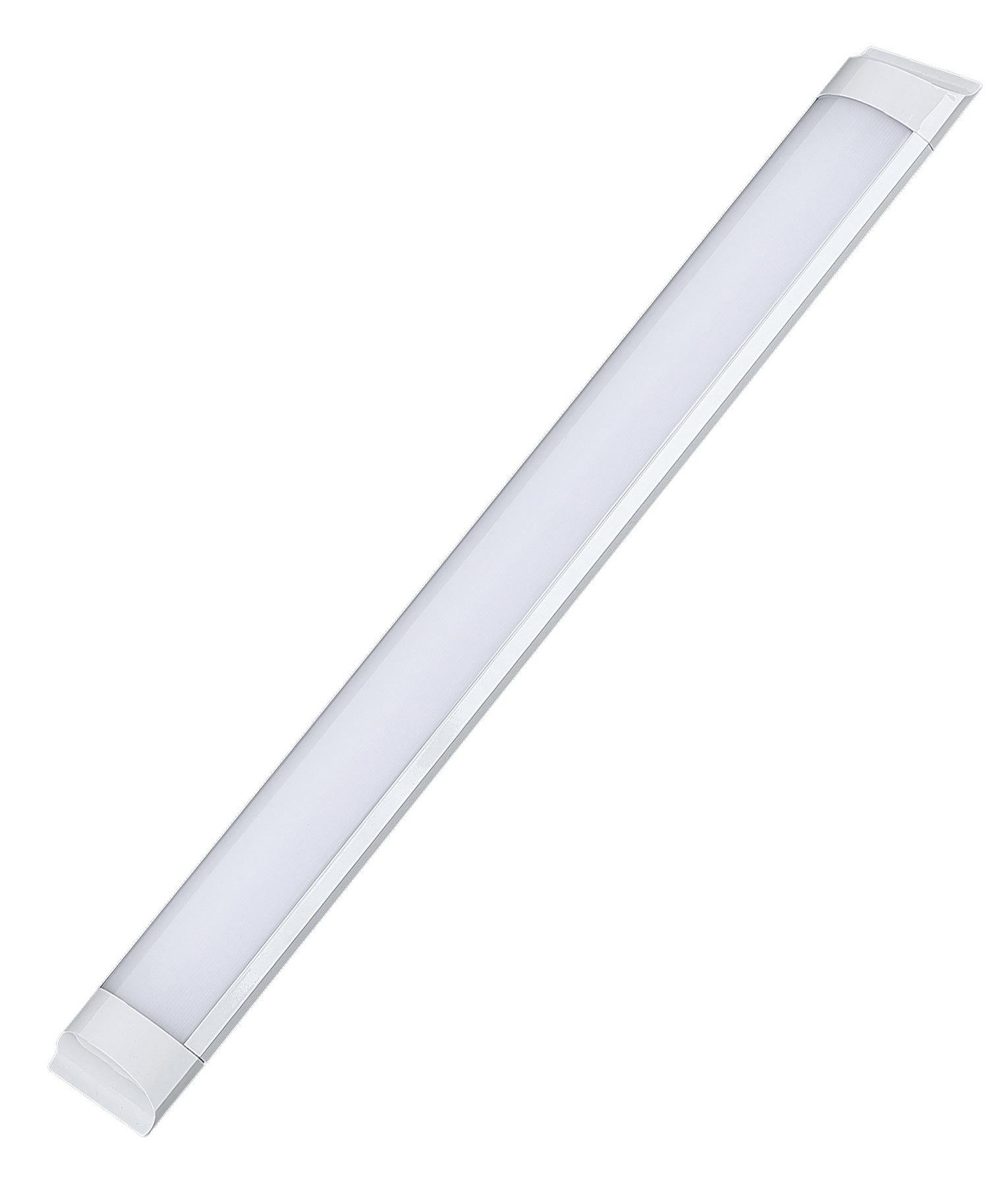

RAZORDM: Interior Surface Mounted LED Dimmable Tri-CCT Battens
$49.00$58.70
Item is in stockHurry! Low inventoryItem is out of stock
Item is unavailable
Key Features:
- Interior surface mounted LED dimmable Tri-CCT battens
- Input voltage range: 220-240V AC 50/60Hz
- Constant current inbuilt driver included
- Housing: powder coated aluminium
- Diffuser: PC
- Heat sink: aluminium
- Central hole in mounting plate
- CCT changeable: 3000K/ 4000K/ 5000K, switch on the fitting
- LED chips: SMD2835
- Power factor: ≥0.9
- Ambient temperature: -20 to 40°C
- Suitable for dimming
- Suitable for 2-way switching
- Suitable for use with 3 wire motion or Microwave sensors
- IP rating: IP20
- Warranty: 3 year replacement warranty
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
Tested & Recommended Dimmers:
- CLA - Trailing Edge: VELA, LYNX1
- Diginet – LEDSmart: MMDM/BP, MMDM/RT
- Clipsal – Universal: 32ELEDM, 32E450UDM, 32E450TM
- HPM – CAT400L, CAT400T
*Please check with Licenced electrician for Min and Max dimmer load. May be compatible with other untested dimmers
Part No: RAZORDM001A
Description: BATTEN LED S/M DIMM 18W Tri 2FT IP20 W 75mm 1700 Lm
Colour: Housing: White;
Material: Diffuser: Polycarbonate; Housing: Aluminium;
Input Voltage: 200-265V AC
Wattage: 18W
Kelvin: 3000K / 4000K / 5000K
Lumens: 1500lm / 1700lm / 1500lm
Beam Angle: 110 Degree
Power Factor: 0.9
CRI: >80
Diameter / Width: 31mm
Height: 600mm
Box Size: 61x8x4cm
Box Weight: 0.4kg
Brochure: RAZORDM001A-002A (987.45 KB)
Technical Spec: RAZORDM001A-002A (86.77 KB)
