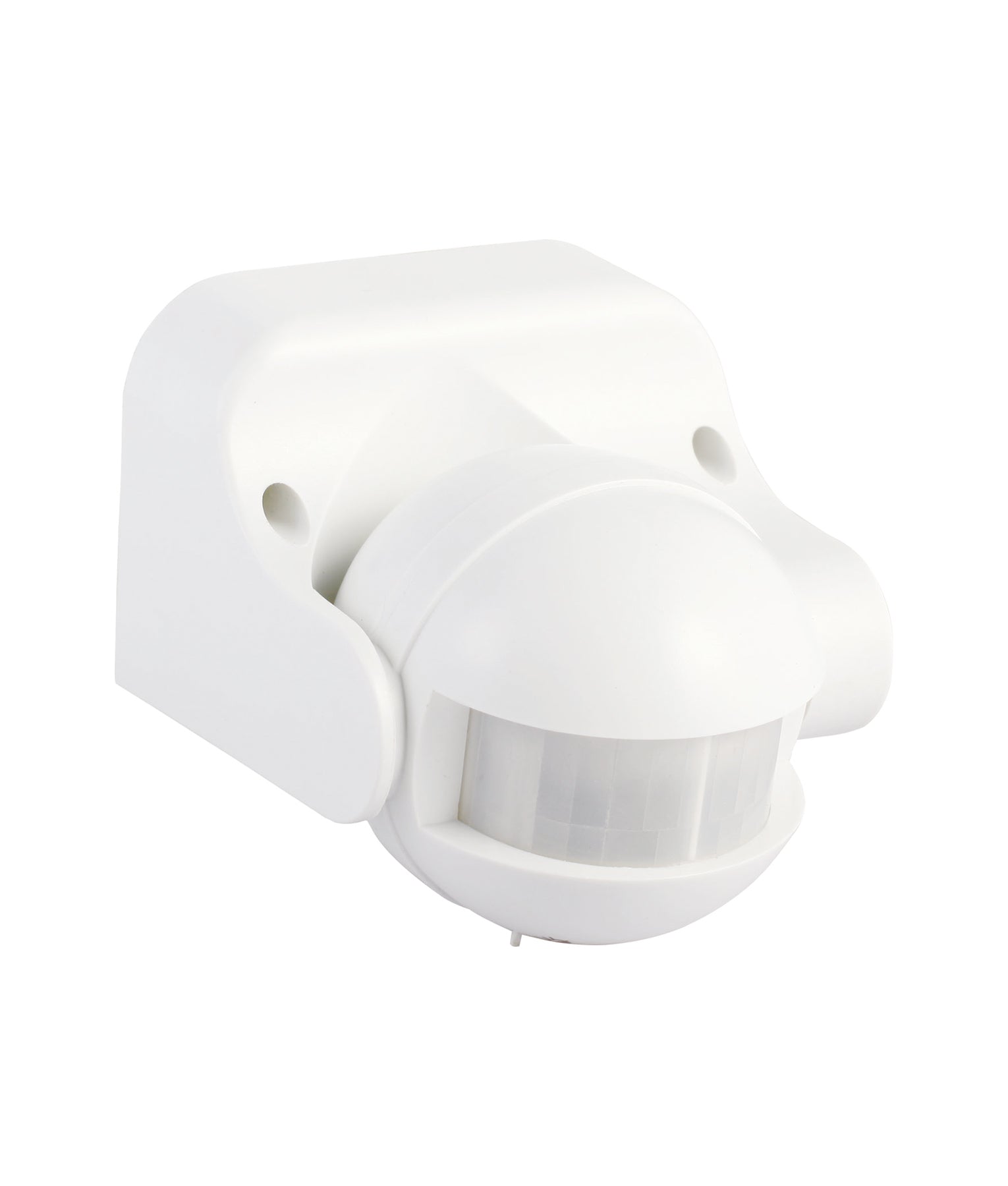

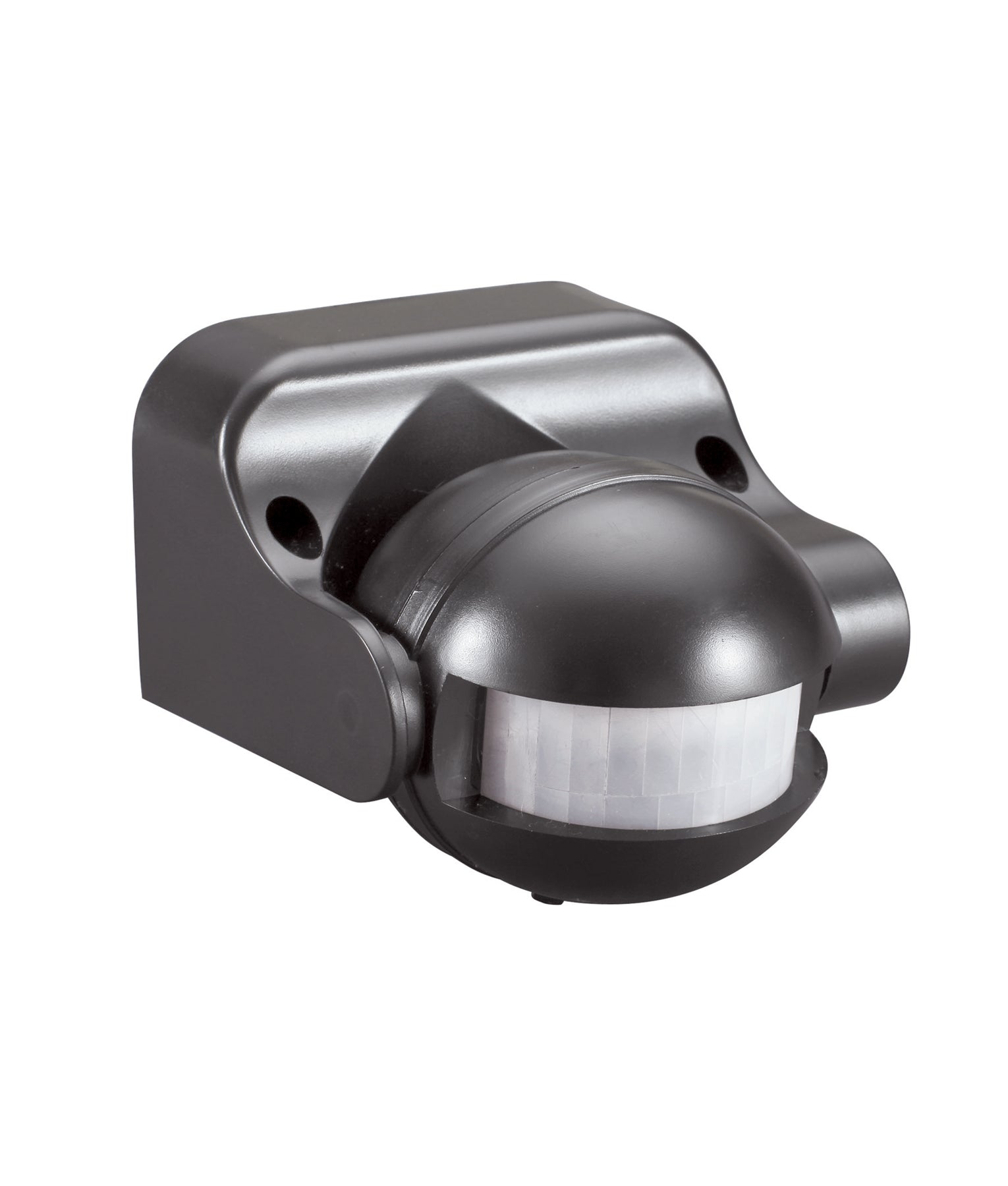

SENS012-013: Adjustable Infrared PIR Surface Mounted Sensors IP44
$20.00$24.65
Item is in stockHurry! Low inventoryItem is out of stock
Item is unavailable
Key Features:
- Input voltage: 220-240V 50/60Hz
- Surface mounted
- Housing: PC
- Detection range: 180°
- Detection distance: 12m max(<24°C)
- Detection motion speed: 0.6-1.5m/s
- Rated load: 1200W HAL/ 600W CFL/ 600W LED
- Time delay: min.10sec±3sec; max.15min±2min (restarts from last movement)
- Ambient light: <3-2000lux (adjustable)
- Ambient Temp: -20 to 40°C
- Working humidty: <93%RH
- Power consumption: approx. 0.5W
- Installation height: 1.8-2.5m
- 3 wired
- UV resistant
- Day/Night recognition
- Manual override
- IP rating: IP44
- Warranty: 5 year replacement warranty
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
Part No: SENS012
Description: SENSOR Adjustable Infrared Motion S/M WH 3 Wire 180D (Det Dist 12m max) (I/Height 1.8- 2.5m) IP44 WTY 5YR
Colour: White
Material: PC
Input Voltage: 220-240V 50/60Hz
Wattage: 0.5W

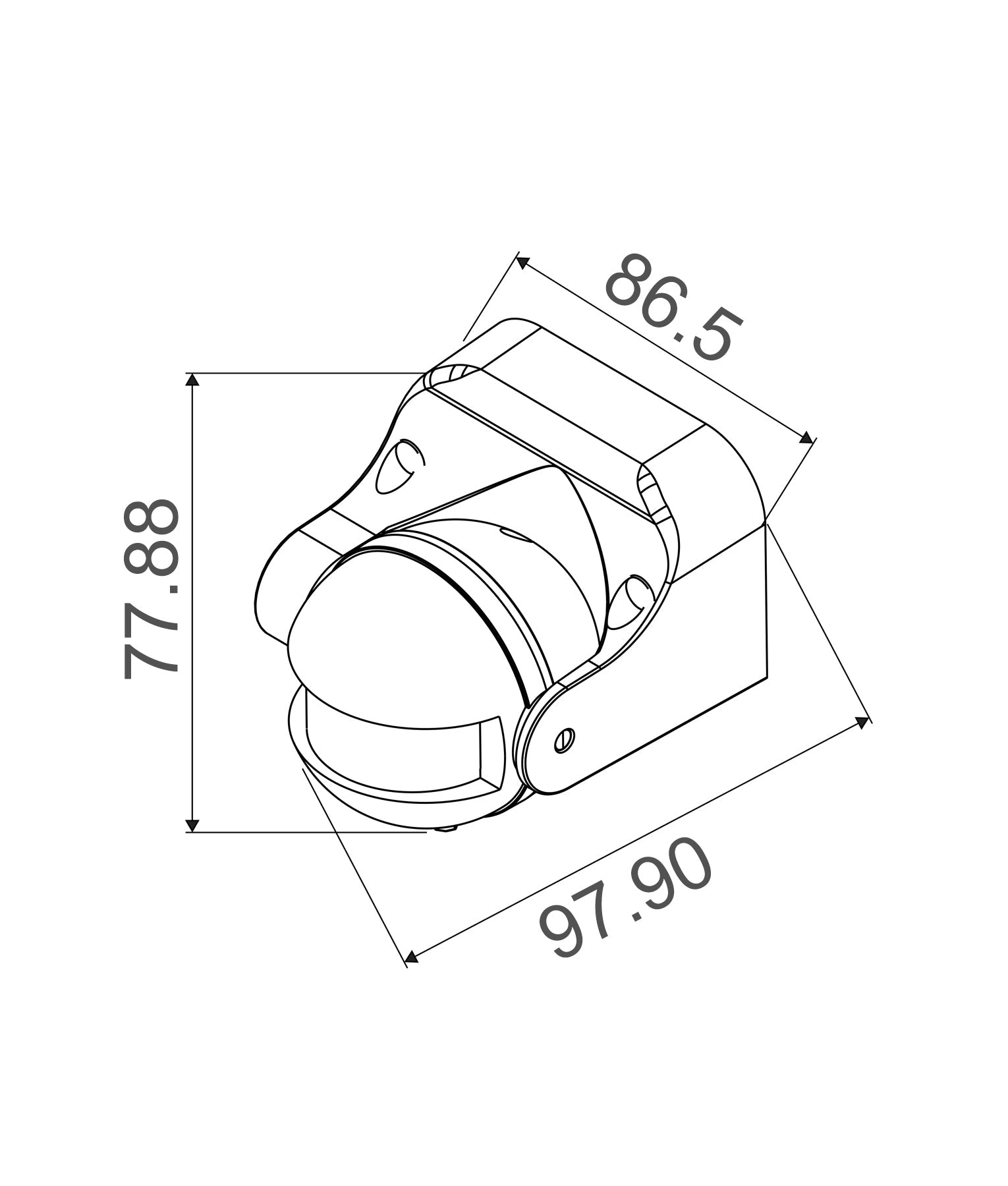

Diameter / Width: 86.5mm
Height: 77.88mm
Box Size: 9x8x11cm
Box Weight: 0.15kg
Carton Qty: 1/50
Brochure: SENS012-013 (661.29 KB)
Technical Spec: SENS012-013 (338.81 KB)
