Key Features:

• Input voltage: 240V AC 50/60Hz
• Inbuilt Constant Current LED driver
• Adjustable: 180° (90° up/down and left/right)
• Housing: powder coated aluminium
• Mounting bracket: aluminium
• Diffuser: clear glass with honeycomb filter
• Tri-CCT (3000K/ 4000K/ 5500K) in one fitting
• CCT inbuilt switch under back plate
• LED chips: 1616 LEDs
• CRI: ≥80
• Power factor: ≥0.9
• Ambient temperature: -10 to 40°C
• Not suitable for dimming
• Suitable for 2 way switching
• IP rating: IP65
• Warranty: 2 year replacement warranty

Sensor Technical Spec:

• Sensor type: PIR sensor
• Installation height: recommended 2-2.5m
• Detection angle: 120°
• Detection area: max.10m
• Detection range (ØxH): max.10m when installed 2-2.5m
• Time delay: 8±5 sec to 12±2 min (adjustable)
• Manual override: yes

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.

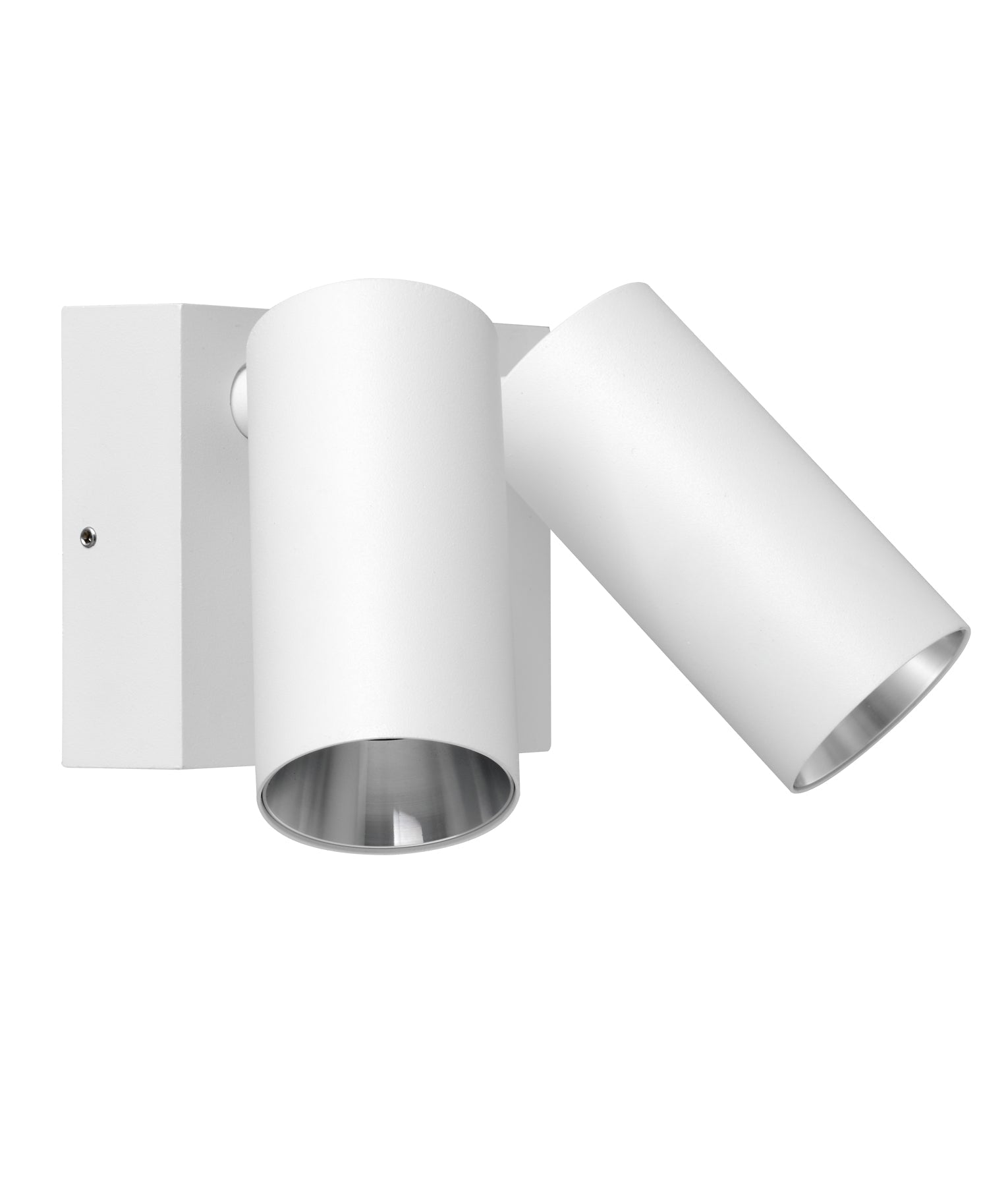

Part No: SEC08
Description: D/ADJ Pillar LED Matt Wh P/Coated Aluminium 3K / 4K/ 5.5K (2 x 850 Lm) IP65 16W
Input Voltage: 220-240V AC
Wattage: 2x8W
Kelvin: 3000K / 4000K / 5500K
Lumens: 2x760lm / 2x800lm / 2x850lm
Power Factor: >0.9
CRI: >80
Box Size: 16x13x13cm
Box Weight: 1.2kg

Brochure: SEC05-10 (566.55 KB)
Technical Spec: SEC08-10 (2.4 MB)
IES: SEC05-10 (9.38 KB)
Technical Spec: SEC08S-10S (14.01 MB)
