Key Features:

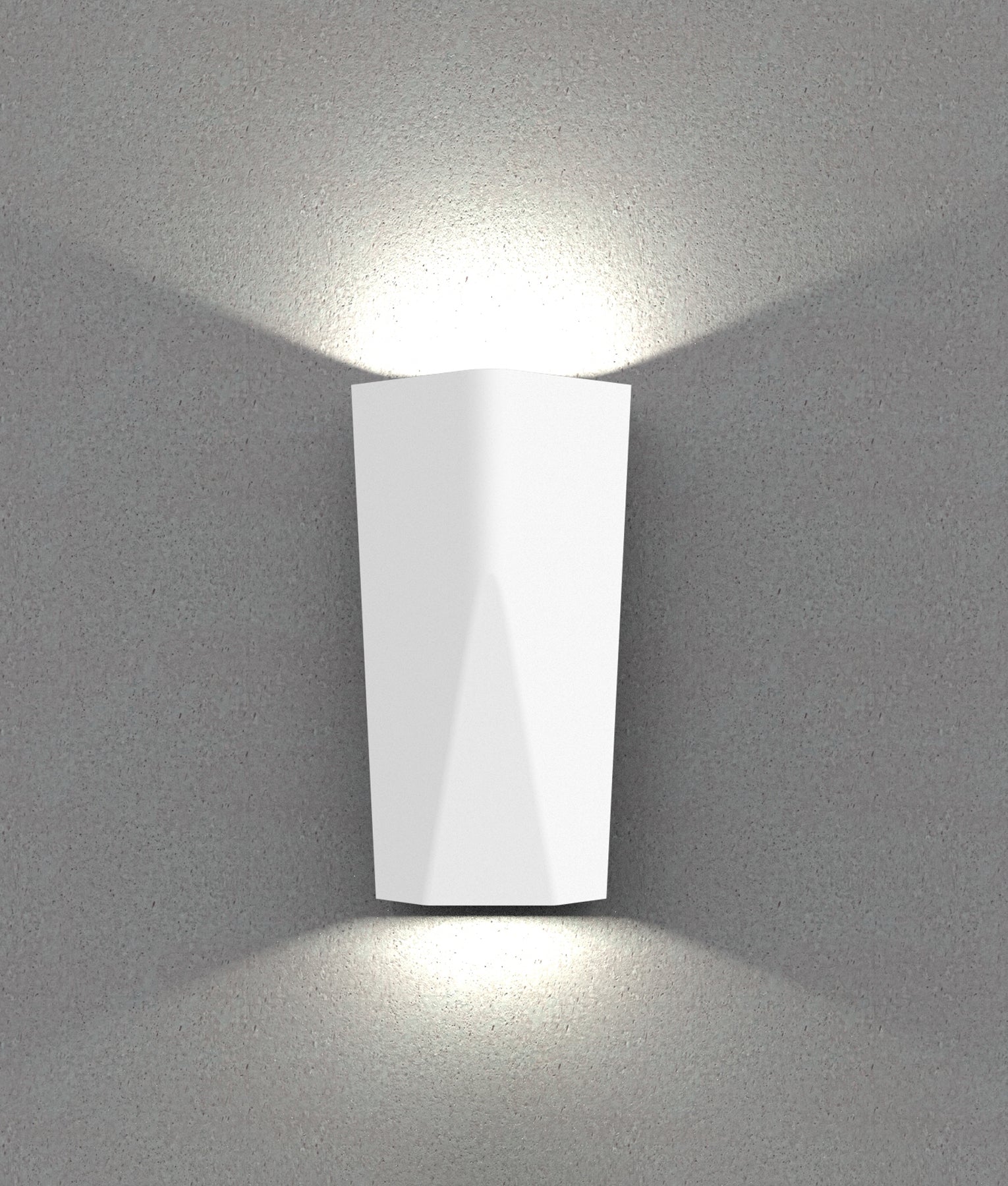

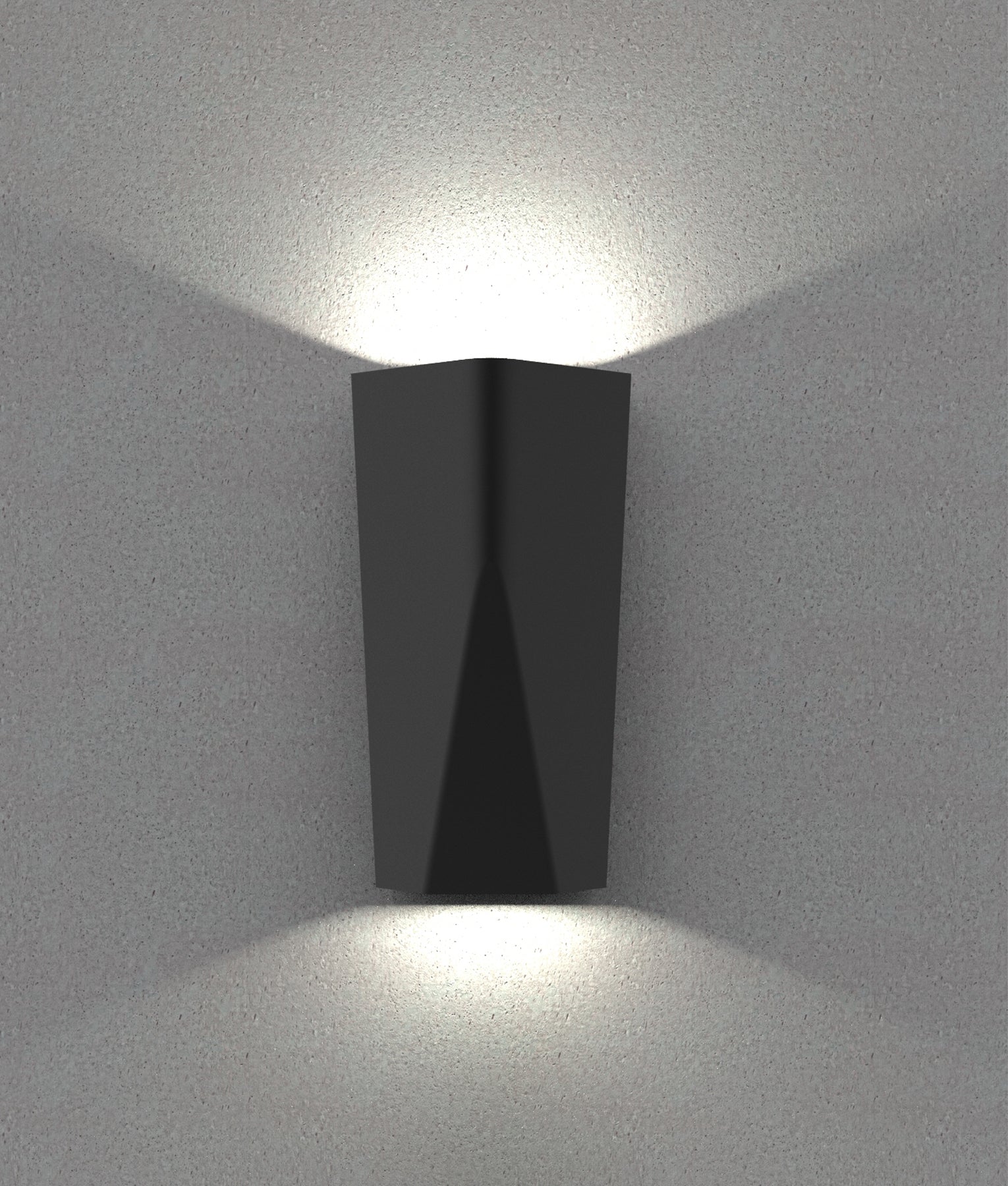

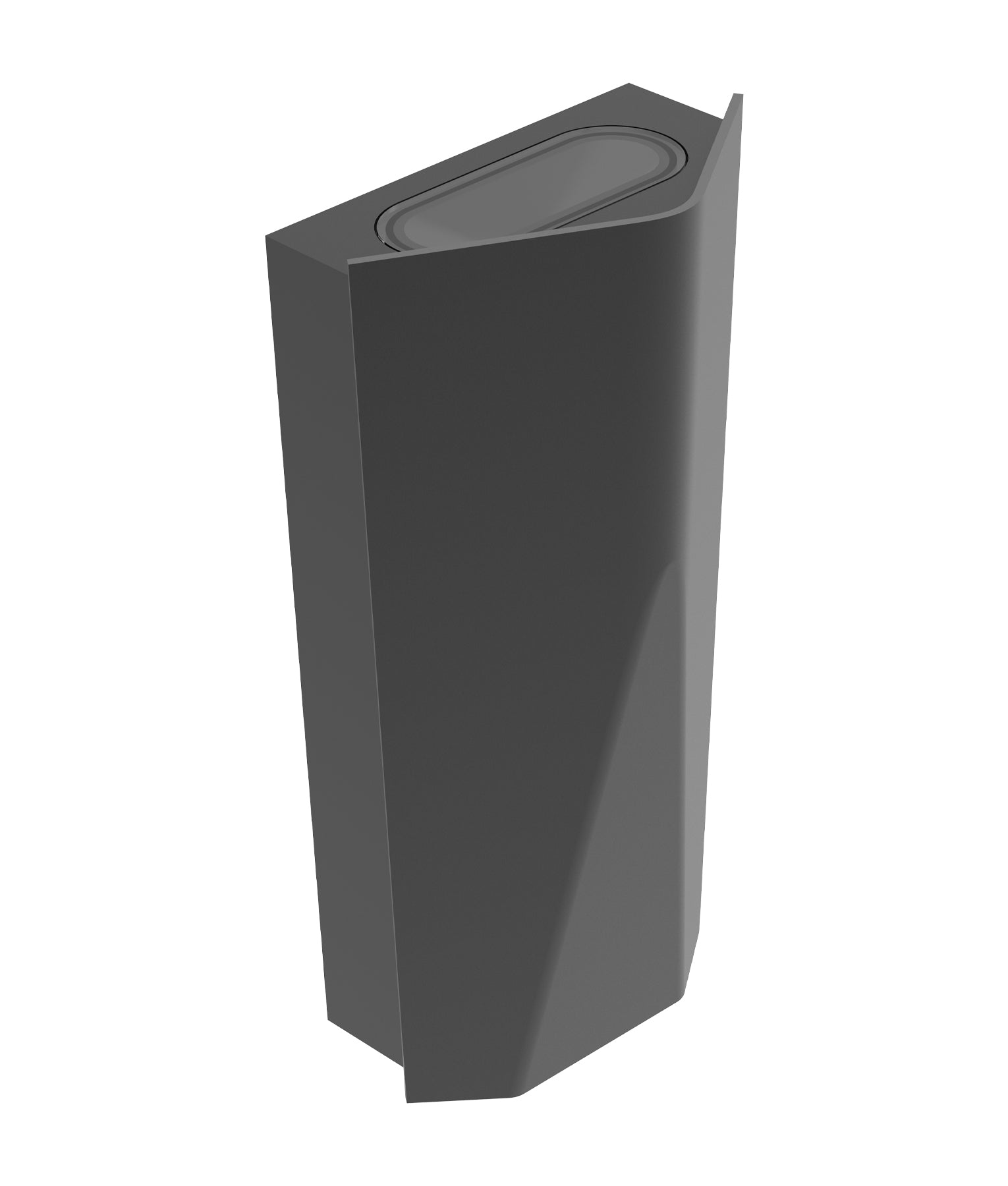

• Exterior Surface mounted up/down LED wall lights
• Input voltage range: 100-240V AC 50/60Hz
• Housing: powder coated aluminium
• Diffuser: clear acrylic

• LED chip: 8pcs 3030
• Tri-CCT (3000K / 4000K / 6500K) in one fitting
• CCT switch inside the fitting
• Power factor: 0.9
• CRI: >80
• 2 stickers included which allow narrowing of beam angle at both or either end
• Beam angle: without sticker is 67.6° and with the sticker is 63.6° or 65.1°
• Ambient temperature: -20 to 40°C
• Suitable for 2-way switching
• Suitable for use with PIR or Microwave sensors

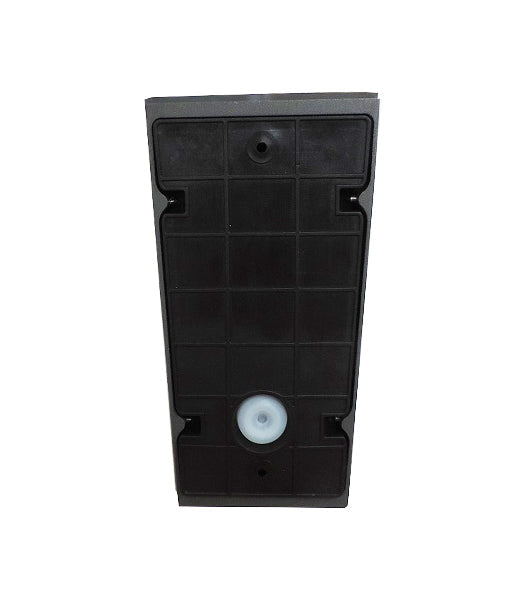

• Back plate: L17mm x W9mm
• IP rating: IP65
• Warranty: 3 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.

Part No: WIGTRI1

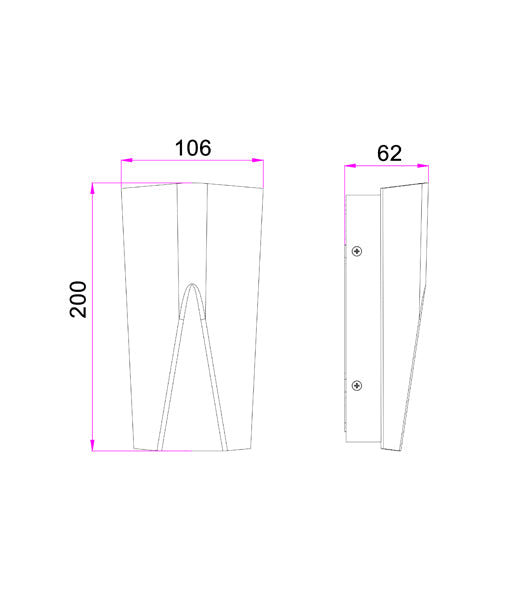

Description: WALL S/M LED 240V 11W TRI 3K/4K/6.5K 297 Lm/ 351 Lm/ 294 Lm IP65 Wedge UP/DN Dark Grey 67.6D Stickers incl W106 x H200 x D62mm WTY 3YR

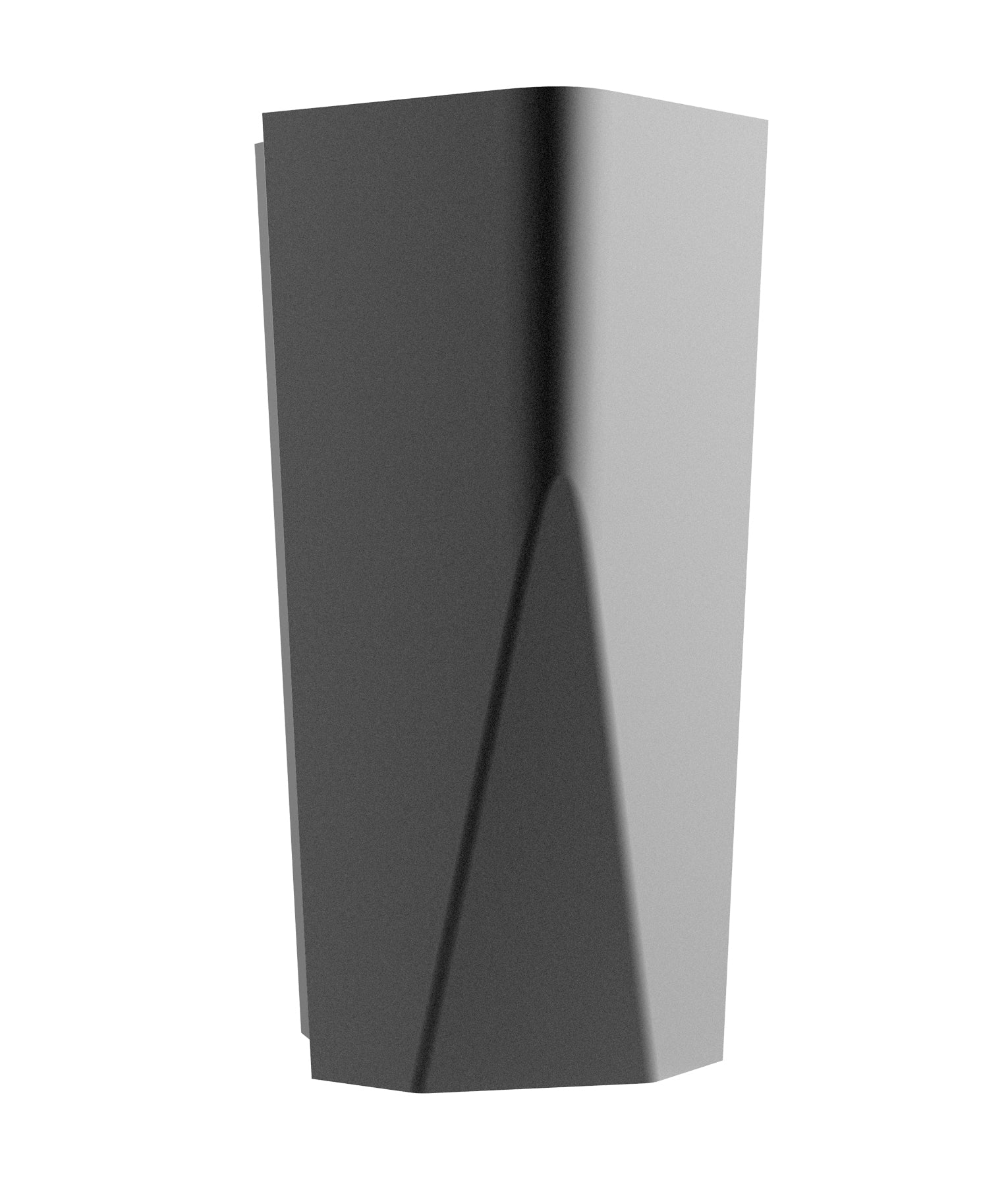

Colour: Dark Grey
Material: Housing: powder coated aluminium; Diffuser: clear acrylic
Input Voltage: 100-240V AC 50/60Hz
Wattage: 11W
Kelvin: 3000K / 4000K / 6500K
Lumens: 297lm / 351lm / 294lm
Beam Angle: 67.6 / 63.6 / 65.1 degree
Power Factor: 0.9
CRI: >80
Diameter / Width: 106mm
Height: 200mm
Box Size: 21x21x7.5cm
Box Weight: 0.8kg
Carton Qty: 1/8

Brochure: WIGTRI1-2 (722.12 KB)
Technical Spec: WIGTRI1-2 (728.24 KB)
IES: WIGTRI1-2_3000K.IES (9.35 KB)
IES: WIGTRI1-2_4000K.IES (9.35 KB)
IES: WIGTRI1-2_6500K.IES (9.35 KB)
